WINTERS PFP-25 Stainless Steel Pressure Gauge with Liquid Filled Design and NEMA 4X / IP66 Rating for Industrial Applications
WINTERS PFP-25 Stainless Steel Pressure Gauge with Liquid Filled Design and NEMA 4X / IP66 Rating for Industrial Applications
WINTERS PFP-25 Stainless Steel Pressure Gauge with Liquid Filled Design and NEMA 4X / IP66 Rating for Industrial Applications
WINTERS PFP-25 Stainless Steel Pressure Gauge with Liquid Filled Design and NEMA 4X / IP66 Rating for Industrial Applications
Specifications
Brand Name :
WINTERS
Model Number :
PFP-25-T-S-A-4Z
MOQ :
1
Price :
48USD
Payment Terms :
T/T
Supply Ability :
1pc 1-2week
Delivery Time :
1-2week
Material :
Stainless Steel, Brass
Application :
Industrial process control, HVAC, Hydraulic systems
Calibration :
Factory calibrated, field adjustable
Operatingtemperature :
-20°C to 80°C
Mountingoptions :
Panel mount, Pipe mount
Responsetime :
Less than 1 second
Outputsignal :
4-20 mA, 0-10 V, Digital
Ingressprotection :
IP65
Measurementrange :
0 to 1000 psi
Powersupply :
24 V DC
Productname :
Pressure Measurement Instruments
Pressuretype :
Gauge, Absolute, Differential
Connectiontype :
Threaded, Flanged
Displaytype :
LCD, LED
Accuracy :
±0.25% of full scale
Description
WINTERS PFP-25-T-S-A-4Z

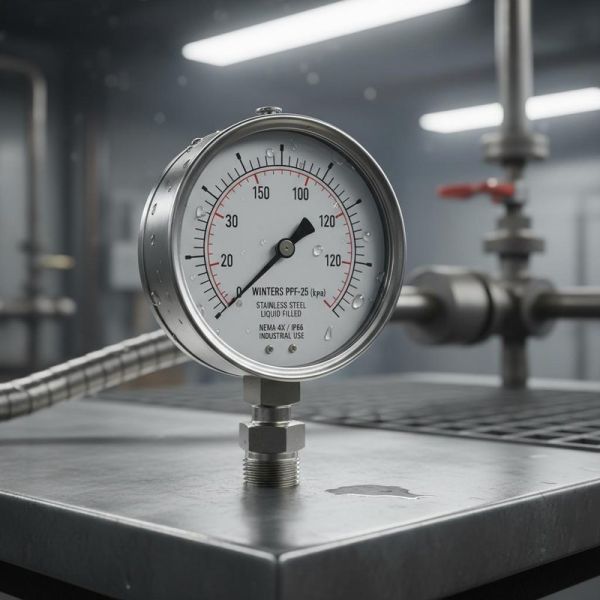

WINTERS PFP-25 All Stainless Steel Pressure Gauge 63mm. Premium stainless steel liquid filled pressure gauge designed for demanding industrial applications with exceptional durability and precision.
Product Specifications
Model PFP-25 Type
Dial Size 2.5" (63 mm)
Case Material AISI 304 Stainless Steel
Wetted Parts 316 Stainless Steel or Brass
Lens Material Polycarbonate (High pressure BSP(G) and HP: Tempered safety glass)
Bezel AISI 304 Stainless Steel Bayonet Ring
Dial White aluminum with black and red markings
Pointer Black anodized aluminum with micrometer adjustable screw
Accuracy ±1.5% of Full Scale (ASME B40.100 compliant; EN837-1 available)
Connection 1/4" NPT male (Back/Bottom/Panel mount options)
Fill Liquid Glycerin (Dry case available)
Ambient Temperature (Dry) -40°F to 250°F (-40°C to 120°C)
Ambient Temperature (Glycerin Filled) -4°F to 150°F (-20°C to 65°C)
Process Temperature -40°F to 250°F (-40°C to 120°C)
Enclosure Rating NEMA 4X / IP66 (EN60529-1)
Over-Pressure Limit 25% for pressures ≤1,450 PSI (9,998 kPa); 15% for pressures ＞1,500 PSI
Under & Overload Stops Incorporated
Ventable Plug Included (Bottom mount)
Restricted Orifice Standard on dual scale (Optional on single scale)
Key Features
  • All stainless steel construction for maximum corrosion resistance
  • Liquid filled design for vibration and pulsation resistance
  • Multiple mounting options for flexible installation
  • High visibility dial with precise micrometer adjustable pointer
  • Rugged NEMA 4X / IP66 rated enclosure for harsh environments
Compliance & Warranty
Compliance: ASME B40.100; EN837-1 (available); CRN registered
Warranty: 5 Years
