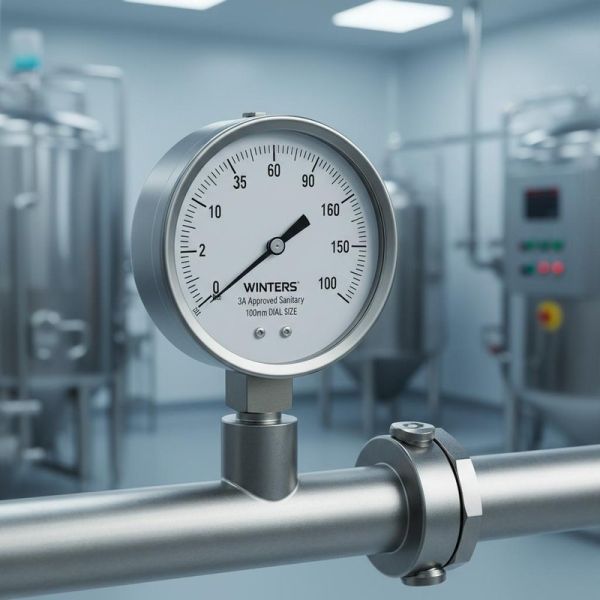

WINTERS 3A Approved Sanitary Pressure Gauge with 316L Stainless Steel and 100mm Dial Size for Industrial Use
WINTERS 3A Approved Sanitary Pressure Gauge with 316L Stainless Steel and 100mm Dial Size for Industrial Use
WINTERS 3A Approved Sanitary Pressure Gauge with 316L Stainless Steel and 100mm Dial Size for Industrial Use
WINTERS 3A Approved Sanitary Pressure Gauge with 316L Stainless Steel and 100mm Dial Size for Industrial Use
Specifications
Brand Name :
WINTERS
Model Number :
PSQ-40-T-S-A-20 0-10KG/CM2/PSI
MOQ :
1PC
Price :
200usd
Payment Terms :
T/T
Supply Ability :
1PC 6-8WEEK
Delivery Time :
6-8WEEK
Operatingtemperature :
-40°C to 85°C
Connectiontype :
Threaded, Flanged
Pressuretype :
Gauge, Absolute, Differential
Responsetime :
≤ 1 second
Mountingoptions :
Panel, Wall, Pipe
Displaytype :
LCD, LED
Powersupply :
24 V DC
Accuracy :
±0.25%
Protectionrating :
IP65, IP67
Outputsignal :
4-20 mA, 0-10 V, Digital
Application :
Industrial, HVAC, Automotive, Oil & Gas
Material :
Stainless Steel, Brass
Productname :
Pressure Measurement Instruments
Measurementrange :
0 to 1000 psi
Calibration :
Factory Calibrated, Field Calibratable
Description
WINTERS Pressure Gauge PSQ-40-T-S-A-20 0-10KG/CM2/PSI
WINTERS PSQ-40 Sanitary Pressure Gauge - 100mm radial dial sanitary pressure gauge with 3A approval, designed for demanding food, beverage, and pharmaceutical applications requiring clean-in-place compatibility.
Key Specifications
Parameter Specification
Model WINTERS PSQ-40 Type
Dial Size 4" (100 mm)
Accuracy (25°C) ±1.0% of Full Scale (ANSI/ASME Grade 1A)
Case Material AISI 304 Stainless Steel with rear blowout plug
Wetted Parts 316L Stainless Steel (Ra≤0.8μm surface roughness, welded diaphragm)
Pressure Range 0...1000 psi (vacuum ranges available: -1...0 bar / 30" Hg Vac)
Process Connection 0.75" / 1.5" / 2" Tri-Clamp (sanitary); 1/2" NPT (optional)
Construction & Materials
Component Specification
Lens Polycarbonate (standard); Tempered safety glass (optional)
Bezel AISI 304 Stainless Steel Crimp-On Ring
Dial White aluminum with black markings
Pointer Black painted aluminum with zero-setting screw
Fill Liquid Food-grade Glycerin (standard); Silicone oil (optional)
Performance & Environmental
Parameter Range
Ambient Temperature -20°C to 70°C (-4°F to 156°F)
Process Temperature -20°C to 120°C (-4°F to 248°F)
Storage Temperature -40°C to 70°C (-40°F to 156°F)
Temperature Drift Max ±0.04% FS/°C (referenced at 25°C)
Enclosure Rating IP65 (EN 60529)
Over-Pressure Limit 25% of Full Scale (≤1,450 PSI); 15% for pressures ＞1,500 PSI
Special Features
  • Clean-In-Place (CIP) & Steam-In-Place (SIP) compatible
  • Electro-polished finish for superior cleanability
  • Sanitary liquid filled design
  • Zero-setting screw for calibration
  • Rear blowout plug safety feature
Certifications & Warranty:
3A Approved • ASME B40.100 • CRN Registered • RoHS Compliant • 5-Year Warranty
