WINTERS TBM-30 Radial Bimetal Thermometer with IP65 Protection 304 Stainless Steel and Dual-Scale Display
WINTERS TBM-30 Radial Bimetal Thermometer with IP65 Protection 304 Stainless Steel and Dual-Scale Display
WINTERS TBM-30 Radial Bimetal Thermometer with IP65 Protection 304 Stainless Steel and Dual-Scale Display
WINTERS TBM-30 Radial Bimetal Thermometer with IP65 Protection 304 Stainless Steel and Dual-Scale Display
Specifications
Brand Name :
WINTERS
Model Number :
TBM-30-T-A-L-2-0030-2B-B28-SU
MOQ :
1
Price :
60usd
Payment Terms :
T/T
Supply Ability :
1PC 1-2WEEK
Delivery Time :
1-2WEEK
Accuracy :
±0.25% of full scale
Outputinterface :
RS485, HART, Modbus
Calibration :
Factory calibrated, Field calibratable
Operatingtemperature :
-40°C to 85°C
Displaytype :
LCD, LED
Connectiontype :
Threaded, Flanged
Protectionrating :
IP65, IP67
Powersupply :
24 V DC
Material :
Stainless Steel, Brass
Responsetime :
≤ 1 ms
Pressuretype :
Gauge, Absolute, Differential
Outputsignal :
4-20 mA, 0-10 V, Digital
Measurementrange :
0 to 1000 psi
Application :
Industrial, HVAC, Automotive
Productname :
Pressure Measurement Instruments
Description
WINTERS TBM-30-T-A-L-2-0030-2B-B28-SU Radial Bimetal Thermometer IP65

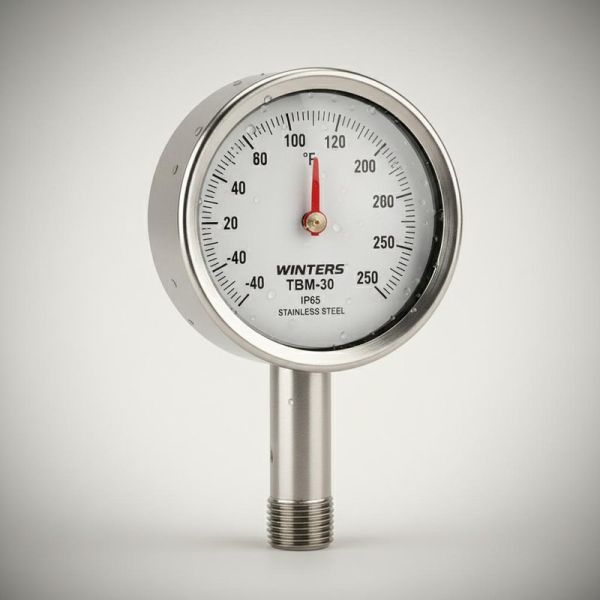

The WINTERS TBM-30 is a high-quality bimetal thermometer designed for reliable temperature measurement in demanding industrial environments. Featuring a 3-inch dial and hermetically sealed construction, this instrument delivers accurate readings while withstanding harsh conditions.
Key Features
  • Dual-scale display (-40°F to 500°F / -40°C to 260°C)
  • IP65 protection rating for dust and water resistance
  • Anti-parallax dial for reduced reading errors
  • External recalibrator screw for on-site calibration
  • 304 stainless steel construction for durability
  • Flexible mounting options (back, bottom, or adjustable angle)
  • 5-year limited warranty
Technical Specifications
Parameter Specification Unit Notes
Temperature Range -40°F to 500°F (-40°C to 260°C) °F/°C Dual-scale display
Accuracy ±1% of Full Scale % FS ASME B40.200 compliant
Dial Size 3 inch (75 mm) inch/mm Anti-parallax design
Stem Length Options 2.5", 4", 6", 9", 12" inch Custom lengths available
Process Connection 1/2 inch NPT Male inch Compatible with thermowells
Protection Class IP65 - Dust and water jet proof
Housing Material 304 Stainless Steel - Hermetically sealed
Response Time ~10 seconds seconds Varies with stem length and medium
Applications & Compatibility
Primary Applications: General industrial processes, HVAC systems, wastewater treatment, and various temperature measurement scenarios.
Thermowell Compatibility: Designed to work with TBR or TWF thermowells for harsh medium measurement applications.
Standards & Certifications
Complies with ASME B40.200 standards and RoHS environmental requirements.
Warranty: Backed by a 5-year limited warranty from WINTERS.
