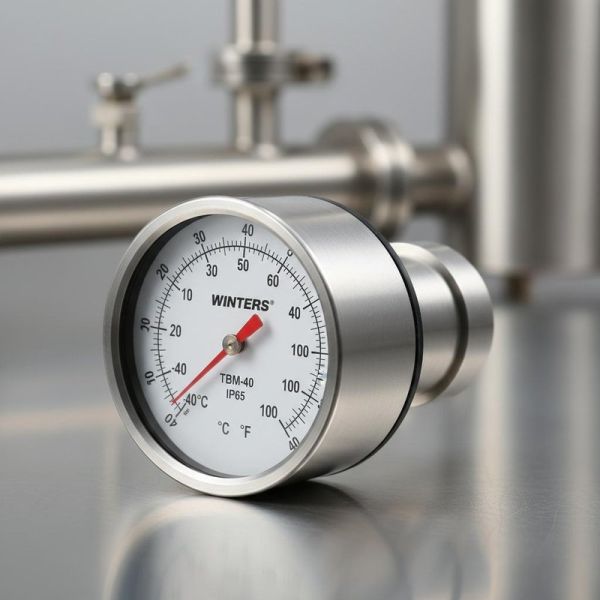

WINTERS TBM-40 Radial Bimetallic Thermometer with IP65 Protection, 304 Stainless Steel Construction, and Dual-Scale Display
WINTERS TBM-40 Radial Bimetallic Thermometer with IP65 Protection, 304 Stainless Steel Construction, and Dual-Scale Display
WINTERS TBM-40 Radial Bimetallic Thermometer with IP65 Protection, 304 Stainless Steel Construction, and Dual-Scale Display
WINTERS TBM-40 Radial Bimetallic Thermometer with IP65 Protection, 304 Stainless Steel Construction, and Dual-Scale Display
Specifications
Brand Name :
WINTERS
Model Number :
TBM-40-T-D-T-2-0040-ZM-B29
MOQ :
1pc
Price :
66USD
Payment Terms :
T/T
Supply Ability :
1pc 1-2WEEK
Delivery Time :
1-2WEEK
Mountingoptions :
Panel mount, Pipe mount, Wall mount
Operatingtemperature :
-40°C to 85°C
Material :
Stainless Steel, Brass
Protectionrating :
IP65, IP67
Connectiontype :
Threaded, Flanged
Measurementrange :
0 to 1000 psi
Powersupply :
24 V DC
Accuracy :
±0.25% of full scale
Outputsignal :
4-20 mA, 0-10 V, Digital
Calibration :
Factory calibrated, Field calibratable
Responsetime :
Less than 1 second
Pressuretype :
Gauge, Absolute, Differential
Productname :
Pressure Measurement Instruments
Displaytype :
LCD, LED
Application :
Industrial, HVAC, Automotive, Oil & Gas
Description
WINTERS TBM-40-T-D-T-2-0040-ZM-B29 Radial Bimetallic Thermometer IP65
High-performance bimetallic thermometer designed for reliable temperature measurement in demanding industrial environments. Features hermetically sealed construction and IP65 protection for dust and water resistance.
Key Features
  • Dual-scale display (-40°F to 500°F / -40°C to 260°C)
  • IP65 protection rating for dust and water resistance
  • External recalibrator screw for on-site calibration
  • Anti-parallax dial to reduce reading errors
  • 304 stainless steel construction throughout
  • 5-year limited warranty
Technical Specifications
Basic Information
Parameter Specification
Brand WINTERS
Model TBM-30
Product Type Bimetallic Thermometer
Sensing Element Bi-metallic coil (304 stainless steel)
Application General purpose industrial, HVAC, process, wastewater
Performance Parameters
Parameter Specification
Temperature Range -40°F to 500°F (-40°C to 260°C)
Accuracy ±1% of Full Scale (ASME B40.200 compliant)
Calibration External recalibrator screw
Response Time Typical 10 seconds
Mechanical Parameters
Parameter Specification
Dial Size 3 inch (75 mm) anti-parallax
Stem Length 2.5", 4", 6", 9", 12" (custom lengths available)
Stem Material 304 Stainless Steel (welded)
Stem Diameter 0.25 inch (6.35 mm)
Process Connection 1/2 inch NPT Male
Connection Type Back, bottom, or adjustable angle mounting
Housing Material 304 Stainless Steel (hermetically sealed)
Dial Protection Glass lens
Weight Approx. 0.5 lbs (0.23 kg)
Environmental & Certification
Parameter Specification
Operating Temperature -40°F to 250°F (-40°C to 121°C)
Storage Temperature -40°F to 250°F (-40°C to 121°C)
Protection Class IP65 (IEC 60529 compliant)
Certifications ASME B40.200, RoHS
Warranty 5-year limited warranty
Compatible with TBR or TWF thermowells for harsh medium measurement applications. Flexible mounting options and customizable stem lengths available to suit specific installation requirements.
