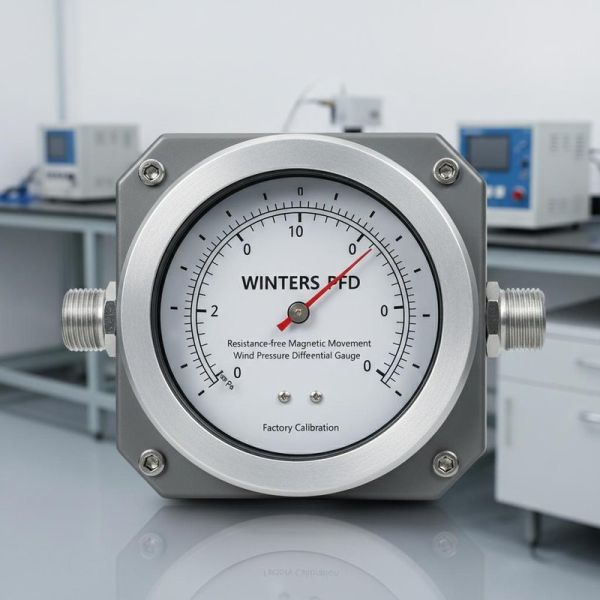

WINTERS PFD Resistance-free Magnetic Movement Wind Pressure Differential Gauge with IP67 Enclosure and Factory Calibration
WINTERS PFD Resistance-free Magnetic Movement Wind Pressure Differential Gauge with IP67 Enclosure and Factory Calibration
WINTERS PFD Resistance-free Magnetic Movement Wind Pressure Differential Gauge with IP67 Enclosure and Factory Calibration
WINTERS PFD Resistance-free Magnetic Movement Wind Pressure Differential Gauge with IP67 Enclosure and Factory Calibration
Specifications
Brand Name :
WINTERS
Model Number :
PFD series
MOQ :
1PC
Price :
80USD
Payment Terms :
T/T
Supply Ability :
1PC 1-2WEEK
Delivery Time :
1-2WEEK
Connectiontype :
Threaded, Flanged
Mountingoptions :
Panel mount, Pipe mount, Wall mount
Material :
Stainless Steel, Brass
Operatingtemperature :
-20°C to 85°C
Pressuretype :
Gauge, Absolute, Differential
Displaytype :
LCD, LED
Calibration :
Factory calibrated, Field calibratable
Accuracy :
±0.1% of full scale
Ingressprotection :
IP65, IP67
Responsetime :
≤ 1 ms
Measurementrange :
0 to 1000 psi
Powersupply :
12-36 V DC
Outputsignal :
4-20 mA, 0-10 V, digital
Application :
Industrial process control, HVAC, Hydraulic systems
Productname :
Pressure Measurement Instruments
Description
WINTERS PFD Wind Pressure Differential Gauge
Professional resistance-free magnetic differential gauges designed for precise air and gas pressure measurement in industrial applications.
Product Specifications
Parameter Standard 4" PFD Compact 2-1/16" PFD
Model PFD (WinAIR Differential Gauge) PFD (WinAIR Compact Differential Gauge)
Type Resistance-free Magnetic Differential Gauge for Air/Non-corrosive Gases Resistance-free Magnetic Differential Gauge for Air/Non-combustible Gases
Dial Size 4" (100 mm) 2-1/16" (52.4 mm)
Case Material Die-cast Black Aluminum Glass-filled Nylon (Black)
Lens Polycarbonate Polycarbonate
Bezel Threaded Die-cast Black Aluminum Threaded Die-cast Black Aluminum
Dial White Aluminum with Black/Red Markings White Aluminum with Black Markings
Pointer Black Anodized Aluminum Black Anodized Aluminum
Accuracy ±2% of Full Scale ±5% of Full Scale
Movement Resistance-free & Magnetic Resistance-free & Magnetic
Process Connection 1/8" NPTF (High/Low Pressure Taps, Side/Back) 3/16" Barbed (for ID Tubing)
Mounting 3 Mounting Adapters (Included) Mounting Bracket (Included)
Re-zero Adjustment Easily Accessible Screw Easily Accessible Screw
Ambient/Process Temperature -40°F to 140°F (-40°C to 60°C) 14°F to 140°F (-10°C to 60°C)
Over-Pressure Limit Max System Pressure: 150 PSI (10 bar) Max System Pressure: 150 PSI (10 bar)
Enclosure Rating IP67 IP67
Wetted Parts Aluminum (Standard) Nylon
Compliance ASME B40.100; EN837-1 ASME B40.100; EN837-1
Warranty 5 Years 5 Years
Pressure Range 0-5 inH2O to 0-25 kPa (0-12.5 mbar to 0-250 mbar) 0-5 inH2O (0-1.25 kPa)
Key Features
  • Resistance-free Magnetic Movement: Ensures long-term accuracy and reliability
  • IP67 Enclosure Rating: Protected against dust and temporary immersion
  • Easy Re-zero Adjustment: Convenient calibration access
  • Complete Mounting Solutions: All necessary hardware included
  • Industry Compliance: Meets ASME B40.100 and EN837-1 standards
  • 5-Year Warranty: Backed by manufacturer confidence
Professional Industrial Solution
The WINTERS PFD Wind Pressure Differential Gauge provides reliable, factory-calibrated measurement for demanding industrial environments with resistance-free magnetic movement and robust IP67 protection.
