L329-A2602 Flare-mouth Radar Level Meter Has Been Further Optimized He New Fast Microprocessor Can Perform Higher-speed Signal Analysis And Processin
L329-A2602 Flare-mouth Radar Level Meter Has Been Further Optimized He New Fast Microprocessor Can Perform Higher-speed Signal Analysis And Processin
L329-A2602 Flare-mouth Radar Level Meter Has Been Further Optimized He New Fast Microprocessor Can Perform Higher-speed Signal Analysis And Processin
L329-A2602 Flare-mouth Radar Level Meter Has Been Further Optimized He New Fast Microprocessor Can Perform Higher-speed Signal Analysis And Processin
Specifications
Brand Name :
CAF
Model Number :
L329-A2602 flare-mouth radar level meter
Certification :
CO
Place of Origin :
China
MOQ :
1
Price :
130-250USD
Payment Terms :
T/T
Supply Ability :
99pcs/2-4weeks
Delivery Time :
2-4weeks
Packaging Details :
Standard cardboard box packaging
Operatingtemperature :
-40°C to 125°C
Outputsignal :
4-20 mA, 0-10 V, Digital
Measurementtype :
Gauge, Absolute, Differential
Outputinterface :
RS485, HART, Modbus
Powersupply :
24 V DC
Responsetime :
Less than 1 second
Accuracy :
±0.1% to ±1%
Pressuretype :
Gauge, Absolute, Differential
Connectiontype :
1/4 inch NPT
Material :
Stainless Steel, Brass
Application :
Industrial, HVAC, Automotive, Oil & Gas
Description
  1. Antenna size is small, making installation easy; Non-contact radar, no wear, no pollution.
  2. Almost unaffected by corrosion or foam; It is almost unaffected by water vapor, temperature, and pressure changes in the atmosphere.
  3. Severe dust environments have little impact on the operation of high-frequency level meters.
  4. Shorter wavelength provides better reflection on tilted solid surfaces.
  5. Small beam angle concentrates energy, enhancing echo capability while helping to avoid interference
Item Specification
Model L329-A2602

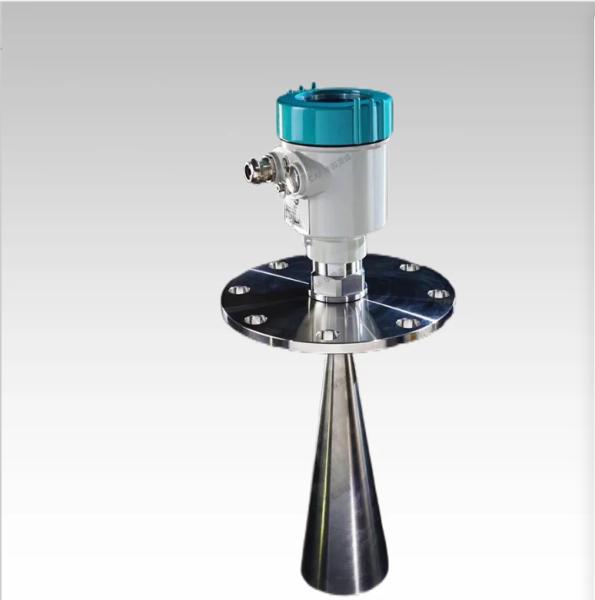

Type Flare-mouth (horn antenna) radar level meter
Typical Applications Corrosive liquids, solvents, acids, alkalis, and other industrial media level measurement
Measuring Range 0 ~ 10 m (customizable up to 30/50 m)
Operating Frequency 26 GHz
Measurement Accuracy ±5 mm
Repeatability ≤±2 mm
Medium Temperature -40°C ~ +130°C
Process Pressure -0.1 MPa ~ 0.3 MPa
Process Connections Threaded (standard), Flange (DN50/DN80, optional)
Wetted Parts Material 316L stainless steel (standard; other materials available on request)
Protection Class IP67
Explosion-proof Rating Ex ia IIC T6 (optional)
Signal Output 4~20mA / HART (2-wire / 4-wire); RS485 / MODBUS (optional)
Power Supply 24VDC (standard)
Ambient Temperature -40°C ~ +70°C
Enclosure Material Die-cast aluminum alloy
Antenna Type Flare-mouth (horn) antenna
