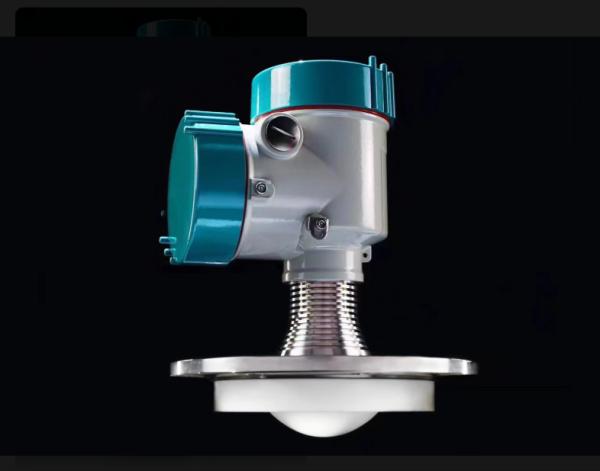

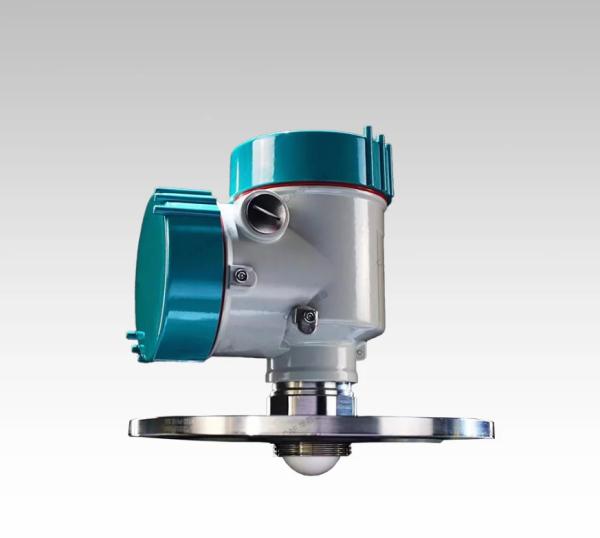

CAF L329-B802 Weak Acid And Alkali Corrosion Radar Level Gauge High-frequency FM Radar Signals, And The Frequency Of The Radar Signal Increases Linearly
CAF L329-B802 Weak Acid And Alkali Corrosion Radar Level Gauge High-frequency FM Radar Signals, And The Frequency Of The Radar Signal Increases Linearly
CAF L329-B802 Weak Acid And Alkali Corrosion Radar Level Gauge High-frequency FM Radar Signals, And The Frequency Of The Radar Signal Increases Linearly
CAF L329-B802 Weak Acid And Alkali Corrosion Radar Level Gauge High-frequency FM Radar Signals, And The Frequency Of The Radar Signal Increases Linearly
CAF L329-B802 Weak Acid And Alkali Corrosion Radar Level Gauge High-frequency FM Radar Signals, And The Frequency Of The Radar Signal Increases Linearly
CAF L329-B802 Weak Acid And Alkali Corrosion Radar Level Gauge High-frequency FM Radar Signals, And The Frequency Of The Radar Signal Increases Linearly
Specifications
Brand Name :
CAF
Model Number :
CAF L329-B802 Weak Acid and Alkali Corrosion Radar Level Gauge
Certification :
CO
Place of Origin :
China
MOQ :
1
Price :
145-600USD
Payment Terms :
T/T
Supply Ability :
99pcs/2-4weeks
Delivery Time :
2-4weeks
Packaging Details :
Standard cardboard box packaging
Protectionrating :
IP65, IP67
Accuracy :
±0.1% FS
Connectiontype :
Threaded, Flanged
Measurementrange :
0 to 1000 psi
Application :
Industrial, HVAC, Automotive
Outputinterface :
RS485, HART, Modbus
Pressuretype :
Gauge, Absolute, Differential
Pressurerange :
0 to 10000 psi
Responsetime :
1 ms to 100 ms
Outputtype :
NPN, PNP, Relay
Operatingtemperaturerange :
-40°C to 85°C
Description

1. The L329-B80 series frequency-modulated radar level gauge has a measurement accuracy of up to ±1mm, with a small blind spot of 50mm.
2. Smaller antenna size, meeting the needs of measurement for more working scenarios.
3. Multiple lens antennas, smaller emission angles, more concentrated energy, stronger echo signals, and higher reliability compared to other radar products under the same industrial and mining conditions.
4. Stronger penetration, allowing normal use even when adhesion and condensation occur.
5. Wider dynamic signal range, making measurements more stable for low dielectric constants.
6. Multiple measurement modes, selectable material level or empty height display, current output can be forward or backward.
7. Smaller measurement blind spots, achieving good results even for small tank measurements.
8. High signal-to-noise ratio, ensuring better performance even under fluctuating conditions.
9. High frequency is the ** choice for measuring solid and low dielectric constant media.

Technical Specifications

Item Specification
Measuring Medium Non-corrosive liquid, slightly corrosive liquid
Measuring Range 0.1 m ~ 100 m
Process Connection DN80 Flange
Process Temperature -40°C ~ 110°C
Process Pressure -0.1 MPa ~ 1.6 MPa
Antenna Size & Type 32mm lens antenna
Antenna Material PTFE
Measurement Accuracy ±1 mm (within 35 m)

±5 mm (35 m ~ 100 m)
Protection Rating IP67
Center Frequency 80 GHz
Emission Angle 3°
Power Supply Two-wire: DC24V

Four-wire: DC12~24V / AC220V
Housing Material Aluminum / Stainless steel
Signal Output Two-wire: 4~20mA / HART

Four-wire: 4~20mA / RS485 MODBUS
