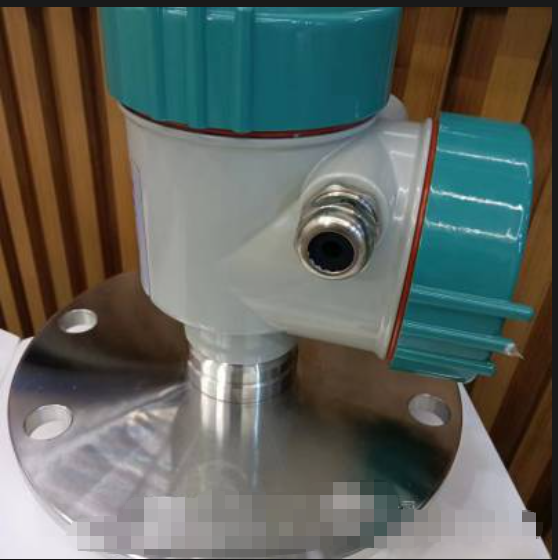

CAF L329-A2601 Rod-shaped Radar Level Gauge High-frequency Radar Level Measuring Instrument, With A Maximum Measurement Range Of Up To 80 Meters
CAF L329-A2601 Rod-shaped Radar Level Gauge High-frequency Radar Level Measuring Instrument, With A Maximum Measurement Range Of Up To 80 Meters
CAF L329-A2601 Rod-shaped Radar Level Gauge High-frequency Radar Level Measuring Instrument, With A Maximum Measurement Range Of Up To 80 Meters
CAF L329-A2601 Rod-shaped Radar Level Gauge High-frequency Radar Level Measuring Instrument, With A Maximum Measurement Range Of Up To 80 Meters
Specifications
Brand Name :
CAF
Model Number :
CAF L329-A2601
Certification :
CO
Place of Origin :
China
MOQ :
1
Price :
108-200USD
Payment Terms :
T/T
Supply Ability :
99pcs/2-4weeks
Delivery Time :
2-4weeks
Packaging Details :
Standard cardboard box packaging
Operatingtemperature :
-40°C to 125°C
Outputsignal :
4-20 mA, 0-10 V, Digital
Measurementtype :
Gauge, Absolute, Differential
Outputinterface :
RS485, HART, Modbus
Powersupply :
24 V DC
Responsetime :
Less than 1 second
Accuracy :
±0.1% to ±1%
Pressuretype :
Gauge, Absolute, Differential
Connectiontype :
1/4 inch NPT
Material :
Stainless Steel, Brass
Application :
Industrial, HVAC, Automotive, Oil & Gas
Description
  1. Antenna size is small, making installation easy; Non-contact radar, no wear, no pollution.
  2. Almost unaffected by corrosion or foam; It is almost unaffected by water vapor, temperature, and pressure changes in the atmosphere.
  3. Severe dust environments have little impact on the operation of high-frequency level meters.
  4. Shorter wavelength provides better reflection on tilted solid surfaces.
  5. Small beam angle concentrates energy, enhancing echo capability while helping to avoid interference
Item Specification
Typical Applications Various corrosive liquids, soil
Measuring Range 10 m
Frequency 26 GHz
Measurement Accuracy 5 mm
Medium Temperature -40°C ~ 130°C
Process Pressure -0.1 MPa ~ 0.3 MPa
Process Connection Threaded, Flange (Optional)
Protection Class IP67
Explosion-proof Rating Ex ia IIC T6 (Optional)
Signal Output 4~20mA / HART (2-wire / 4-wire); RS485 / MODBUS
