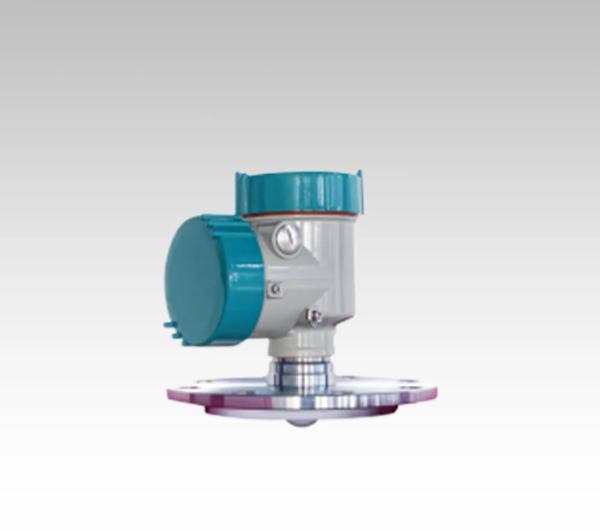

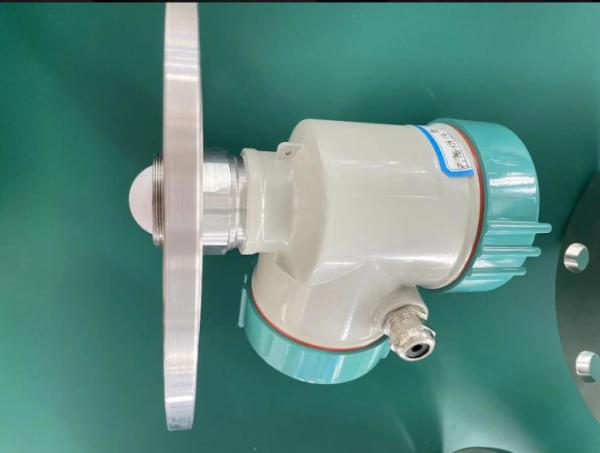

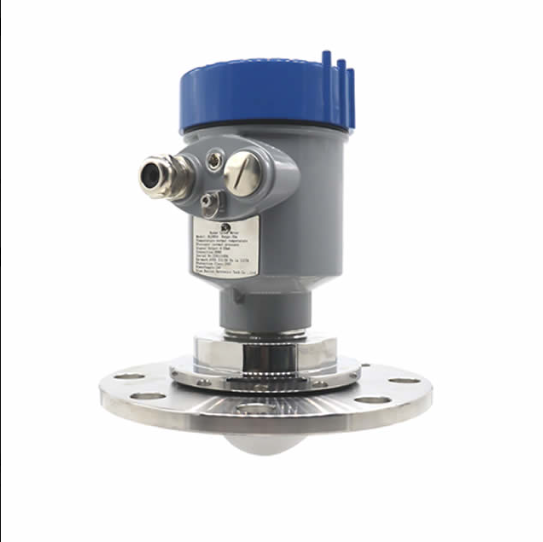

CAF L329-B803 Highly Corrosive Liquid Vapor Or Foam Radar Level Meter The Transmitted Radar Signal Is Reflected By The Measured Medium And Then Received By The Same Antenna
CAF L329-B803 Highly Corrosive Liquid Vapor Or Foam Radar Level Meter The Transmitted Radar Signal Is Reflected By The Measured Medium And Then Received By The Same Antenna
CAF L329-B803 Highly Corrosive Liquid Vapor Or Foam Radar Level Meter The Transmitted Radar Signal Is Reflected By The Measured Medium And Then Received By The Same Antenna
CAF L329-B803 Highly Corrosive Liquid Vapor Or Foam Radar Level Meter The Transmitted Radar Signal Is Reflected By The Measured Medium And Then Received By The Same Antenna
CAF L329-B803 Highly Corrosive Liquid Vapor Or Foam Radar Level Meter The Transmitted Radar Signal Is Reflected By The Measured Medium And Then Received By The Same Antenna
CAF L329-B803 Highly Corrosive Liquid Vapor Or Foam Radar Level Meter The Transmitted Radar Signal Is Reflected By The Measured Medium And Then Received By The Same Antenna
Specifications
Brand Name :
CAF
Model Number :
CAF L329-B803 Highly corrosive liquid vapor or foam radar level meter
Certification :
CO
Place of Origin :
China
MOQ :
1
Price :
145-1500USD
Payment Terms :
T/T
Supply Ability :
99pcs/2-4weeks
Delivery Time :
2-4weeks
Packaging Details :
Standard cardboard box packaging
Responsetime :
Less than 10 ms
Type :
Sensor
Operatingtemperaturerange :
-40°C to 85°C
Communicationprotocol :
Modbus, Profibus, Ethernet/IP
Outputinterface :
RS485, HART, Modbus
Connectiontype :
Threaded, Flanged
Outputtype :
Normally Open (NO), Normally Closed (NC)
Displaytype :
LCD, Analog Dial
Ingressprotection :
IP65, IP67
Description

1. The L329-B80 series frequency-modulated radar level gauge has a measurement accuracy of up to ±1mm, with a small blind spot of 50mm.
2. Smaller antenna size, meeting the needs of measurement for more working scenarios.
3. Multiple lens antennas, smaller emission angles, more concentrated energy, stronger echo signals, and higher reliability compared to other radar products under the same industrial and mining conditions.
4. Stronger penetration, allowing normal use even when adhesion and condensation occur.
5. Wider dynamic signal range, making measurements more stable for low dielectric constants.
6. Multiple measurement modes, selectable material level or empty height display, current output can be forward or backward.
7. Smaller measurement blind spots, achieving good results even for small tank measurements.
8. High signal-to-noise ratio, ensuring better performance even under fluctuating conditions.
9. High frequency is the ** choice for measuring solid and low dielectric constant media.

Technical Specifications

Item Specification
Product Model L329‑B803
Application Highly corrosive liquid, vapor, foam
Measuring Medium Strong acid, strong alkali, corrosive liquid with vapor/foam
Measuring Range 0.1 m ~ 100 m
Process Connection Corrosion‑resistant flange ≥ DN80
Process Temperature –40°C ~ 130°C(standard); optional up to 150°C
Process Pressure –0.1 MPa ~ 1.0 MPa
Antenna Size 42 mm lens antenna
Antenna Material PTFE (anti‑corrosion)
Accuracy ±1 mm (≤35 m); ±5 mm (35–100 m)
Protection Rating IP67
Center Frequency 80 GHz
Emission Angle 3°
Power Supply Two‑wire: DC24V

Four‑wire: DC12~24V / AC220V
Housing Material Aluminum / Stainless steel
Signal Output Two‑wire: 4~20mA / HART

Four‑wire: 4~20mA / RS485 MODBUS
