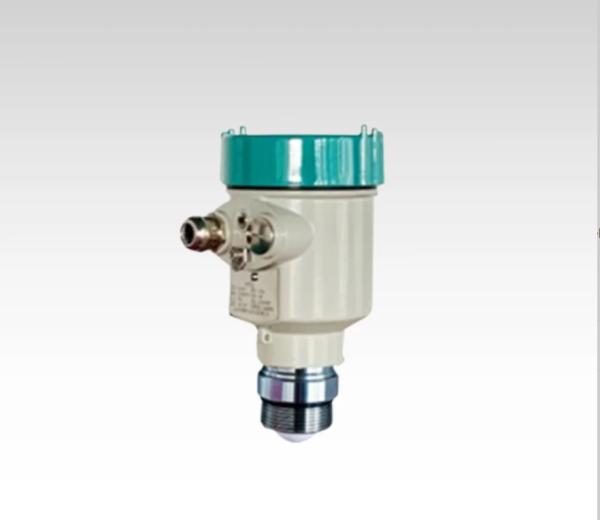

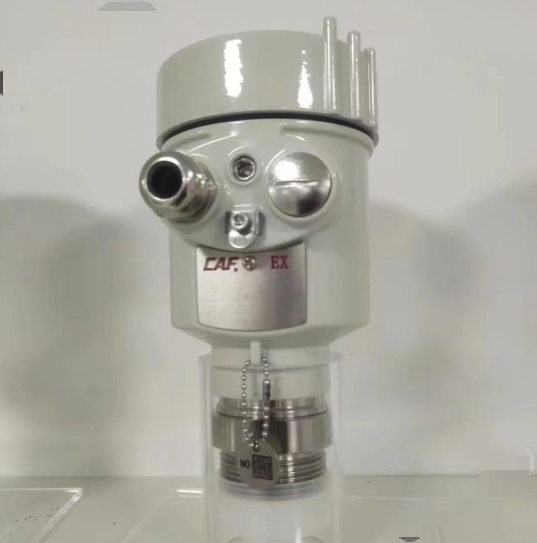

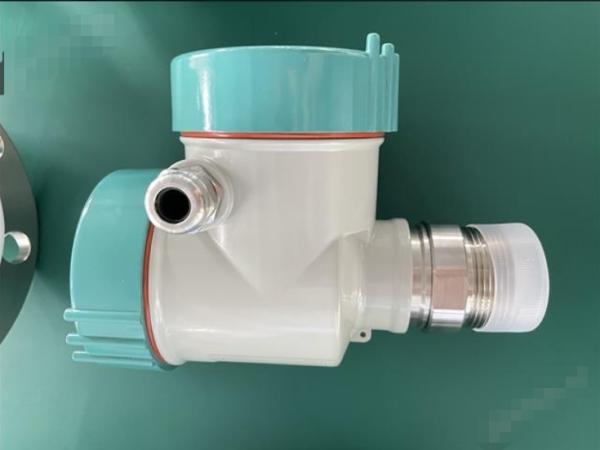

CAF L329-B801 Non-corrosive Radar Level Gauge Frequency-modulated Radar Level Meters Use FMCW Technology
CAF L329-B801 Non-corrosive Radar Level Gauge Frequency-modulated Radar Level Meters Use FMCW Technology
CAF L329-B801 Non-corrosive Radar Level Gauge Frequency-modulated Radar Level Meters Use FMCW Technology
CAF L329-B801 Non-corrosive Radar Level Gauge Frequency-modulated Radar Level Meters Use FMCW Technology
CAF L329-B801 Non-corrosive Radar Level Gauge Frequency-modulated Radar Level Meters Use FMCW Technology
CAF L329-B801 Non-corrosive Radar Level Gauge Frequency-modulated Radar Level Meters Use FMCW Technology
Specifications
Brand Name :
CAF
Model Number :
CAF L329-B801 non-corrosive radar level gauge
Certification :
CO
Place of Origin :
China
MOQ :
1
Price :
130-900USD
Payment Terms :
T/T
Supply Ability :
99pcs/2-4weeks
Delivery Time :
2-4weeks
Packaging Details :
Standard cardboard box packaging
Operatingtemperature :
-40°C to 85°C
Protectionrating :
IP65, IP67
Material :
Stainless Steel, Brass
Accuracy :
±0.1% FS
Connectiontype :
Threaded, Flanged
Measurementrange :
0 to 1000 psi
Application :
Industrial, HVAC, Automotive
Displaytype :
LCD, LED
Outputinterface :
RS485, HART, Modbus
Pressuretype :
Gauge, Absolute, Differential
Pressurerange :
0 to 10000 psi
Description

Product Features

  1. The L329-B80 series frequency-modulated radar level gauge has a maximum measurement accuracy of up to ±1mm, with a minimum blind spot of 50mm.
  2. Smaller antenna size, meeting the needs of measurement for more working scenarios.
  3. Multiple lens antennas, smaller emission angles, more concentrated energy, stronger echo signals, and higher reliability compared to other radar products under the same industrial and mining conditions.
  4. Stronger penetration, allowing normal use even when adhesion and condensation occur.
  5. Wider dynamic signal range, making measurements more stable for low dielectric constants.
  6. Multiple measurement modes, selectable material level or empty height display, current output can be forward or backward.
  7. Smaller measurement blind spots, achieving good results even for small tank measurements.
  8. High signal-to-noise ratio, ensuring better performance even under fluctuating conditions.
  9. High frequency, making it the best choice for measuring solid and low dielectric constant media.

Technical Specifications

Item Specification
Typical Application Non-corrosive liquid
Measuring Medium Non-corrosive liquid
Measuring Range 0.05 m ~ 100 m
Process Connection G1-1/2
Process Temperature -40°C ~ 80°C
Process Pressure -0.1 MPa ~ 0.3 MPa
Antenna Type & Size 32mm lens antenna
Antenna Material PTFE
Measurement Precision ±1 mm
Protection Level IP67
Center Frequency 80 GHz
Emission Angle 3°
Power Supply Two-wire: DC24V
Four-wire: DC12~24V / AC220V
Housing Material Aluminum / Plastic / Stainless steel
Signal Output Two-wire: 4~20mA / HART
Four-wire: 4~20mA / RS485 MODBUS
