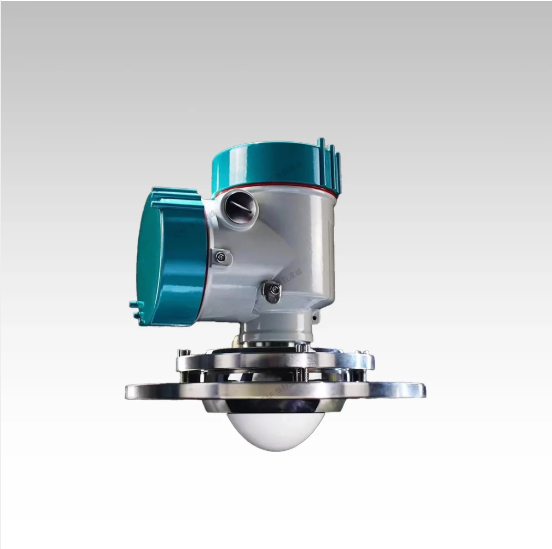

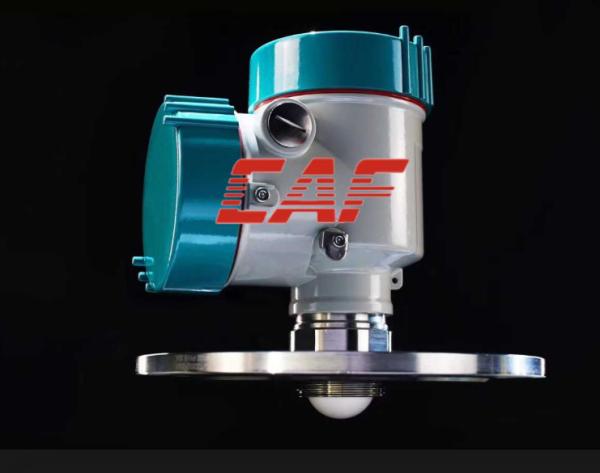

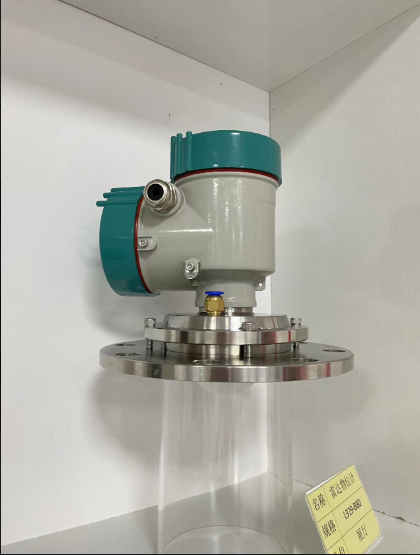

CAFL329-B806 Solid Powder Particles Are Accompanied By Vapor Or Dust Radar Level Gauges High Speed By The Chip Circuit The Height Of The Target To Be Measured Is Determined From This Calculation
CAFL329-B806 Solid Powder Particles Are Accompanied By Vapor Or Dust Radar Level Gauges High Speed By The Chip Circuit The Height Of The Target To Be Measured Is Determined From This Calculation
CAFL329-B806 Solid Powder Particles Are Accompanied By Vapor Or Dust Radar Level Gauges High Speed By The Chip Circuit The Height Of The Target To Be Measured Is Determined From This Calculation
CAFL329-B806 Solid Powder Particles Are Accompanied By Vapor Or Dust Radar Level Gauges High Speed By The Chip Circuit The Height Of The Target To Be Measured Is Determined From This Calculation
CAFL329-B806 Solid Powder Particles Are Accompanied By Vapor Or Dust Radar Level Gauges High Speed By The Chip Circuit The Height Of The Target To Be Measured Is Determined From This Calculation
CAFL329-B806 Solid Powder Particles Are Accompanied By Vapor Or Dust Radar Level Gauges High Speed By The Chip Circuit The Height Of The Target To Be Measured Is Determined From This Calculation
Specifications
Brand Name :
CAF
Model Number :
CAFL329-B806
Certification :
CO
Place of Origin :
China
MOQ :
1
Price :
1300-2500USD
Payment Terms :
T/T
Supply Ability :
99pcs/2-4weeks
Delivery Time :
2-4weeks
Packaging Details :
Standard cardboard box packaging
Pressurerange :
0 to 10,000 psi
Operatingtemperaturerange :
-40°C to 85°C
Operatingtemperature :
-40°C to 85°C
Powersupply :
12-24V DC
Communicationprotocol :
Modbus, HART, Profibus, IO-Link
Ingressprotection :
IP65
Displaytype :
LCD, LED
Accuracy :
±0.5% to ±1% depending on sensor
Applications :
Industrial, HVAC, Automotive, Oil & Gas
Outputsignal :
Analog (4-20mA, 0-10V), Digital (PNP, NPN, Modbus)
Description
Key Features
  1. The L329-B80 series frequency-modulated radar level gauge has a measurement accuracy of up to ±1mm, with a small blind spot of 50mm.
  2. Smaller antenna size, meeting the needs of measurement for more working scenarios.
  3. Multiple lens antennas, smaller emission angles, more concentrated energy, stronger echo signals, and higher reliability compared to other radar products under the same industrial and mining conditions.
  4. Stronger penetration, allowing normal use even when adhesion and condensation occur.
  5. Wider dynamic signal range, making measurements more stable for low dielectric constants.
  6. Multiple measurement modes, selectable material level or empty height display, current output can be forward or backward.
  7. Smaller measurement blind spots, achieving good results even for small tank measurements.
  8. High signal-to-noise ratio, ensuring better performance even under fluctuating conditions.
  9. High frequency is the ** choice for measuring solid and low dielectric constant media.
Technical Specifications
Item Specification
Measuring Media Solid powder, particles, with vapor/dust
Measuring Range 0.1 m ~ 100 m
Process Connection Flange ≥ DN100 (with universal flange + purge)
Process Temperature -40°C ~ 110°C
Process Pressure -0.1 MPa ~ 0.3 MPa
Antenna 76mm lens antenna, PTFE, with purge port
Beam Angle 1° (ultra‑narrow, less dust interference)
Accuracy ±5 mm
Protection Rating IP67
Frequency 80 GHz
Power Supply 2‑wire: DC24V
4‑wire: DC12~24V / AC220V
Housing Aluminum / Plastic / Stainless Steel
Signal Output 2‑wire: 4~20mA / HART
4‑wire: 4~20mA / RS485 Modbus
