HACH IntelliCAL LDO101 Luminescent (Optical) DO Sensor with IP68 Protection and Auto-recognition Calibration.
HACH IntelliCAL LDO101 Luminescent (Optical) DO Sensor with IP68 Protection and Auto-recognition Calibration.
HACH IntelliCAL LDO101 Luminescent (Optical) DO Sensor with IP68 Protection and Auto-recognition Calibration.
HACH IntelliCAL LDO101 Luminescent (Optical) DO Sensor with IP68 Protection and Auto-recognition Calibration.
Specifications
Accuracy :
±0.1% FS
Material :
Stainless Steel, Brass
Measurementtype :
Gauge, Absolute, Differential
Responsetime :
≤ 1 ms
Protectionrating :
IP65, IP67
Powersupply :
24 V DC
Payment Terms :
T/T
Brand Name :
HACH
Displaytype :
Analog, Digital LCD
Model Number :
LDO101
Pressurerange :
0 to 10,000 psi
Application :
Industrial, HVAC, Automotive, Oil & Gas
Productname :
Pressure Measurement Instruments
Delivery Time :
2-3WEEK
Operatingtemperature :
-20°C to 85°C
Price :
699USD
MOQ :
1
Mountingoptions :
Panel, Wall, Pipe
Outputsignal :
4-20 mA, 0-10 V, Digital
Supply Ability :
1PC 2-3WEEK
Connectiontype :
Threaded, Flanged
Description

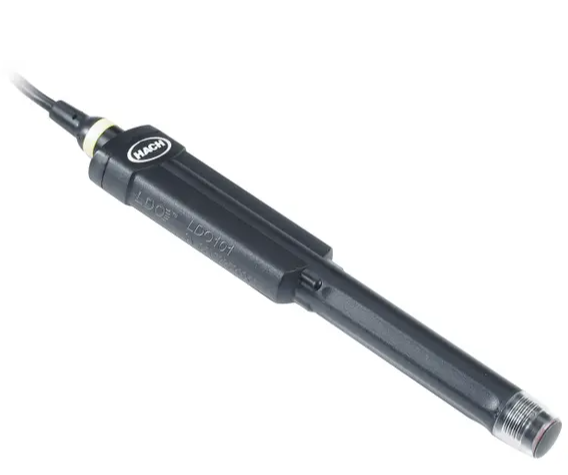

IntelliCAL LDO101 Laboratory Luminescent/Optical Dissolved Oxygen Sensor
The IntelliCAL LDO101 is a premium digital dissolved oxygen sensor utilizing advanced luminescent (optical) technology. With no membrane or electrolyte requirements, this sensor offers reliable, maintenance-free DO measurements for laboratory and field applications.
Product Overview
SpecificationDetails
Model NameLDO101
Full NameIntelliCAL Luminescent Dissolved Oxygen (LDO) Sensor
Measurement PrincipleLuminescent (Optical) DO - No membrane, no electrolyte
Probe TypeDigital IntelliCAL (Auto-recognition, calibration stored in probe)
Compatible MetersHQ2100, HQ2200, HQ4100, HQ4200, HQ4300; SC100, SC200, SC1000
DO Measurement Specifications
Measuring Range: 0.05-20.0 mg/L; 0-200% saturation
Resolution: 0.01 / 0.1 mg/L (selectable); 0.1% saturation
Accuracy: ±0.1 mg/L (0-8 mg/L); ±0.2 mg/L (>8 mg/L)
Temperature Compensation: Automatic (ATC)
Air Pressure Compensation: Built-in sensor, automatic
Calibration: 1-point (saturated air or water)
Response Time: T90% <10 s (stirred)
Additional Measurement Capabilities
Temperature Range: 0-50 °C (32-122 °F)
Temperature Resolution: 0.1 °C
Temperature Accuracy: ±0.3 °C
Pressure Range: 600-1100 mbar
Pressure Resolution: 5 mbar
Pressure Accuracy: ±3 mbar
Physical Specifications
Body Material: Polycarbonate/ABS (Lab); Stainless Steel (Field)
Dimensions (D*L): 15.9 mm * 191 mm (Lab); 15.9 mm * 215 mm (Field)
Cable Length Options: 1 m, 3 m, 5 m, 10 m, 15 m, 30 m
Protection: IP68 (submersible)
Weight: ~200 g (1 m cable)
Maintenance & Service Life
Consumables: Replaceable DO cap (with iButton)
Calibration Interval: Typically 1-3 months
Service Life: DO cap: ~1 year (typical); Probe: 3-year warranty
Included Accessories
  • Protective shroud kit
  • DO cap (pre-mounted)
  • Test certificate
  • User manual
