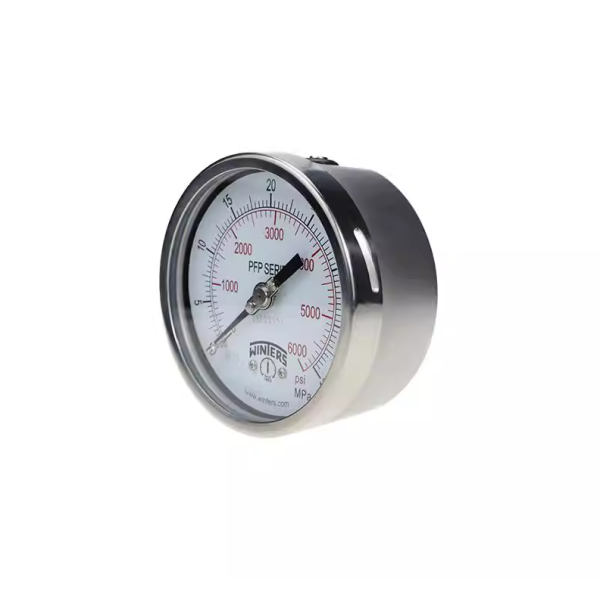

WINTERS PFP-40(100MM) All-Steel Axial Eccentric Oil-Filled Vibration-Resistant Pressure Gauge
WINTERS PFP-40(100MM) All-Steel Axial Eccentric Oil-Filled Vibration-Resistant Pressure Gauge
Specifications
Brand Name :
WINTERS
Model Number :
PFP-4
MOQ :
1
Price :
70USD
Payment Terms :
T/T
Supply Ability :
1PC 1-2WEEK
Delivery Time :
1-2WEEK
Measurementrange :
0 to 1000 psi
Pressuretype :
Gauge, Absolute, Differential
Outputsignal :
4-20 mA, 0-10 V, Digital
Accuracy :
±0.5%
Productname :
Pressure Measurement Instruments
Connectiontype :
Threaded, Flanged
Protectionrating :
IP65
Material :
Stainless Steel
Powersupply :
24 V DC
Operatingtemperature :
-20°C to 85°C
Responsetime :
Less than 1 second
Application :
Industrial, HVAC, Automotive
Displaytype :
LCD, Analog Dial
Mountingoptions :
Panel, Wall, Pipe
Calibration :
Factory Calibrated
Description
WINTERS PFP-40 All-Steel Axial Eccentric Oil-Filled Vibration-Resistant Pressure Gauge
Premium Industrial Pressure Measurement Solution

4" (100 mm) stainless steel liquid-filled pressure gauge designed for demanding industrial applications requiring exceptional vibration resistance and reliability.

Technical Specifications
Parameter Specification
Model PFP-40
Type Premium Stainless Steel Liquid Filled Pressure Gauge
Dial Size 4" (100 mm)
Case Material AISI 304 Stainless Steel (with rear blowout plug)
Wetted Parts 316 Stainless Steel / 316L Stainless Steel / Brass (optional)
Lens Polycarbonate (High pressure BSP(G) and HP models: Tempered safety glass)
Bezel AISI 304 Stainless Steel Bayonet Ring
Dial White aluminum with black and red markings
Pointer Black anodized aluminum with micrometer adjustable screw
Accuracy ±1.0% of Full Scale (ANSI/ASME Grade 1A; ±1.5% option available)
Connection 1/2" NPT male (Back/Bottom/Panel mount options; 1/4" NPT optional)
Fill Liquid Glycerin (standard); Silicone oil / Low-temperature silicone oil / High-temperature synthetic oil (optional); Dry case available
Performance & Environmental Ratings

Ambient Temperature (Dry): -40°F to 250°F (-40°C to 120°C)

Ambient Temperature (Glycerin Filled): -4°F to 150°F (-20°C to 65°C)

Process Temperature: -40°F to 250°F (-40°C to 120°C)

Enclosure Rating: NEMA 4X / IP66 (EN60529-1)

Over-Pressure Limit: 25% for pressures ≤1,450 PSI (9,998 kPa); 15% for pressures ＞1,500 PSI

Key Features
  • Under & Overload Stops Incorporated
  • Ventable Plug Included (Bottom mount models)
  • Restricted Orifice Standard on dual scale (Optional on single scale)
  • Axial eccentric design for optimal vibration resistance
  • Oil-filled construction for pulsation dampening
Compliance & Warranty

Compliance: ASME B40.100; EN837-1 (available); CRN registered; RoHS compliant (for SS internals)

Warranty: 5 Years

Pressure Range Options

Available ranges from 0...60 kPa to 0...20,000 psi. Vacuum ranges available: -1...0 bar / 30" Hg Vac.
