Q355B Warehouse Steel Structure Load 20 Tons/M3 Economical Power Plant Steel Structure
Q355B Warehouse Steel Structure Load 20 Tons/M3 Economical Power Plant Steel Structure
Specifications
Type :
Light
Product Name :
Prefab Steel Structure
Standard :
GB EN ASTM
Performance :
Safety, water-proof, sound insulated,hear-preservation
Wind Resistance Level :
Typhoon Level 12 (35m/s)
Design Service Life :
50 years
Keyword :
Steel structure warehouse building prefab warehouse steel structure
Feature :
Anti Earthquake、Antirust、Anti Corrosion
Brand Name :
Shandong Xinghua Steel Structure
Model Number :
Steel plates, H-beams, angle steels, I-beams, channel steels, round pipes, square pipes, etc
Certification :
EN1900、Three-Body
Place of Origin :
China
MOQ :
10 tons
Price :
8000 yuan per ton
Payment Terms :
Advance payment plus full payment for delivery
Supply Ability :
Monthly supply capacity not less than 2000 tons .
Delivery Time :
After confirming the drawings, the shipment will be made within 20 days .
Packaging Details :
Bulk carriers, containers
Seismic Resistance :
Degree 8 Fortification
Grade :
Q235B Q355B
size :
15-80 meters 、80-120 meters 、50-1000M
Description

Fast-Built Q355B Steel Warehouse Economical Typecal

prodnct deecrlption

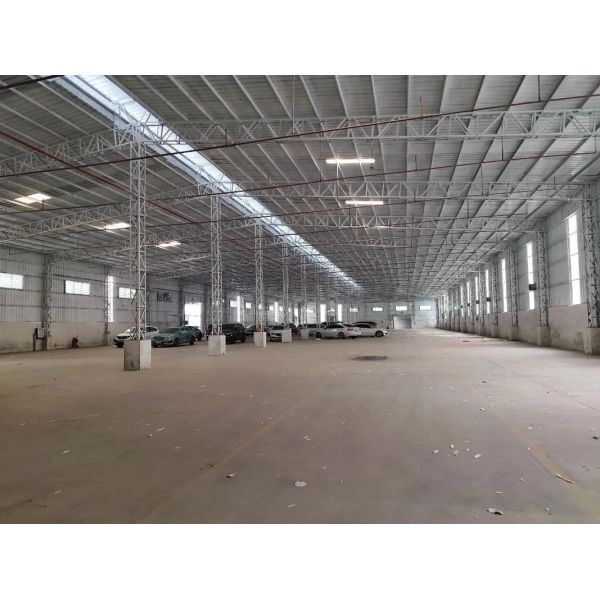

This large warehouse steel structure system is fabricated from Q355B high-strength steel, custom-engineered to meet the storage demands of modern logistics. Its portal frame design delivers a column-free clear span of up to 82 meters, making it perfectly suited for installing large-scale racking systems and automated logistics equipment. The system is engineered to withstand diverse climatic conditions: integrated drainage and moisture-proofing components ensure performance in rainy areas, while high-reflectivity roof panels effectively lower indoor temperatures in hot climates.

Technical Specifications

Parameter

Specifications

Standards

Main Material

Q355B high-strength steel (equivalent to ASTM A572 Gr.50, EN S355JR)

GB/T 1591, ASTM A572, EN 10025

Span Range

15-81 meters (standard), 81-125 meters (custom design)

GB 50017, EN 1990, ASCE 7

Roof System

0.6mm aluminum zinc coated color steel plate, 100-200mm rock wool sandwich panel

ASTM A792, EN 10169

Eave Height

8-20 meters (adjustable), compatible with high-level shelving systems

ISO 6781

Ground Load

5-20 tons/m² (customizable based on storage requirements)

GB 50009, EN 1991

Key Advantages

1.Q355B high-strength steel provides exceptional load-bearing capacity for high-density rack systems

2.Rapid construction system completes 10,000m² warehouse construction within 6 months

3.Modular expansion design enables flexible warehouse capacity increases as business needs grow

4.Large-span column-free design maximizes storage space, increasing utilization by 30%

Applications

1.Logistics distribution hubs and regional distribution warehouses

2.Warehouses for industrial raw material and finished product storage

3.Cold chain logistics warehouses and temperature-controlled storage premises

4.Port container yards and cargo transshipment terminals
