AQ355B S355JR Warehouse Steel Structure Modular Expansion Pre Built Metal Buildings
AQ355B S355JR Warehouse Steel Structure Modular Expansion Pre Built Metal Buildings
Specifications
Brand Name :
Shandong Xinghua Steel Structure
Model Number :
Steel plates, H-beams, angle steels, I-beams, channel steels, round pipes, square pipes, etc
Certification :
EN1900、Three-Body
Place of Origin :
China
MOQ :
10 tons
Price :
8000 yuan per ton
Payment Terms :
Advance payment plus full payment for delivery
Supply Ability :
Monthly supply capacity not less than 2000 tons .
Delivery Time :
After confirming the drawings, the shipment will be made within 20 days .
Packaging Details :
Bulk carriers, containers
Product Name :
Prefab Steel Structure
Seismic Resistance :
Degree 8 Fortification
Wind Resistance Level :
Typhoon Level 12 (35m/s)
Design Service Life :
50 years
Feature :
Anti Earthquake、Antirust、Anti Corrosion
size :
15-80 meters 、80-120 meters 、50-1000M
Grade :
Q235B Q355B
Standard :
GB EN ASTM
Type :
Light
Keyword :
Steel structure warehouse building prefab warehouse steel structure
Performance :
Safety, water-proof, sound insulated,hear-preservation
Description

Q355B Large Warehouse Steel Structure Fast Build, Economical, Modular Expansion


prodnct deecrlption

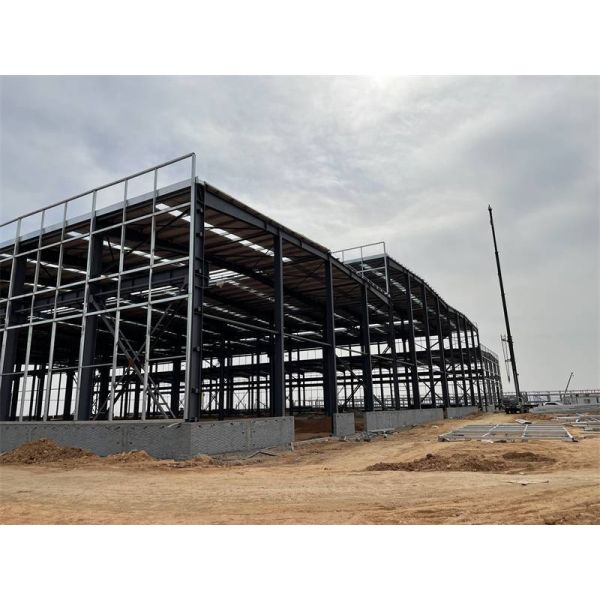

Large warehouse steel structure system manufactured from Q355B high-strength steel, specifically designed for modern logistics storage needs. The portal frame structure provides maximum 80-meter column-free space, meeting requirements for large rack systems and automated equipment installation. For rainy climates in Southeast Asia, efficient drainage systems and moisture barriers are designed; for high-temperature environments in the Middle East, high-reflectivity roof panels are used to reduce indoor temperatures. Modular design facilitates later expansion, allowing gradual increase of warehouse capacity according to business growth.


Technical Specifications

parameter category

Detailed Specifications

International Standard

Main material

Main materialQ355B high-strength steel (corresponding to American standard A572 Gr.50, European standard S355JR)

GB/T 1591, ASTM A572, EN 10025

span range

15-80 meters (standard design), 80-120 meters (special design)

GB 50017, EN 1990, ASCE 7

eave height

8-20 meters (adjustable), meeting the needs of high-level shelves

ISO 6781

Roof system

0.6mm thick aluminum zinc coated color steel plate, 100-200mm thick rock wool sandwich panel

ASTM A792, EN 10169

Ground load

5-20 tons/m ² (adjusted according to the type of stored goods)

GB 50009, EN 1991

advantages

  • Q355B high-strength steel has excellent bearing capacity, supporting high-density rack systems

  • Large-span column-free design maximizes storage space, space utilization increased by 30%

  • Modular expansion design, allowing flexible increase of warehouse capacity according to business needs

  • Rapid construction system, completing 10,000m² warehouse construction within 6 months

  • Adapts to different climate conditions, providing customized environmental control solutions


Application

  • Logistics distribution centers and regional distribution warehouses

  • E-commerce storage and order processing centers

  • Cold chain logistics warehouses and constant temperature storage facilities

  • Industrial raw materials and finished product storage warehouses

  • Port container yards and cargo transfer stations

AQ355B S355JR Warehouse Steel Structure Modular Expansion Pre Built Metal BuildingsAQ355B S355JR Warehouse Steel Structure Modular Expansion Pre Built Metal Buildings
