15 - 80meters Metal Warehouse Building Prefab Modular Commercial Buildings
15 - 80meters Metal Warehouse Building Prefab Modular Commercial Buildings
Specifications
Brand Name :
Shandong Xinghua Steel Structure
Model Number :
Steel plates, H-beams, angle steels, I-beams, channel steels, round pipes, square pipes, etc
Certification :
EN1900、Three-Body
Place of Origin :
China
MOQ :
10 tons
Price :
8000 yuan per ton
Payment Terms :
Advance payment plus full payment for delivery
Supply Ability :
Monthly supply capacity not less than 2000 tons .
Delivery Time :
After confirming the drawings, the shipment will be made within 20 days .
Packaging Details :
Bulk carriers, containers
Product Name :
Prefab Steel Structure
Seismic Resistance :
Degree 8 Fortification
Wind Resistance Level :
Typhoon Level 12 (35m/s)
Design Service Life :
50 years
Feature :
Anti Earthquake、Antirust、Anti Corrosion
size :
15-80 meters 、80-120 meters 、50-1000M
Grade :
Q235B Q355B
Standard :
GB EN ASTM
Type :
Light
Keyword :
Steel structure warehouse building prefab warehouse steel structure
Performance :
Safety, water-proof, sound insulated,hear-preservation
Description

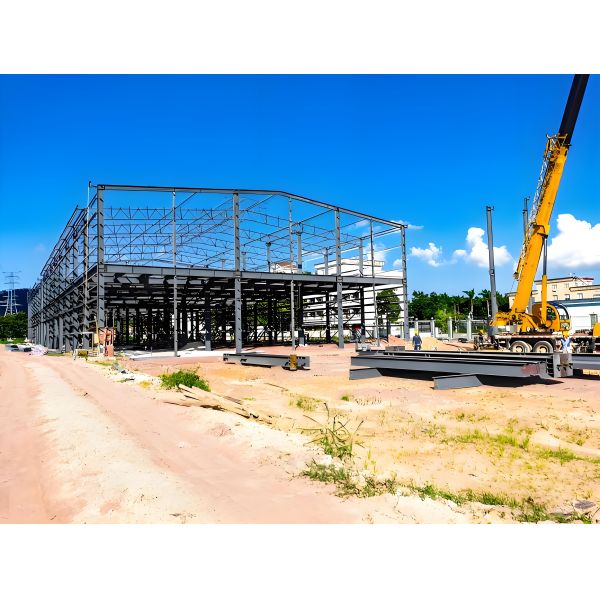

A Q355B Large Warehouse Steel Structure Fast Build, Economical, Modular Expansion

prodnct deecrlption

This large warehouse steel structure is crafted from high-strength Q355B steel, boasting three core advantages: fast construction, economic efficiency and modular expansion. It shortens the building cycle significantly for quick project delivery, features a cost-optimized design to reduce overall investment, and supports flexible modular expansion to meet your growing storage and logistics needs at any stage.

Technical Specifications

parameter category

Detailed Specifications

International Standard

Main material

Main materialQ355B high-strength steel (corresponding to American standard A572 Gr.50, European standard S355JR)

GB/T 1591, ASTM A572, EN 10025

span range

15-80 meters (standard design), 80-120 meters (special design)

GB 50017, EN 1990, ASCE 7

eave height

8-20 meters (adjustable), meeting the needs of high-level shelves

ISO 6781

Roof system

0.6mm thick aluminum zinc coated color steel plate, 100-200mm thick rock wool sandwich panel

ASTM A792, EN 10169

Ground load

5-25 tons/m ² (adjusted according to the type of stored goods)

GB 50009, EN 1991

advantages

  • Large-span column-free design maximizes storage space, space utilization increased by 30%

  • Q355B high-strength steel has excellent bearing capacity, supporting high-density rack systems

  • Modular expansion design, allowing flexible increase of warehouse capacity according to business needs

  • Rapid construction system, completing 10,000m² warehouse construction within 6 months

  • Adapts to different climate conditions, providing customized environmental control solutions


Application

  • E-commerce storage and order processing centers

  • Logistics distribution centers and regional distribution warehouses

  • Cold chain logistics warehouses and constant temperature storage facilities

  • Industrial raw materials and finished product storage warehouses

  • Port container yards and cargo transfer stations
