Logistics Customized Steel Structure Warehouse 50m 60m Prefabricated Warehouse Buildings
Logistics Customized Steel Structure Warehouse 50m 60m Prefabricated Warehouse Buildings
Specifications
Brand Name :
Shandong Xinghua Steel Structure
Model Number :
Steel plates, H-beams, angle steels, I-beams, channel steels, round pipes, square pipes, etc
Certification :
EN1900、Three-Body
Place of Origin :
China
MOQ :
10 tons
Price :
8000 yuan per ton
Payment Terms :
Advance payment plus full payment for delivery
Supply Ability :
Monthly supply capacity not less than 2000 tons .
Delivery Time :
After confirming the drawings, the shipment will be made within 20 days .
Packaging Details :
Bulk carriers, containers
Product Name :
Prefab Steel Structure
Seismic Resistance :
Degree 8 Fortification
Wind Resistance Level :
Typhoon Level 12 (35m/s)
Design Service Life :
50 years
Feature :
Anti Earthquake、Antirust、Anti Corrosion
size :
15-80 meters 、80-120 meters 、50-1000M
Grade :
Q235B Q355B
Standard :
GB EN ASTM
Type :
Light
Keyword :
Steel structure warehouse building prefab warehouse steel structure
Performance :
Safety, water-proof, sound insulated,hear-preservation
Description

Fast Build Q355B Steel Structure | Large Warehouse, Economical, Modular

prodnct deecrlption

Large warehouse steel structure system manufactured from Q355B high-strength steel, specifically designed for modern logistics storage requirements. The portal frame structure provides up to 82 meters of column-free space, ideal for large rack systems and automated equipment installation. Engineered for diverse climate conditions with integrated drainage systems and moisture barriers for rainy regions, and high-reflectivity roof panels to reduce indoor temperatures in hot climates.

Technical Specifications
Parameter Specifications Standards
Main Material Q355B high-strength steel (equivalent to ASTM A572 Gr.50, EN S355JR) GB/T 1591, ASTM A572, EN 10025
Span Range 15-82 meters (standard), 82-125 meters (custom design) GB 50017, EN 1990, ASCE 7
Eave Height 8-20 meters (adjustable), compatible with high-level shelving systems ISO 6781
Roof System 0.6mm aluminum zinc coated color steel plate, 100-200mm rock wool sandwich panel ASTM A792, EN 10169
Ground Load 5-20 tons/m² (customizable based on storage requirements) GB 50009, EN 1991
Key Advantages
  • Q355B high-strength steel provides exceptional load-bearing capacity for high-density rack systems
  • Modular expansion design enables flexible warehouse capacity increases as business needs grow
  • Rapid construction system completes 10,000m² warehouse construction within 6 months
  • Climate-adaptive design with customized environmental control solutions for various regions
  • Large-span column-free design maximizes storage space, increasing utilization by 30%
Applications
  • Logistics distribution centers and regional distribution warehouses
  • Cold chain logistics warehouses and temperature-controlled storage facilities
  • Industrial raw materials and finished product storage warehouses
  • Port container yards and cargo transfer stations

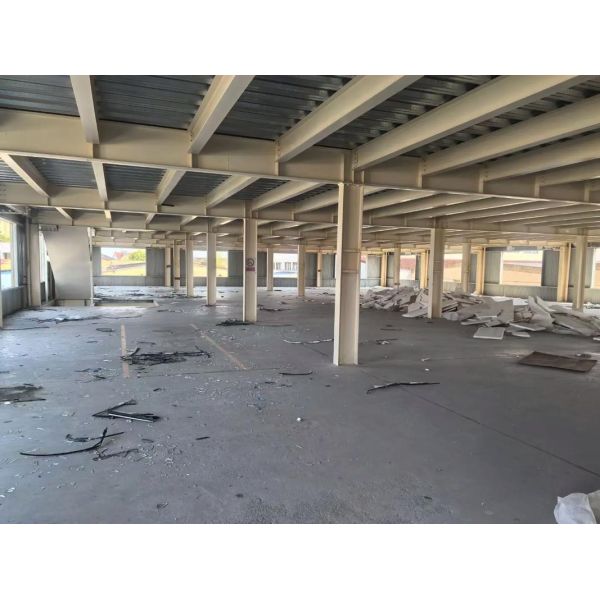

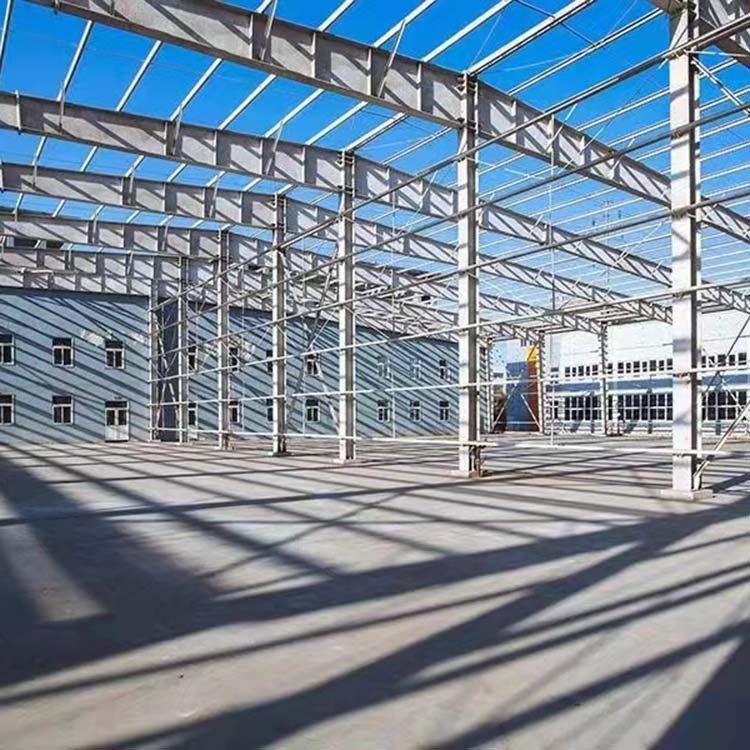

Project Gallery
Logistics Customized Steel Structure Warehouse 50m 60m Prefabricated Warehouse Buildings Logistics Customized Steel Structure Warehouse 50m 60m Prefabricated Warehouse Buildings Logistics Customized Steel Structure Warehouse 50m 60m Prefabricated Warehouse Buildings
