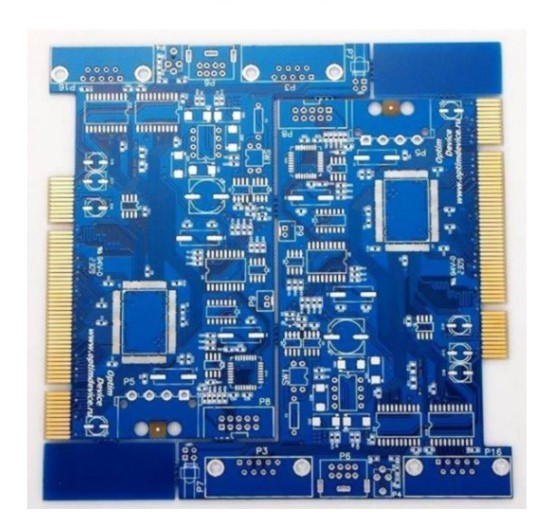

6-Layer Medical HDI PCB | Elite Interconnect for Healthcare

Product Overview:

Our 6-layer HDI PCBs are the premier choice for high-precision medical imaging, diagnostic workstations, and advanced life-support systems. Featuring advanced multilayer laser micro-via technology, these boards enable extreme routing density while maintaining dedicated ground and power planes to ensure zero-latency signal integrity. Engineered for medical-grade reliability, our boards support complex BGA packages and high-speed data processing in compact clinical devices. With superior thermal management and chemical resistance, our HDI solutions provide the robust, stable foundation necessary for the most demanding hospital and laboratory environments.

Key Selling Points:

• Zero Interference: 6-layer shielding for high-precision bio-signals.

• High Reliability: Certified materials for critical medical hardware.

• Ultra-Compact: Precision HDI tech for sophisticated clinical tools.

Engineering Support: DFM (Design for Manufacturing) check before production.

Testing: Flying Probe Test, Fixture Test, Impedance Control Test, Thermal Stress Test.

“ Instant PCB(1-38 layers)”--PCBgate

PCBgate is a professional PCB manufacturer providing high-quality printed circuit boards for global electronics industries.

We are capable of manufacturing a wide range of PCB types to meet different application requirements, including:FR-4 PCBs,ceramic PCBs,carbon oil PCBs,Aluminum PCBs,Flexible & Rigid-Flex PCBs.

We specialize in 6-layer Medical Grade HDI PCB manufacturing, providing the perfect balance between clinical-grade precision and multi-layer signal isolation. By using Laser Direct Imaging (LDI) and high-speed laser drilling, we achieve the precise registration required for your advanced 1+N+1 and 2+N+2 stack-up designs.

This 6-layer structure is ideal for MRI/CT control modules, patient monitors, and surgical robotics. We ensure 100% E-test and AOI inspection to guarantee that every board meets the highest industrial standards for signal stability and performance.

We support HDI PCB prototypes, small-batch production, and mass production to meet different customer requirements, helping you accelerate your product's time-to-market.

Our PCB manufacturing capability includes:

• Fine Line Technology: Min. Trace/Space down to 0.075mm / 0.075mm

• Blind & Buried Vias: Professional via-in-pad and resin filling processes

• High-End Materials: High-TG, Low-Loss, and Halogen-free laminates

• Surface Finishes: ENIG, ENEPIG, and OSP for superior soldering

• Complex Stack-ups: Multilayer HDI integration up to 20+ layers

• Rigorous Testing: AOI, Micro-sectioning, and Impedance Control

Attention: pictures are for reference only. The specific products are subject to the original factory model.

Standard Packaging: Inner Vacuum Packaging + Outer Carbon Box.

Delivery Partners: EMS,DHL,SF-express, FedEx, UPS or Sea/Air Freight for bulk orders.

• 15 years of experience in PCB manufacturing.

• Advanced Equipment: Equipped with high-speed CNC drilling machines and AOI testing lines.

• Professional engineering support

• Fast prototype delivery

• Global customers from Europe, USA and Asia

• Own Global Supply System.

• Fast and safe way by EMS/DHL/SF-express/Fedex,etc.

• New styles updating everyday and MOQ for all the styles;

1. What's your MOQ and what is PCBgate's fastest delivery time?

A: Our MOQ is Minimum packaging quantity, please contact us for details. Sample to mass production all can be supported by PCBgate.

2. Which payment terms does PCBgate accept?

A:Advance T/T,Western Union,Paypal, L/C,Credit Card, Cheque,Money Gram and Others.

3.What files are required for PCB quotation?

A:Gerber files, PCB specifications and quantity.

4. How to test PCB boards?

A: AOI, Fly probe testing, Text fixture testing, FOC etc. For bare PCB.

Shipping Information

Welcome to send us your PCB Gerber files for quotation.

Our engineering team will respond within 24 hours.
