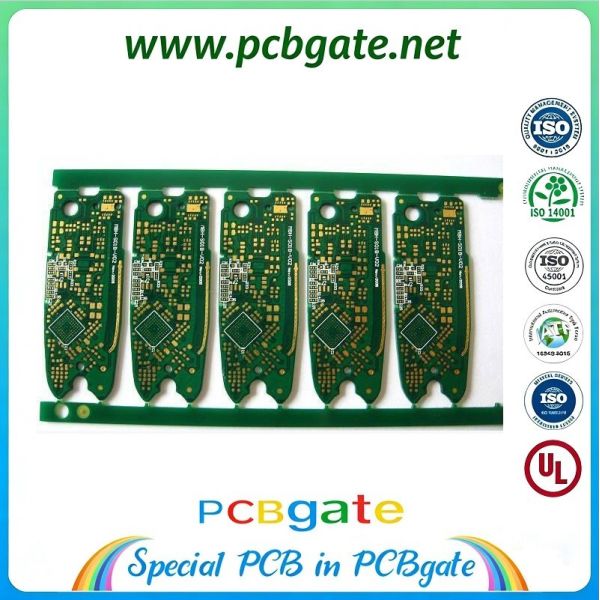

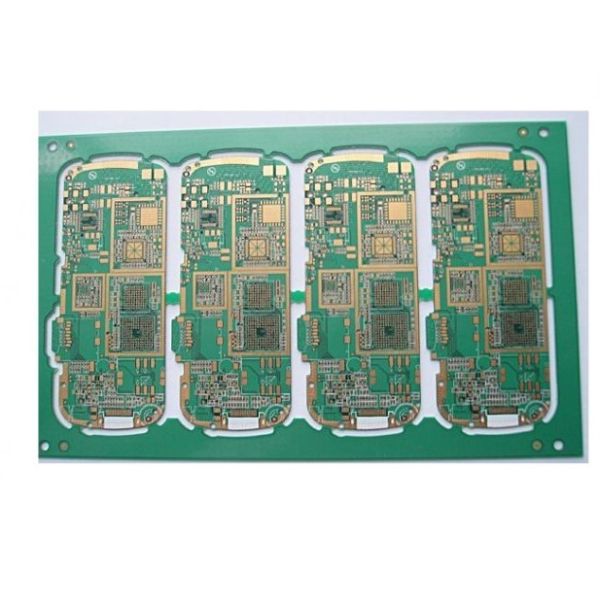

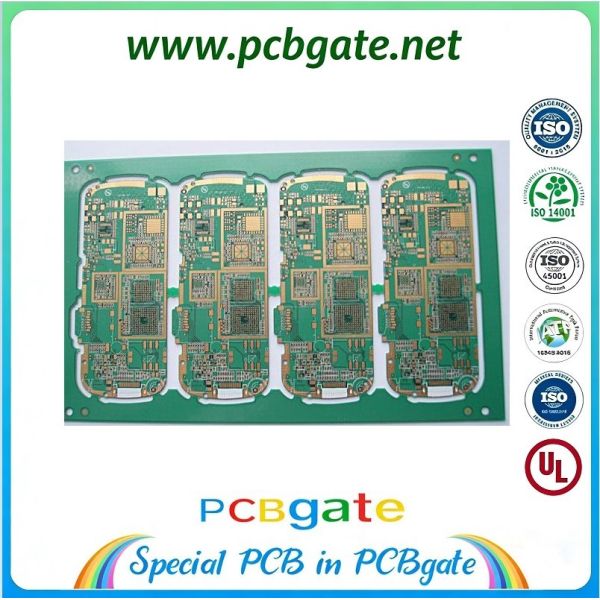

8-Layer Elite Automotive HDI PCB | Smart Driving Control Core

Product Overview:

Our 8-layer HDI PCBs are the premier interconnect solution for high-end automotive applications, including autonomous driving controllers and advanced infotainment hubs. Featuring high-order laser micro-via structures, these boards support the massive data processing required for real-time sensor fusion and vehicle-to-everything (V2X) communication. Engineered for mission-critical reliability, our 8-layer design provides superior electromagnetic shielding and thermal stability to withstand the harshest road environments. Whether for AI-driven cockpit systems or high-speed navigation, our HDI boards deliver the robust, high-performance foundation required for the future of smart mobility.

Key Selling Points:

• Auto-AI Ready: 8-layer routing for high-speed autonomous processors.

• Extreme Shielding: Elite EMI/EMC protection for critical car systems.

• Rugged Build: IATF 16949 compliant for maximum outdoor durability.

Engineering Support: DFM (Design for Manufacturing) check before production.

Testing: Flying Probe Test, Fixture Test, Impedance Control Test, Thermal Stress Test.

“ Instant PCB(1-38 layers)”--PCBgate

PCBgate is a professional PCB manufacturer providing high-quality printed circuit boards for global electronics industries.

We are capable of manufacturing a wide range of PCB types to meet different application requirements, including:FR-4 PCBs,ceramic PCBs,carbon oil PCBs,Aluminum PCBs,Flexible & Rigid-Flex PCBs.

We specialize in 8-layer High-Order Automotive HDI PCB manufacturing, providing the perfect balance between sophisticated circuitry and vehicle-grade robustness. By using Laser Direct Imaging (LDI) and high-speed laser drilling, we achieve the precise registration required for your advanced 2+N+2 and 3+N+3 stack-up designs.

This 8-layer structure is ideal for autonomous driving domains, smart cockpit controllers, and V2X modules. We ensure 100% E-test and AOI inspection to guarantee that every board meets the highest industrial standards for signal stability and performance.

We support HDI PCB prototypes, small-batch production, and mass production to meet different customer requirements, helping you accelerate your product's time-to-market.

Our PCB manufacturing capability includes:

• Fine Line Technology: Min. Trace/Space down to 0.075mm / 0.075mm

• Blind & Buried Vias: Professional via-in-pad and resin filling processes

• High-End Materials: High-TG, Low-Loss, and Halogen-free laminates

• Surface Finishes: ENIG, ENEPIG, and OSP for superior soldering

• Complex Stack-ups: Multilayer HDI integration up to 20+ layers

• Rigorous Testing: AOI, Micro-sectioning, and Impedance Control

Attention: pictures are for reference only. The specific products are subject to the original factory model.

Standard Packaging: Inner Vacuum Packaging + Outer Carbon Box.

Delivery Partners: EMS,DHL,SF-express, FedEx, UPS or Sea/Air Freight for bulk orders.

• 15 years of experience in PCB manufacturing.

• Advanced Equipment: Equipped with high-speed CNC drilling machines and AOI testing lines.

• Professional engineering support

• Fast prototype delivery

• Global customers from Europe, USA and Asia

• Own Global Supply System.

• Fast and safe way by EMS/DHL/SF-express/Fedex,etc.

• New styles updating everyday and MOQ for all the styles;

1. What's your MOQ and what is PCBgate's fastest delivery time?

A: Our MOQ is Minimum packaging quantity, please contact us for details. Sample to mass production all can be supported by PCBgate.

2. Which payment terms does PCBgate accept?

A:Advance T/T,Western Union,Paypal, L/C,Credit Card, Cheque,Money Gram and Others.

3.What files are required for PCB quotation?

A:Gerber files, PCB specifications and quantity.

4. How to test PCB boards?

A: AOI, Fly probe testing, Text fixture testing, FOC etc. For bare PCB.

Shipping Information

Welcome to send us your PCB Gerber files for quotation.

Our engineering team will respond within 24 hours.
