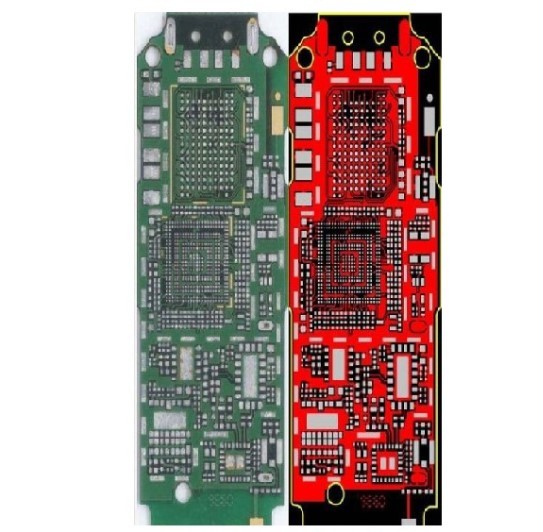

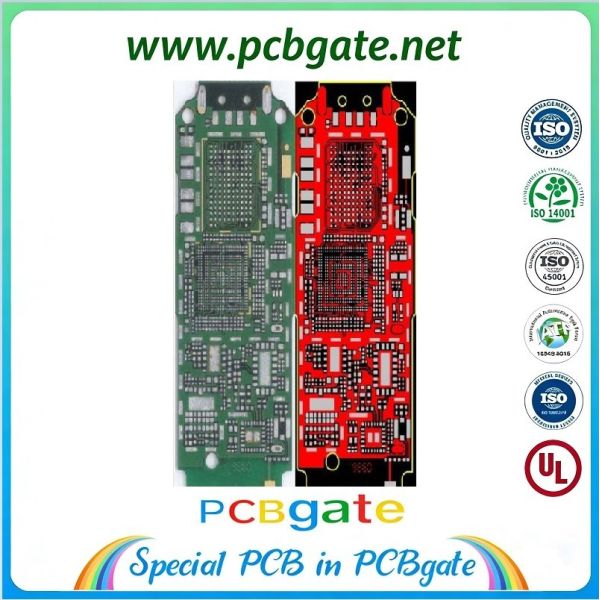

8-Layer AI Smart Glasses PCB: High-Order HDI Wearable Tech

Product Overview:

Our 8-layer HDI PCBs are the definitive choice for premium AI smart glasses and high-performance AR wearables. Engineered with high-order laser micro-via structures, these boards support the intensive data throughput required for real-time AI vision, spatial audio, and seamless wireless connectivity. Despite the complex 8-layer stack-up, our ultra-thin manufacturing process ensures the PCB fits perfectly into slim, ergonomic frames. With exceptional thermal dissipation and signal isolation, our boards provide the stable, high-speed foundation necessary for the next leap in intelligent eyewear.

Key Selling Points:

• High-Speed AI: 8-layer routing for real-time vision & voice processing.

• Extreme Slim: High-order HDI technology for ultra-thin wearable frames.

• Pure Signal: Precision impedance control for low-latency AR/VR data.

Engineering Support: DFM (Design for Manufacturing) check before production.

Testing: Flying Probe Test, Fixture Test, Impedance Control Test, Thermal Stress Test.

“ Instant PCB(1-38 layers)”--PCBgate

PCBgate is a professional PCB manufacturer providing high-quality printed circuit boards for global electronics industries.

We are capable of manufacturing a wide range of PCB types to meet different application requirements, including:FR-4 PCBs,ceramic PCBs,carbon oil PCBs,Aluminum PCBs,Flexible & Rigid-Flex PCBs.

We specialize in 8-layer HDI smart eyewear PCB manufacturing, providing the perfect balance between high-order complexity and extreme space efficiency. By using Laser Direct Imaging (LDI) and high-speed laser drilling, we achieve the precise registration required for your advanced 0.35mm pitch BGA and multi-sensor designs.

This 8-layer structure is ideal for AI smart glasses, AR/VR displays, and high-end medical wearables. We ensure 100% E-test and AOI inspection to guarantee that every board meets the highest industrial standards for signal stability and performance.

We support HDI PCB prototypes, small-batch production, and mass production to meet different customer requirements, helping you accelerate your product's time-to-market.

Our PCB manufacturing capability includes:

• Fine Line Technology: Min. Trace/Space down to 0.075mm / 0.075mm

• Blind & Buried Vias: Professional via-in-pad and resin filling processes

• High-End Materials: High-TG, Low-Loss, and Halogen-free laminates

• Surface Finishes: ENIG, ENEPIG, and OSP for superior soldering

• Complex Stack-ups: Multilayer HDI integration up to 20+ layers

• Rigorous Testing: AOI, Micro-sectioning, and Impedance Control

Attention: pictures are for reference only. The specific products are subject to the original factory model.

Standard Packaging: Inner Vacuum Packaging + Outer Carbon Box.

Delivery Partners: EMS,DHL,SF-express, FedEx, UPS or Sea/Air Freight for bulk orders.

• 15 years of experience in PCB manufacturing.

• Advanced Equipment: Equipped with high-speed CNC drilling machines and AOI testing lines.

• Professional engineering support

• Fast prototype delivery

• Global customers from Europe, USA and Asia

• Own Global Supply System.

• Fast and safe way by EMS/DHL/SF-express/Fedex,etc.

• New styles updating everyday and MOQ for all the styles;

1. What's your MOQ and what is PCBgate's fastest delivery time?

A: Our MOQ is Minimum packaging quantity, please contact us for details. Sample to mass production all can be supported by PCBgate.

2. Which payment terms does PCBgate accept?

A:Advance T/T,Western Union,Paypal, L/C,Credit Card, Cheque,Money Gram and Others.

3.What files are required for PCB quotation?

A:Gerber files, PCB specifications and quantity.

4. How to test PCB boards?

A: AOI, Fly probe testing, Text fixture testing, FOC etc. For bare PCB.

Shipping Information

Welcome to send us your PCB Gerber files for quotation.

Our engineering team will respond within 24 hours.
