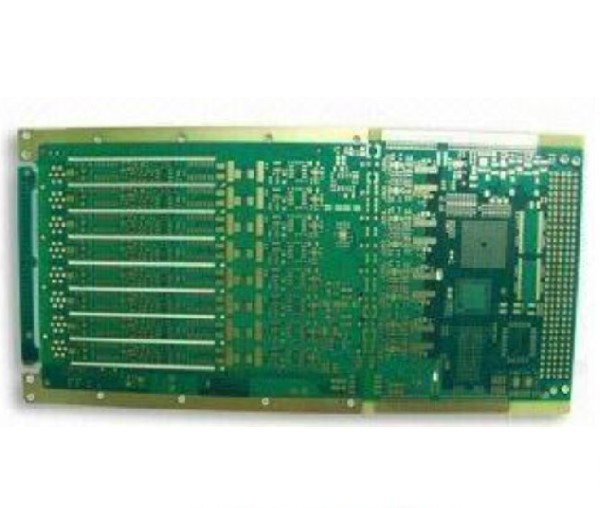

10-Layer Any-Layer HDI PCB | Ultra-Precise Medical Interconnect

Product Overview:

Our 10-layer HDI PCBs represent the pinnacle of miniaturization and complex signal routing for the high-end medical industry. By utilizing advanced Any-Layer Interconnect technology and high-precision laser drilling, we enable the integration of massive data processing power within ultra-compact medical devices. These boards are specifically designed for low-latency signal transmission and superior electromagnetic isolation, crucial for real-time surgical imaging and AI-driven diagnostics. Built to the most rigorous healthcare standards, our 10-layer HDI solutions offer unmatched reliability and thermal efficiency for life-critical medical innovations.

Key Selling Points:

• Any-Layer Tech: 10-layer high-density interconnect for elite AI medical chips.

• Clinical Precision: Superior signal integrity for high-definition diagnostic imaging.

• Certified Safety: Full IPC Class 3 & ISO 13485 compliance for life-support.

Engineering Support: DFM (Design for Manufacturing) check before production.

Testing: Flying Probe Test, Fixture Test, Impedance Control Test, Thermal Stress Test.

“ Instant PCB(1-38 layers)”--PCBgate

PCBgate is a professional PCB manufacturer providing high-quality printed circuit boards for global electronics industries.

We are capable of manufacturing a wide range of PCB types to meet different application requirements, including:FR-4 PCBs,ceramic PCBs,carbon oil PCBs,Aluminum PCBs,Flexible & Rigid-Flex PCBs.

We specialize in 10-layer Any-Layer HDI medical PCB manufacturing, providing the perfect balance between extreme circuitry density and clinical-grade stability. By using Laser Direct Imaging (LDI) and high-speed laser drilling, we achieve the precise registration required for your advanced 0.3mm pitch BGA and Any-Layer stack-up designs.

This 10-layer structure is ideal for high-end MRI/CT scanners, remote surgical systems, and genomic sequencing platforms. We ensure 100% E-test and AOI inspection to guarantee that every board meets the highest industrial standards for signal stability and performance.

We support HDI PCB prototypes, small-batch production, and mass production to meet different customer requirements, helping you accelerate your product's time-to-market.

Our PCB manufacturing capability includes:

• Fine Line Technology: Min. Trace/Space down to 0.075mm / 0.075mm

• Blind & Buried Vias: Professional via-in-pad and resin filling processes

• High-End Materials: High-TG, Low-Loss, and Halogen-free laminates

• Surface Finishes: ENIG, ENEPIG, and OSP for superior soldering

• Complex Stack-ups: Multilayer HDI integration up to 20+ layers

• Rigorous Testing: AOI, Micro-sectioning, and Impedance Control
