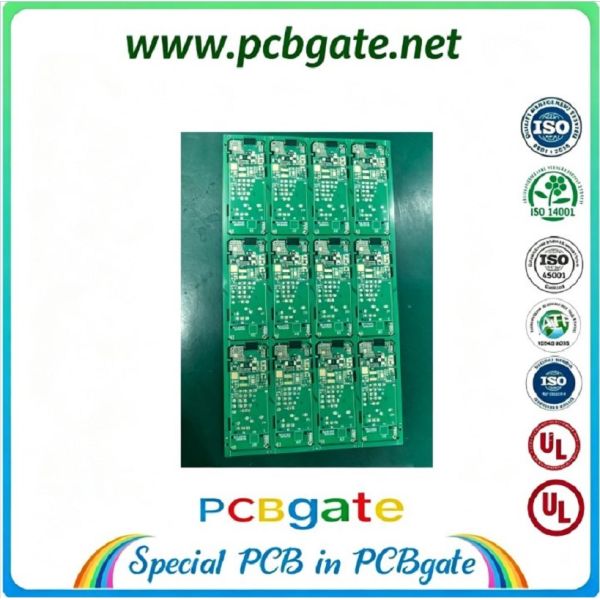

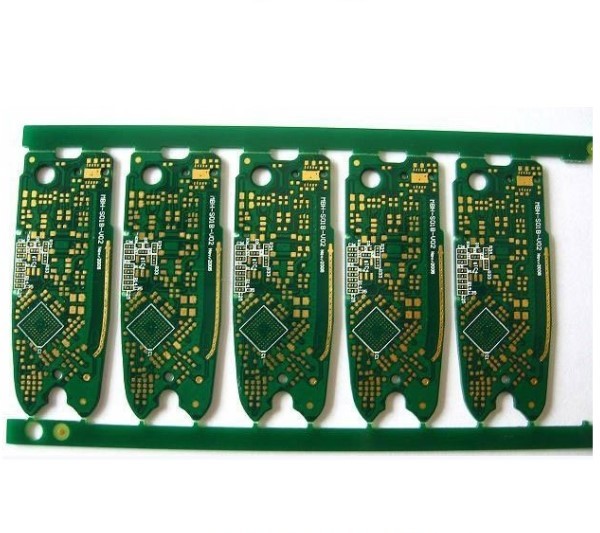

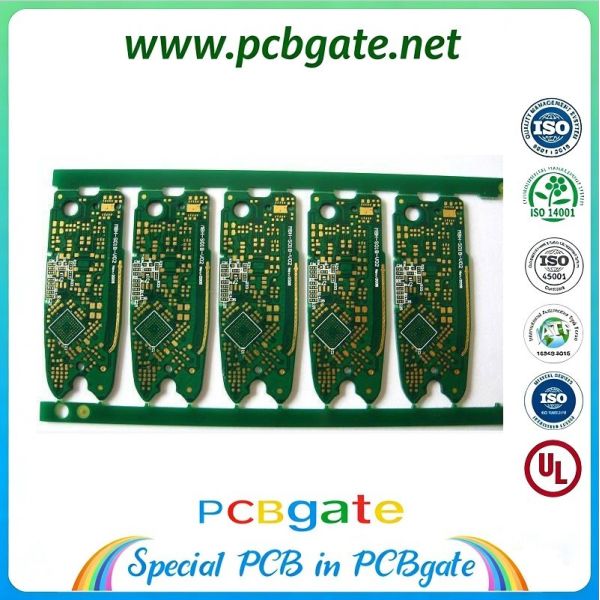

8-Layer Elite Medical HDI PCB: High-Order Clinical Mainboard

Product Overview:

Our 8-layer HDI PCBs are the gold standard for high-performance medical systems requiring extreme data throughput and signal precision. By implementing high-order 2+N+2 or 3+N+3 laser micro-via structures, we enable the dense integration of high-speed FPGA and AI processors within compact medical hardware. These boards are designed with advanced noise-isolation layers to protect sensitive diagnostic signals from electromagnetic interference. Built to rigorous ISO 13485 standards, our 8-layer HDI solutions provide the fail-safe reliability and thermal stability essential for life-critical surgical equipment and advanced medical imaging platforms.

Key Selling Points:

• Elite Precision: 8-layer high-order HDI for advanced medical AI.

• Fail-Safe Quality: 100% rigorous testing for life-critical devices.

• Maximum Shielding: Superior EMC design for sensitive bio-diagnostics.

Engineering Support: DFM (Design for Manufacturing) check before production.

Testing: Flying Probe Test, Fixture Test, Impedance Control Test, Thermal Stress Test.

“ Instant PCB(1-38 layers)”--PCBgate

PCBgate is a professional PCB manufacturer providing high-quality printed circuit boards for global electronics industries.

We are capable of manufacturing a wide range of PCB types to meet different application requirements, including:FR-4 PCBs,ceramic PCBs,carbon oil PCBs,Aluminum PCBs,Flexible & Rigid-Flex PCBs.

We specialize in 8-layer High-Order Medical HDI PCB manufacturing, providing the perfect balance between sophisticated circuitry and extreme clinical reliability. By using Laser Direct Imaging (LDI) and high-speed laser drilling, we achieve the precise registration required for your advanced 0.35mm pitch BGA and high-speed differential pair designs.

This 8-layer structure is ideal for surgical robotics, high-end ultrasound systems, and DNA sequencers. We ensure 100% E-test and AOI inspection to guarantee that every board meets the highest industrial standards for signal stability and performance.

We support HDI PCB prototypes, small-batch production, and mass production to meet different customer requirements, helping you accelerate your product's time-to-market.

Our PCB manufacturing capability includes:

• Fine Line Technology: Min. Trace/Space down to 0.075mm / 0.075mm

• Blind & Buried Vias: Professional via-in-pad and resin filling processes

• High-End Materials: High-TG, Low-Loss, and Halogen-free laminates

• Surface Finishes: ENIG, ENEPIG, and OSP for superior soldering

• Complex Stack-ups: Multilayer HDI integration up to 20+ layers

• Rigorous Testing: AOI, Micro-sectioning, and Impedance Control

Attention: pictures are for reference only. The specific products are subject to the original factory model.

Standard Packaging: Inner Vacuum Packaging + Outer Carbon Box.

Delivery Partners: EMS,DHL,SF-express, FedEx, UPS or Sea/Air Freight for bulk orders.

• 15 years of experience in PCB manufacturing.

• Advanced Equipment: Equipped with high-speed CNC drilling machines and AOI testing lines.

• Professional engineering support

• Fast prototype delivery

• Global customers from Europe, USA and Asia

• Own Global Supply System.

• Fast and safe way by EMS/DHL/SF-express/Fedex,etc.

• New styles updating everyday and MOQ for all the styles;
