Advanced HDI Flexible PCB | High-Density Multi-Layer FPC

Product Overview:

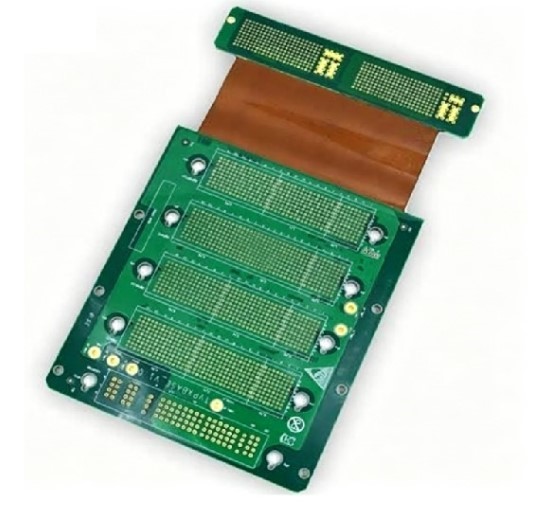

Our HDI Flexible PCBs combine high-density interconnection technology with superior mechanical flexibility, making them the ultimate solution for compact, foldable, and dynamic electronic designs. By utilizing polyimide (PI) substrates and precision laser micro-via technology, we enable complex circuit routing in extremely thin profiles. These boards offer exceptional signal integrity and durability under repeated bending, perfect for high-end smartphones, medical wearables, and aerospace instrumentation where space is at a premium and reliability is critical.

Key Selling Points:

• Ultra-Flexible: High-density routing for dynamic folding apps.

• Space-Saving: Slim profile with laser-drilled micro-vias.

• Reliable Signal: Advanced PI materials for low-loss transmission.

Engineering Support: DFM (Design for Manufacturing) check before production.

Testing: Flying Probe Test, Fixture Test, Impedance Control Test, Thermal Stress Test.

“ Instant PCB(1-38 layers)”--PCBgate

PCBgate is a professional PCB manufacturer providing high-quality printed circuit boards for global electronics industries.

We are capable of manufacturing a wide range of PCB types to meet different application requirements, including:FR-4 PCBs,ceramic PCBs,carbon oil PCBs,Aluminum PCBs,Flexible & Rigid-Flex PCBs.

We specialize in HDI Flexible PCB manufacturing, providing the perfect balance between ultra-thin flexibility and high-density complexity. By using Laser Direct Imaging (LDI) and high-speed laser drilling, we achieve the precise registration required for your advanced multi-layer flex designs.

This HDI-FPC structure is ideal for foldable devices, medical sensors, and high-end camera modules. We ensure 100% E-test and AOI inspection to guarantee that every board meets the highest industrial standards for bending endurance and electrical performance.

We support HDI PCB prototypes, small-batch production, and mass production to meet different customer requirements, helping you accelerate your product's time-to-market.

Our PCB manufacturing capability includes:

• Fine Line Technology: Min. Trace/Space down to 0.075mm / 0.075mm

• Blind & Buried Vias: Professional via-in-pad and resin filling processes

• High-End Materials: High-TG, Low-Loss, and Halogen-free laminates

• Surface Finishes: ENIG, ENEPIG, and OSP for superior soldering

• Complex Stack-ups: Multilayer HDI integration up to 20+ layers

• Rigorous Testing: AOI, Micro-sectioning, and Impedance Control

Attention: pictures are for reference only. The specific products are subject to the original factory model.

Standard Packaging: Inner Vacuum Packaging + Outer Carbon Box.

Delivery Partners: EMS,DHL,SF-express, FedEx, UPS or Sea/Air Freight for bulk orders.

• 15 years of experience in PCB manufacturing.

• Advanced Equipment: Equipped with high-speed CNC drilling machines and AOI testing lines.

• Professional engineering support

• Fast prototype delivery

• Global customers from Europe, USA and Asia

• Own Global Supply System.

• Fast and safe way by EMS/DHL/SF-express/Fedex,etc.

• New styles updating everyday and MOQ for all the styles;
