Precision 6-Layer HDI PCB | Ultra-Compact Hearing Aid Design

Product Overview:

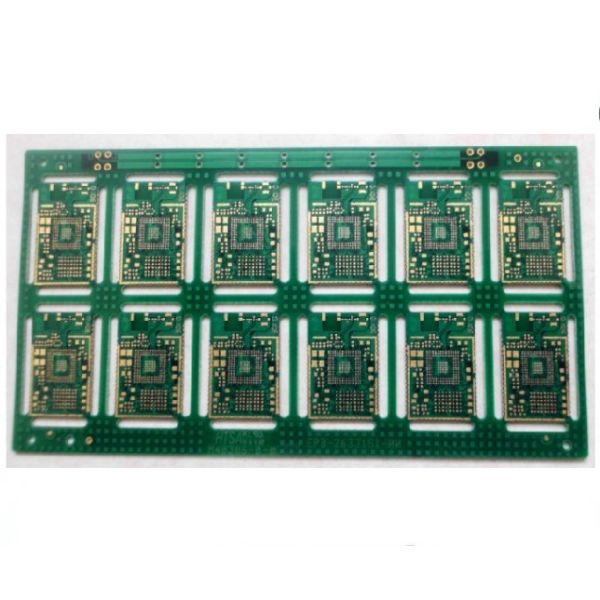

Our 6-layer HDI PCBs represent the pinnacle of miniaturization for the modern hearing aid industry. By integrating advanced multi-layer laser micro-via technology, we enable high-density routing of complex DSP circuits in a footprint smaller than a fingernail. These boards are engineered for exceptional signal-to-noise ratios, ensuring crystal-clear audio processing and low power consumption. With superior thermal stability and moisture resistance, our HDI solutions provide the reliable foundation required for high-end medical wearables and invisible-in-canal (IIC) devices.

Key Selling Points:

• Extreme Scale: 6-layer HDI structure for invisible wearable tech.

• Audio Clarity: Low-noise routing for high-fidelity DSP processing.

• Medical Reliability: 100% AOI & E-test for life-critical performance.

Engineering Support: DFM (Design for Manufacturing) check before production.

Testing: Flying Probe Test, Fixture Test, Impedance Control Test, Thermal Stress Test.

“ Instant PCB(1-38 layers)”--PCBgate

PCBgate is a professional PCB manufacturer providing high-quality printed circuit boards for global electronics industries.

We are capable of manufacturing a wide range of PCB types to meet different application requirements, including:FR-4 PCBs,ceramic PCBs,carbon oil PCBs,Aluminum PCBs,Flexible & Rigid-Flex PCBs.

We specialize in 6-layer HDI medical PCB manufacturing, providing the perfect balance between complexity and extreme space efficiency. By using Laser Direct Imaging (LDI) and high-speed laser drilling, we achieve the precise registration required for your advanced 1+N+1 and 2+N+2 designs.

This 6-layer structure is ideal for digital hearing aids, cochlear implants, and miniature medical sensors. We ensure 100% E-test and AOI inspection to guarantee that every board meets the highest industrial standards for signal stability and performance.

We support HDI PCB prototypes, small-batch production, and mass production to meet different customer requirements, helping you accelerate your product's time-to-market.

Our PCB manufacturing capability includes:

• Fine Line Technology: Min. Trace/Space down to 0.075mm / 0.075mm

• Blind & Buried Vias: Professional via-in-pad and resin filling processes

• High-End Materials: High-TG, Low-Loss, and Halogen-free laminates

• Surface Finishes: ENIG, ENEPIG, and OSP for superior soldering

• Complex Stack-ups: Multilayer HDI integration up to 20+ layers

• Rigorous Testing: AOI, Micro-sectioning, and Impedance Control

Attention: pictures are for reference only. The specific products are subject to the original factory model.

Standard Packaging: Inner Vacuum Packaging + Outer Carbon Box.

Delivery Partners: EMS,DHL,SF-express, FedEx, UPS or Sea/Air Freight for bulk orders.

• 15 years of experience in PCB manufacturing.

• Advanced Equipment: Equipped with high-speed CNC drilling machines and AOI testing lines.

• Professional engineering support

• Fast prototype delivery

• Global customers from Europe, USA and Asia

• Own Global Supply System.

• Fast and safe way by EMS/DHL/SF-express/Fedex,etc.

• New styles updating everyday and MOQ for all the styles;
