Metallurgy Factory Double Girder Steel Mill Overhead Cranes For Ladle 25 Ton
Metallurgy Factory Double Girder Steel Mill Overhead Cranes For Ladle 25 Ton
Metallurgy Factory Double Girder Steel Mill Overhead Cranes For Ladle 25 Ton
Metallurgy Factory Double Girder Steel Mill Overhead Cranes For Ladle 25 Ton
Specifications
Brand Name :
KORIG
Model Number :
QDY/YZ
Certification :
ISO SGS CE
Place of Origin :
China
MOQ :
1 Set
Price :
100,000~500,000 USD/Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 Set/Year
Delivery Time :
90 Days
Packaging Details :
Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
Product Name :
25 Ton Double Girder Bridge Casting Crane For Ladle
Main Lifting Capacity :
25 ton
Span :
16.5~34.5 m
Ambient Temperature :
-20℃ to +60℃
Control :
Cabin
Work Duty :
A6~A8
Application :
Steel Making
Lifting Speed :
0-8 m/min(Variable Frequency Drive)
Cross Traveling Speed :
0-25 m/min(Variable Frequency Drive)
Longitude Traveling Speed :
0-63 m/min(Variable Frequency Drive)
Description

Metallurgy Factory Double Girder Steel Mill Overhead Cranes For Ladle 25 Ton

Metallurgy bridge crane Description

Metallurgy factory double beam casting overhead crane has been widely used in metallurgical industry, which is of great importance to deal with the complex environment of metallurgical industry, reduce labor intensity and improve production efficiency.The main production workshops of metallurgical factories are equipped with all kinds of special bridge cranes specially designed for metallurgical process operation, which are usually installed and tested before the main process equipment is put in place.

Metallurgy bridge crane is one of the main production equipment, smelting workshop in converter workshop with the crane will be shipped from blast furnace workshop of molten iron into the mixer to the mixer and the molten iron or shipped from blast furnace workshop of molten iron directly into the converter, the crane is equipped with independent drive, vice car, the car setting fixed spacing of longmen hook, lifting ladle. The auxiliary trolley can be used to tilt the steel bucket or do other auxiliary lifting operations. The crane adopts closed slant rail box girder, so it has good vertical and horizontal rigidity.

Metallurgy bridge crane Specification

Lifting Capacity

t

10

16

20

25

32

50

74

Span

m

16.5~34.5

Lifting Height

m

10~20

Crane Duty

GB

A6~A8

Lifting Speed

m/min

0~8

0~8

0~8

0~8

0~8

0~6.3

0~5

Cross Travel Speed

m/min

0~25

0~25

0~25

0~25

0~25

0~25

0~25

Long Travel Speed

m/min

0~63

0~63

0~63

0~63

0~63

0~63

0~63

Control Method

/

Automatic, Manual, Semi-Automatic

Metallurgy bridge crane Characteristics

1. Heavy duty

2. Long service life

3. Redundancy design, more safe

4. Stepless control, smooth movements

5. Heat resistance, dust proof

6. PLC control

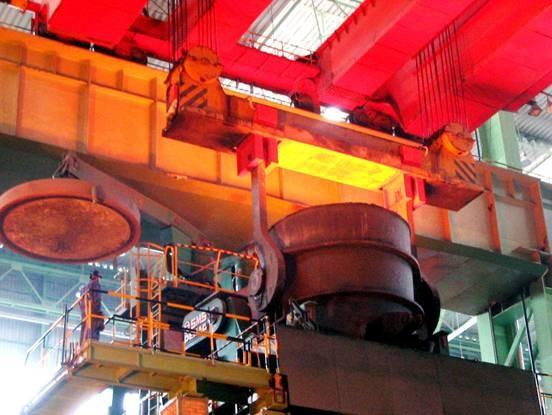

Metallurgy bridge crane Photos

Metallurgy Factory Double Girder Steel Mill Overhead Cranes For Ladle 25 Ton

Metallurgy Factory Double Girder Steel Mill Overhead Cranes For Ladle 25 Ton
