74 / 20 t QDY Double Girder Overhead Cast Crane For Steel Plant
74 / 20 t QDY Double Girder Overhead Cast Crane For Steel Plant
74 / 20 t QDY Double Girder Overhead Cast Crane For Steel Plant
74 / 20 t QDY Double Girder Overhead Cast Crane For Steel Plant
Specifications
Brand Name :
KORIG
Model Number :
QDY/YZ
Certification :
ISO SGS CE
Place of Origin :
China
MOQ :
1 Set
Price :
100,000~500,000 USD/Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 Set/Year
Delivery Time :
90 Days
Packaging Details :
Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
Product Name :
74/20t Steel Mill Cranes
Main Lifting Capacity :
74 ton
Span :
16.5~34.5 m
Ambient Temperature :
-20℃ to +60℃
Control :
Cabin
Work Duty :
A6~A8
Application :
Steel Making
Lifting Speed :
0-5 m/min(Variable Frequency Drive)
Cross Traveling Speed :
0-25 m/min(Variable Frequency Drive)
Longitude Traveling Speed :
0-63 m/min(Variable Frequency Drive)
Description


74 / 20 T QDY Double Girder Overhead Cast Crane For Steel Plant

Steel Mill Cranes Description

QDY type Top quality heavy duty double girder electric overhead ladle crane for steel factory is composed of boxed bridge frame, hook, crane travelling mechanism and electric system. The main hook employs a load tool as the lifting device to hoist steel ladle, the auxiliary hook cooperate with the main hook to accomplish pouring of molten steel and steel slag, and other auxiliary hoisting.

Steel Mill Cranes Specification

Lifting Capacity t 10 16 20 25 32 50 74
Span m 16.5~34.5
Lifting Height m 10~20
Crane Duty GB A6~A8
Lifting Speed m/min 0~8 0~8 0~8 0~8 0~8 0~6.3 0~5
Cross Travel Speed m/min 0~25 0~25 0~25 0~25 0~25 0~25 0~25
Long Travel Speed m/min 0~63 0~63 0~63 0~63 0~63 0~63 0~63
Control Method / Automatic, Manual, Semi-Automatic


Steel Mill Cranes Characteristics

1. Heavy duty
2. Long service life
3. Redundancy design, more safe
4. Stepless control, smooth movements
5. Heat resistance, dust proof
6. PLC control

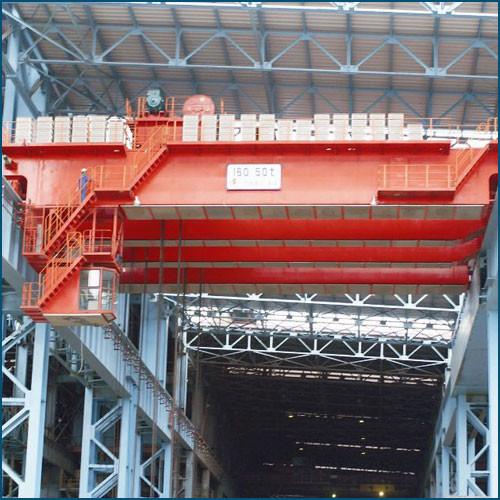

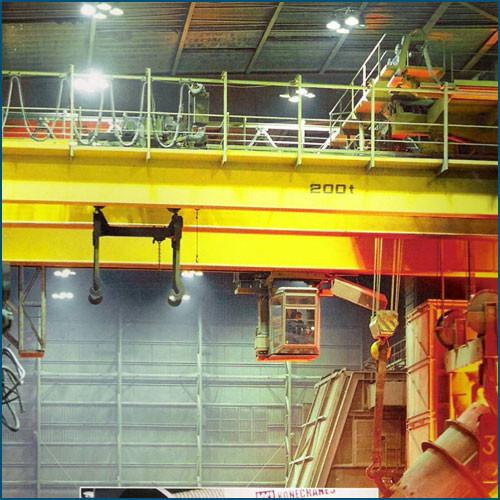

Steel Mill Cranes Spreader Photos

74 / 20 t QDY Double Girder Overhead Cast Crane For Steel Plant
74 / 20 t QDY Double Girder Overhead Cast Crane For Steel Plant
