QDY Type 35 Ton 50 Ton 74 Ton Double Beam Bridge Foundry Crane With Cabin Control
QDY Type 35 Ton 50 Ton 74 Ton Double Beam Bridge Foundry Crane With Cabin Control
QDY Type 35 Ton 50 Ton 74 Ton Double Beam Bridge Foundry Crane With Cabin Control
QDY Type 35 Ton 50 Ton 74 Ton Double Beam Bridge Foundry Crane With Cabin Control
QDY Type 35 Ton 50 Ton 74 Ton Double Beam Bridge Foundry Crane With Cabin Control
QDY Type 35 Ton 50 Ton 74 Ton Double Beam Bridge Foundry Crane With Cabin Control
Specifications
Brand Name :
KORIG
Model Number :
QDY/YZ
Certification :
ISO SGS CE
Place of Origin :
China
MOQ :
1 Set
Price :
100,000~500,000 USD/Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 Set/Year
Delivery Time :
90 Days
Packaging Details :
Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
Product Name :
QDY type overhead ladle crane
Main Lifting Capacity :
20 ton
Span :
16.5~34.5 m
Ambient Temperature :
-20℃ to +60℃
Control :
Cabin
Work Duty :
A6~A8
Application :
Steel Making
Lifting Speed :
0-5 m/min(Variable Frequency Drive)
Cross Traveling Speed :
0-25 m/min(Variable Frequency Drive)
Longitude Traveling Speed :
0-63 m/min(Variable Frequency Drive)
Description


QDY Type 35 ton 50 ton 74 ton Double Beam Bridge Foundry Crane with Cabin Control

QDY type overhead ladle crane Description

QDY type Top quality heavy duty double girder electric overhead ladle crane for steel factory travelling mechanism and main electric equipment are installed in the boxed girder, which employs rock wool for heat insulation, and has an air cooler inside. To reduce heat radiation of molten structural members, a thermal baffle is set along the span direction at the bottom of the girder

QDY type overhead ladle crane Specification

Lifting Capacityt10162025325074
Spanm16.5~34.5
Lifting Heightm10~20
Crane DutyGBA6~A8
Lifting Speedm/min0~80~80~80~80~80~6.30~5
Cross Travel Speedm/min0~250~250~250~250~250~250~25
Long Travel Speedm/min0~630~630~630~630~630~630~63
Control Method/Automatic, Manual, Semi-Automatic


QDY type overhead ladle crane Characteristics

1. Heavy duty
2. Long service life
3. Redundancy design, more safe
4. Stepless control, smooth movements
5. Heat resistance, dust proof
6. PLC control

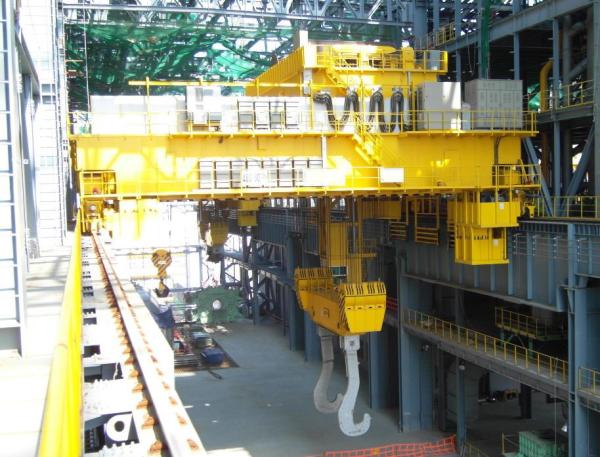

QDY type overhead ladle crane Spreader Photos

QDY Type 35 Ton 50 Ton 74 Ton Double Beam Bridge Foundry Crane With Cabin Control
QDY Type 35 Ton 50 Ton 74 Ton Double Beam Bridge Foundry Crane With Cabin Control
