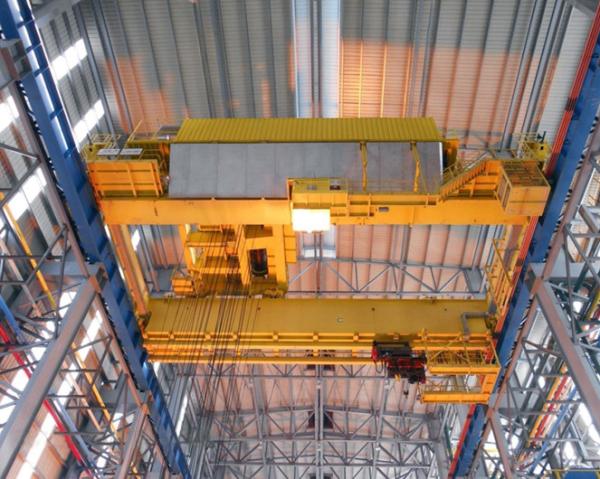

Heavy Duty 120 T Metallurgical Industry Casting Double Girder Bridge Crane
Heavy Duty 120 T Metallurgical Industry Casting Double Girder Bridge Crane
Heavy Duty 120 T Metallurgical Industry Casting Double Girder Bridge Crane
Heavy Duty 120 T Metallurgical Industry Casting Double Girder Bridge Crane
Heavy Duty 120 T Metallurgical Industry Casting Double Girder Bridge Crane
Heavy Duty 120 T Metallurgical Industry Casting Double Girder Bridge Crane
Specifications
Brand Name :
KORIG
Model Number :
QDY/YZ
Certification :
ISO SGS CE
Place of Origin :
China
MOQ :
1 Set
Price :
100,000~500,000 USD/Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 Set/Year
Delivery Time :
90 Days
Packaging Details :
Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
Name :
120 T Metallurgical Industry Casting Crane
Main Lifting Capacity :
150 ton
Span :
16.5~34.5 m
Ambient Temperature :
-20℃ to +60℃
Control :
Cabin
Work Duty :
A6~A8
Application :
Steel Making
Lifting Speed :
0-5 m/min(Variable Frequency Drive)
Cross Traveling Speed :
0-25 m/min(Variable Frequency Drive)
Longitude Traveling Speed :
0-63 m/min(Variable Frequency Drive)
Description

Heavy Duty 120 T Metallurgical Industry Casting Double Girder Bridge Crane

Metallurgical Industry Casting Crane Description

QDY double-girder bridge-type casting crane is one of the main equipment in the continuous casting process of iron and steel manufacturing. It is mainly used for smelting metal transportation, casting and molten iron charging.

QDY double-girder bridge-type casting crane is composed of box-type bridge frame, hook, crane operating mechanism and electrical system. The main hook adopts the carrying tool as the hoisting device for hoisting the ladle, and the auxiliary hook cooperates with the main hook to complete auxiliary hoisting such as pouring of molten steel and steel slag.

The operating mechanism and main electrical equipment of the QDY double-girder bridge casting crane are installed in the box girder, which is insulated with rock wool and has an air cooler inside. In order to reduce the heat radiation of the molten structural parts, heat insulation boards are installed along the span direction at the bottom of the main girder.

Metallurgical Industry Casting Crane Specification

Lifting Capacity t 10 16 20 25 32 50 74
Span m 16.5~34.5
Lifting Height m 10~20
Crane Duty GB A6~A8
Lifting Speed m/min 0~8 0~8 0~8 0~8 0~8 0~6.3 0~5
Cross Travel Speed m/min 0~25 0~25 0~25 0~25 0~25 0~25 0~25
Long Travel Speed m/min 0~63 0~63 0~63 0~63 0~63 0~63 0~63
Control Method / Automatic, Manual, Semi-Automatic

Metallurgical Industry Casting Crane Characteristics

1. Heavy duty

2. Long service life

3. Redundancy design, more safe

4. Stepless control, smooth movements

5. Heat resistance, dust proof

6. PLC control

Metallurgical Industry Casting Crane Spreader Photos

Heavy Duty 120 T Metallurgical Industry Casting Double Girder Bridge Crane

Heavy Duty 120 T Metallurgical Industry Casting Double Girder Bridge Crane
