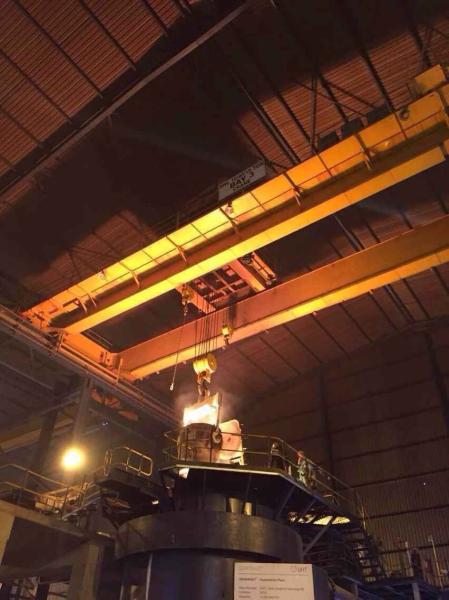

32 Ton Double Girder Overhead Foundry Crane For Steel Plant
32 Ton Double Girder Overhead Foundry Crane For Steel Plant
32 Ton Double Girder Overhead Foundry Crane For Steel Plant
32 Ton Double Girder Overhead Foundry Crane For Steel Plant
32 Ton Double Girder Overhead Foundry Crane For Steel Plant
32 Ton Double Girder Overhead Foundry Crane For Steel Plant
Specifications
Brand Name :
KORIG
Model Number :
QDY/YZ
Certification :
ISO SGS CE
Place of Origin :
China
MOQ :
1 Set
Price :
100,000~500,000 USD/Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 Set/Year
Delivery Time :
90 Days
Packaging Details :
Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
Product Name :
Double Girder Overhead Foundry Crane
Main Lifting Capacity :
32 ton
Span :
16.5~34.5 m
Ambient Temperature :
-20℃ to +60℃
Control :
Cabin
Work Duty :
A6~A8
Application :
Steel Making
Lifting Speed :
0-8 m/min(Variable Frequency Drive)
Cross Traveling Speed :
0-25 m/min(Variable Frequency Drive)
Longitude Traveling Speed :
0-63 m/min(Variable Frequency Drive)
Description

32 Ton Double Girder Overhead Foundry Crane For Steel Plant

Double Girder Overhead Foundry Crane Description

Ladle Handling Cranes are designed to operate efficiently, uninterrupted and safely in continuous use. The design meets the requirements of international standards.

Due to the high risk level, special safety features are designed for ladle cranes transporting molten metal. The main hoisting mechanism includes four independent rope winders, dual service brakes on the main shaft and a backup brake acting on the rope drum. The wire rope balance beam is equipped with a damping device that slows down the balance beam inclination in the event of a wire rope failure. The main hoist also uses an upper emergency stop limit switch. In addition to this overload protection, an "emergency stop" system bypassed from the PLC, derailment brackets, main crane overspeed monitoring and end limit switches are automatically standard features of the equipment.

Double Girder Overhead Foundry Crane Specification

Lifting Capacity t 10 16 20 25 32 50 74
Span m 16.5~34.5
Lifting Height m 10~20
Crane Duty GB A6~A8
Lifting Speed m/min 0~8 0~8 0~8 0~8 0~8 0~6.3 0~5
Cross Travel Speed m/min 0~25 0~25 0~25 0~25 0~25 0~25 0~25
Long Travel Speed m/min 0~63 0~63 0~63 0~63 0~63 0~63 0~63
Control Method / Automatic, Manual, Semi-Automatic

Double Girder Overhead Foundry Crane Characteristics

1. Heavy duty

2. Long service life

3. Redundancy design, more safe

4. Stepless control, smooth movements

5. Heat resistance, dust proof

6. PLC control

Double Girder Overhead Foundry Crane Spreader Photos

32 Ton Double Girder Overhead Foundry Crane For Steel Plant

32 Ton Double Girder Overhead Foundry Crane For Steel Plant
