Metallurgical Foundry Overhead Bridge Crane For Lifting Molten
Metallurgical Foundry Overhead Bridge Crane For Lifting Molten
Specifications
Brand Name :
KORIG
Model Number :
QDY/YZ
Certification :
ISO SGS CE
Place of Origin :
China
MOQ :
1 Set
Price :
100,000~500,000 USD/Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 Set/Year
Delivery Time :
90 Days
Packaging Details :
Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
Name :
Metallurgical Foundry Overhead Bridge Crane
Main Lifting Capacity :
200 ton
Span :
16.5~34.5 m
Ambient Temperature :
-20℃ to +60℃
Control :
Cabin
Work Duty :
A6~A8
Application :
Steel Making
Lifting Speed :
0-5 m/min(Variable Frequency Drive)
Cross Traveling Speed :
0-25 m/min(Variable Frequency Drive)
Longitude Traveling Speed :
0-63 m/min(Variable Frequency Drive)
Description


Metallurgical Foundry Overhead Bridge Crane For Lifting Molten

Metallurgical Foundry Overhead Bridge Crane Description

QDY double-girder bridge-type casting crane is one of the main equipments in the continuous casting process of steel manufacturing. It is mainly used for smelting metal transportation, casting and charging of molten iron.

QDY double-girder bridge-type casting crane consists of a box-type bridge frame, a hook, a crane operating mechanism and an electrical system. The main hook adopts the carrying tool as the hoisting device for hoisting the ladle, and the auxiliary hook cooperates with the main hook to complete the auxiliary lifting such as pouring of molten steel and steel slag.

Metallurgical Foundry Overhead Bridge Crane Specification

Lifting Capacity t 10 16 20 25 32 50 74
Span m 16.5~34.5
Lifting Height m 10~20
Crane Duty GB A6~A8
Lifting Speed m/min 0~8 0~8 0~8 0~8 0~8 0~6.3 0~5
Cross Travel Speed m/min 0~25 0~25 0~25 0~25 0~25 0~25 0~25
Long Travel Speed m/min 0~63 0~63 0~63 0~63 0~63 0~63 0~63
Control Method / Automatic, Manual, Semi-Automatic


Metallurgical Foundry Overhead Bridge Crane Characteristics

1. Heavy duty double beam overhead steel factory crane .
2. Special used in steel plant.
3. Smooth starting and stopping.
4. Safe and reliable traveling, long life.
5. Heat-resistant electrical equipment and wiring.
6. Crane drive: IP54 or IP44, level F insulation

7. High quality with competitive price.

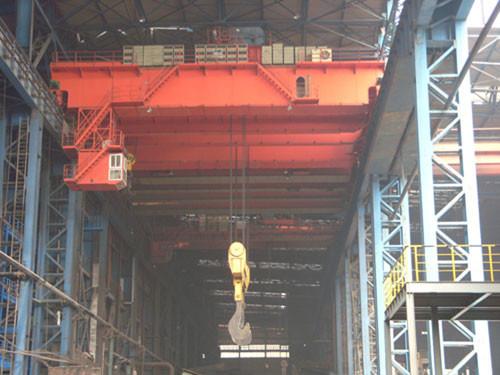

Metallurgical Foundry Overhead Bridge Crane Spreader Photos

Metallurgical Foundry Overhead Bridge Crane For Lifting Molten
Metallurgical Foundry Overhead Bridge Crane For Lifting Molten
