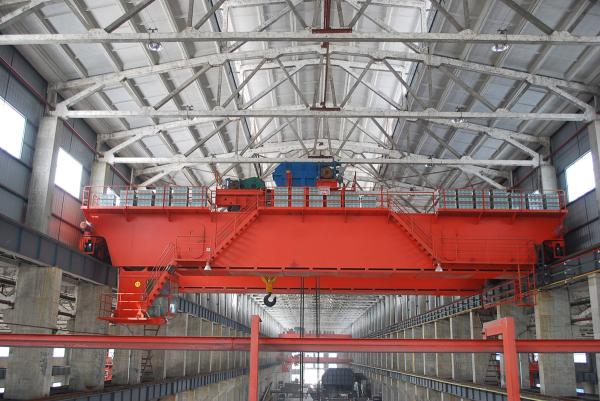

Foundry Usage QDY 50t 15t 10t 3t Overhead Bridge Ladle Crane Steel Plant
Foundry Usage QDY 50t 15t 10t 3t Overhead Bridge Ladle Crane Steel Plant
Foundry Usage QDY 50t 15t 10t 3t Overhead Bridge Ladle Crane Steel Plant
Foundry Usage QDY 50t 15t 10t 3t Overhead Bridge Ladle Crane Steel Plant
Specifications
Brand Name :
KORIG
Model Number :
QDY/YZ
Certification :
ISO SGS CE
Place of Origin :
China
MOQ :
1 Set
Price :
100,000~500,000 USD/Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 Set/Year
Delivery Time :
90 Days
Packaging Details :
Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
Product Name :
Foundry Usage QDY Overhead Bridge Ladle Crane
Lifting Capacity :
50t 15t 10t 3t
Span :
16.5~34.5 m
Ambient Temperature :
-20℃ to +60℃
Control :
Cabin
Work Duty :
A6~A8
Application :
Steel Making
Lifting Speed :
0-6.3 m/min(Variable Frequency Drive)
Cross Traveling Speed :
0-25 m/min(Variable Frequency Drive)
Longitude Traveling Speed :
0-63 m/min(Variable Frequency Drive)
Description


Foundry Usage QDY 50t 15t 10t 3t Overhead Bridge Ladle Crane Steel Plant

Foundry Usage QDY Overhead Bridge Ladle Crane Description

Due to the high risk level, special safety features are designed for ladle cranes transporting molten metal. The main hoist mechanism consists of four independent rope winders, dual service brakes on the main shaft and a backup brake acting on the rope drum. The wire rope balance beam is equipped with a damping device that slows down the balance beam inclination in the event of a wire rope failure. The main hoist also utilizes the upper emergency stop limit switch. In addition to this overload protection, an "emergency stop" system bypassed from the PLC, derailment brackets, main crane overspeed monitoring and end limit switches are automatically standard features of the equipment.

Foundry Usage QDY Overhead Bridge Ladle Crane Specification

Lifting Capacityt10162025325074
Spanm16.5~34.5
Lifting Heightm10~20
Crane DutyGBA6~A8
Lifting Speedm/min0~80~80~80~80~80~6.30~5
Cross Travel Speedm/min0~250~250~250~250~250~250~25
Long Travel Speedm/min0~630~630~630~630~630~630~63
Control Method/Automatic, Manual, Semi-Automatic


Foundry Usage QDY Overhead Bridge Ladle Crane Characteristics

1. heavy duty
2. Long service life
3. Redundant design, safer
4. Stepless control, stable action
5. Heat resistance and dust resistance
6, PLC control

Foundry Usage QDY Overhead Bridge Ladle Crane Spreader Photos

Foundry Usage QDY 50t 15t 10t 3t Overhead Bridge Ladle Crane Steel Plant
Foundry Usage QDY 50t 15t 10t 3t Overhead Bridge Ladle Crane Steel Plant
