Specifications
Brand Name :
KORIGCRANES
Certification :
ISO/CE
Place of Origin :
Henan, China
MOQ :
1 set
Price :
USD 50,000~200,0000 /SET
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 set per month
Delivery Time :
30 working days
Packaging Details :
Main beams are packaged by plastic cloth; Electric parts are packaged by fumigation wooden box.
name :
harbour portal crane
keywords :
dock gantry crane
type :
four link type
Feature :
Portal crane for port
Warranty :
12 months
Rated Load :
5~80t
Working radius :
45m
Control Method :
Cabin Control or Remote control
Lifting speed :
2m/min ~60m/min
Slewing speed :
0.3m/min~30m/min
Application :
Ship, shipyard, Vessel,Port, Seaport
Description

Four Link Type Portal Crane Mobile Harbour Portal Dock Crane 30ton

Four Link Type Portal Crane Information

The four link type shipyard Wharf Portal Crane is composed offrame, lifting mechanism, luffing mechanism, slewing mechanism, traveling mechanism, spreader device (grab, container spreader,hook), electrical equipment and other aiding devices for safety.

Portal Crane design and manufacturing standards: Specification for the harbor Wharf Portal Crane (GB/T17495-1998), Safety rules for lifting appliances (GB/T14406-1993); ISO standards, FEMstandards and JIS standards; CE Certificated Portal Crane has various applications, such as loading and unloading at port, materual handing atdockyard, ship building and repairing yard, metalluygy industry.

Four Link Type Portal Crane Features


1. Quickened the turnover and the operation of loading and unloading.
2. High working efficiency, compact frame,
3. Calm movement, comfortable operation, safety and reliable.
4. Convenience maintenance, nice appearance and so on
5. Crane drive: IP54 or IP44, level F insulation
6. Especially suitable for the port lifting.
8. Designed according to your request

Four-link Type Portal Crane

Type Cap(t) Max(m) Min(m) Up(m) Down(m) Span*Base Max wheel load
MQ0525 5 25 8 12 9 10.5*10.5 180
MQ1033 10 33 9.5 20 12 10.5*10.5 185
MQ1633 16 33 9.5 28 15 10.5*10.5 250
MQ2533 25 33 9.5 28 15 10.5*10.5 260
MQ3240 32 40 12 35 13 12*10.5 320
MQ4570 45 70 25 45 13 12*12 320
MQ5035 50 35 11.5 40 0 12*10.5 280

Single-jib Type Portal Crane

Type Cap(t) Max(m) Min(m) Up(m) Down(m) Span*Base Max wheel load
MQC0209 2 9 4 6 6 4.5*4.5 40
MQC0315 3.2 15 5.6 12 8 6*6 80
MQC0322 3.2 22 7 14 8 6*6 90
MQC0515 5 15 6 12 9 6*6 120
MQC0518 5 18 6 15 9 6*6 200
MQC0520 5 20 7.5 16 18 6*6 200
MQC3056 30 56 18 45 5 10*10.5 300
MQC4580 45 80 24 50 14 12*14 340
MQC5070 50 22 70 50 13 10.5*14 300
MQC6345 63 45 17 40 10 10*10.5 250

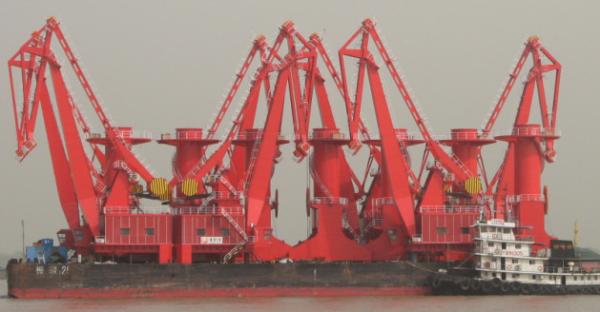

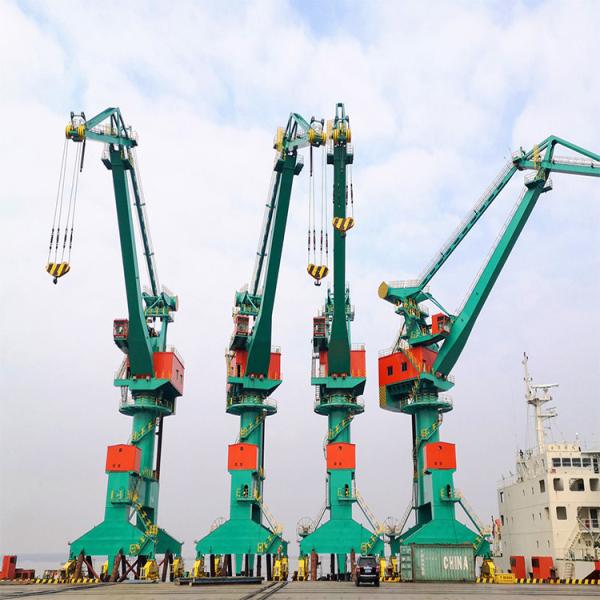

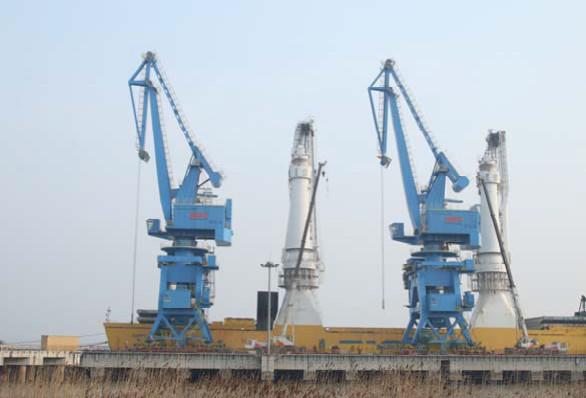

Four Link Type Portal Crane Photos

Cabin Control 30ton Harbour Portal Crane Dock Jib Gantry Crane Four Link TypeCabin Control 30ton Harbour Portal Crane Dock Jib Gantry Crane Four Link TypeCabin Control 30ton Harbour Portal Crane Dock Jib Gantry Crane Four Link Type
