Specifications
Brand Name :
KORIGCRANES
Model Number :
MQ
Certification :
CE,SGS,ISO
Place of Origin :
CHINA
MOQ :
1set
Price :
USD250000~USD 3000000
Payment Terms :
L/C, T/T, Western Union, D/P
Supply Ability :
10sets per month
Delivery Time :
4-6 months
Packaging Details :
Electrics parts, motor, reducer, wire rope, etc are packed in wooden box;
product name :
Single Jib Harbour Portal Crane
keywords :
Harbour Portal Crane
Capacity :
5-150tons
Lifting height :
10~50m
Working radius :
9~70m
Inverter,PLC brand :
Siemens, Schneider,ABB
Crane management system :
Included
Automatic operation :
Optional
Purpose :
Load/unload general cargo,container,bulk cargo, maintenance etc.
Application :
Jetty,port, shipyard
Description

5-150 Tons Single Jib Harbour Portal Crane In Shipyard And Port A6

Harbour Portal Crane Description

Marine single Portal Jib Crane is widely used in ports, wharves, storage yards and other places to complete the loading and unloading of ships and vehicles. Its design, manufacturing and inspection implement DIN, FEM, IEC, AWS, GB and other domestic and foreign advanced standards as well as the latest issued national standards.

The gantry crane is divided into two types, single boom and four connecting rods, according to the structure of the boom. Single boom gantry crane has simple structure, large lifting weight and light weight. The four-link gantry crane adopts the combination boom system to realize the horizontal movement of goods in the amplitude changing process. It has the characteristics of small horizontal drop, stable amplitude changing and low power consumption. The two types of gantry cranes can meet the requirements of general cargo, bulk cargo and container loading and unloading operation, with a wide range of applications, high efficiency, stable operation of the whole machine and so on.

Currently the main product specifications are MQ1025, MQ1030, MQ1625, MQ1630, MQ1635, MQ2525, MQ2530, MQ2535, MQ4025, MQ4030, MQ4035 single boom and four link gantry crane.

Harbour Portal Crane Features

Single boom portal jib crane, also called “Level luffing portal crane” is mainly used for loading and unloading of general cargo or bulk cargo in port, jetty, river terminal, or ship building in shipyard. Its boom is single-lattice type.This model adopts two types luffing method:Rack and pinion luffing and Wire rope luffing (compensation for multiple pulley blocks). It can carry load luffing and make horizontal displacement. The crane can rotate 360°free with the combined action of lifting and luffing, and it runs smoothly.

The crane could use hook and grab, two purpose. Hook for general cargo load/unloading and grab is used for bulk cargo handling such as Wheat, corn, fertilizer, salt,sand, iron ore etc.The spreader beam is for load/unloading 20ft/40ft/45ft container. The work efficiency is high.

Harbour Portal Crane Technical Parameter Table

Unit

MQ530

MQ1033

MQ1633

MQ4030

MQ6030

MQ8040

Capacity

Ton

5

10

16

40

60

80

Working duty

A

A6

A6

A6

A6

A6

A6

Working radius

M

8.5-30

9-33

9-33

11-30

10-30

11-40

Lifting height above rail

M

25

25

25

25

30

40

Lifting height below rail

M

-15

-15

-15

-15

0

-15

Speed

Lifting speed

m/min

50

50

50

20

12

8

Luffing speed

m/min

50

50

50

24

15

15

Slewing speed

r/min

1.7

1.5

1.5

1.0

0.4

0.3

Traveling speed

m/min

25

25

25

25

25

25

End slewing radius

M

7.50

7.68

7.60

7.80

7.8

10.5

Gauge× Base

M

10.5×10.5

10.5×10.5

10.5×10.5

10.5×10.5

12×13

12×13

Max.wheel load

KN

185

225

250

250

250

280

Wheel Qty.

PCS

12

20

20

32

32

40

Power source

380V 50HZ 3Ph

6KV,3Ph

10Kv,3Ph

10KV,3Ph

Features of Portal Jib Crane

1. Sling spreader can be grab and hook, good adaptability, wide application;

2. All mechanism are interlock to ensure operation safety;

3. 360° slewing, wide working scope;

4. PLC control, AC frequency speed control, stable and reliable running;

5. Remote control in control room and automatic operation are available according to the requirement;

6. Adequate protection devices, communication and lighting system.

7.Crane Monitoring Management system (CMS) to monitor each mechanism working condition and fault diagnose

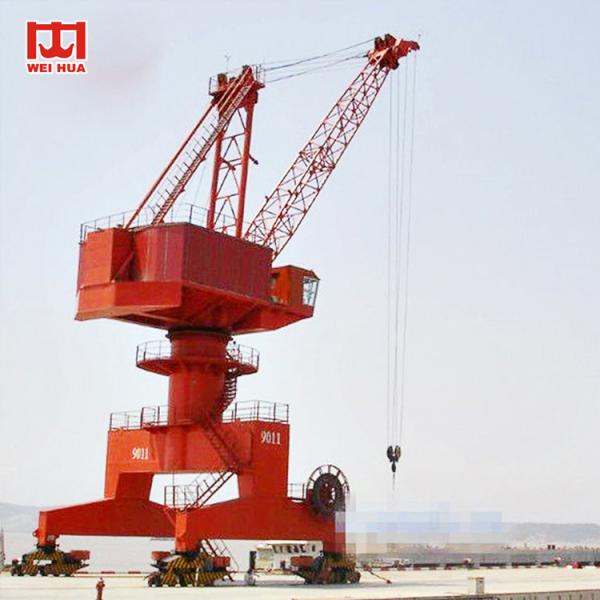

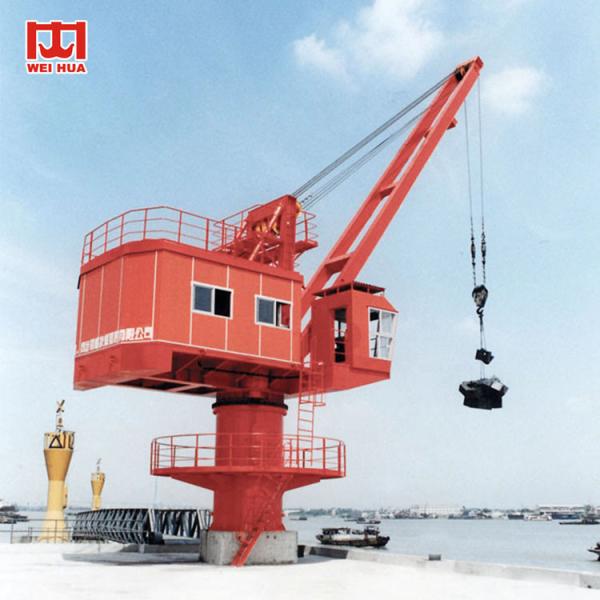

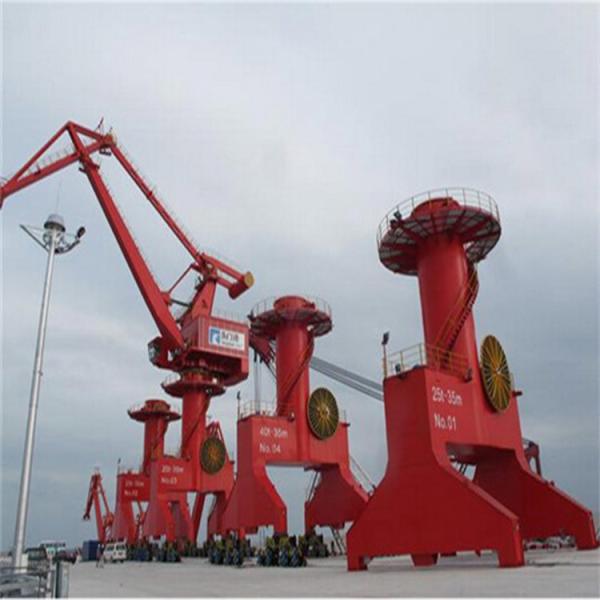

Harbour Portal Crane Images

5-100 Tons Single Jib Harbour Portal Crane In Shipyard And Port A6

5-100 Tons Single Jib Harbour Portal Crane In Shipyard And Port A6
