60 Ton Lattice Boom Harbour Portal Crane Cabin Control Compact Frame
60 Ton Lattice Boom Harbour Portal Crane Cabin Control Compact Frame
Specifications
Brand Name :
KORIGCRANES
Certification :
ISO/CE
Place of Origin :
Henan, China
MOQ :
1 set
Price :
USD 50,000~200,0000 /SET
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 set per month
Delivery Time :
60 working days
Packaging Details :
Main beams are packaged by plastic cloth; Electric parts are packaged by fumigation wooden box.
Feature :
Portal crane
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Warranty :
1 Year
Rated Load :
60t
Working radius :
40m
Control Method :
Cabin Control
Lifting speed :
1.8m/min ~56m/min
Slewing speed :
0.26m/min~26m/min
Application :
Port, Seaport, SHIP, shipyard, vessel
Description

60 Ton Lattice Boom Harbour Portal Crane Cabin Control Compact Frame

Lattice Boom Portal Crane Information

Portal crane design and manufacturing standards: port gantry crane code (GB/T17495-1998), lifting equipment safety code (GB/T14406-1993); ISO standard, fema standard, JIS standard;

Portal cranes have a variety of uses, such as port handling, shipyard material handling, shipbuilding and repair yards, metallurgy industry. The four-link shipyard gantry crane is composed of a frame, a lifting mechanism, a luffing mechanism, a slewing mechanism, a walking mechanism, a sling device (grab, container sling, hook), electrical equipment and other safety auxiliary devices.

Lattice Boom Portal Crane Parameter

Four-link Type Portal Crane

Type Cap(t) Max(m) Min(m) Up(m) Down(m) Span*Base Max wheel load
MQ0525 5 25 8 12 9 10.5*10.5 180
MQ1033 10 33 9.5 20 12 10.5*10.5 185
MQ1633 16 33 9.5 28 15 10.5*10.5 250
MQ2533 25 33 9.5 28 15 10.5*10.5 260
MQ3240 32 40 12 35 13 12*10.5 320
MQ4570 45 70 25 45 13 12*12 320
MQ5035 50 35 11.5 40 0 12*10.5 280

Single-jib Type Portal Crane

Type Cap(t) Max(m) Min(m) Up(m) Down(m) Span*Base Max wheel load
MQC0209 2 9 4 6 6 4.5*4.5 40
MQC0315 3.2 15 5.6 12 8 6*6 80
MQC0322 3.2 22 7 14 8 6*6 90
MQC0515 5 15 6 12 9 6*6 120
MQC0518 5 18 6 15 9 6*6 200
MQC0520 5 20 7.5 16 18 6*6 200
MQC3056 30 56 18 45 5 10*10.5 300
MQC4580 45 80 24 50 14 12*14 340
MQC5070 50 22 70 50 13 10.5*14 300
MQC6345 63 45 17 40 10 10*10.5 250

Lattice Boom Portal Crane Features


1. Quickened the turnover and the operation of loading and unloading.
2. High working efficiency, compact frame,
3. Calm movement, comfortable operation, safety and reliable.
4. Convenience maintenance, nice appearance and so on
5. Crane drive: IP54, level F insulation
6. Especially suitable for the port lifting.
8. Designed according to your request

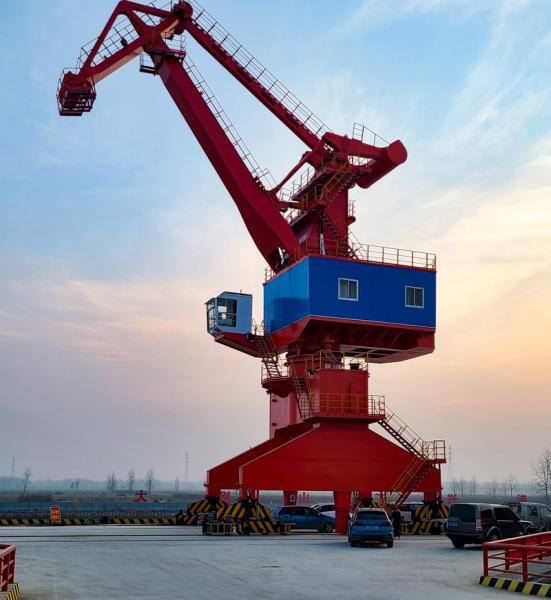

Lattice Boom Portal Crane Images

60 Ton Lattice Boom Harbour Portal Crane Cabin Control Compact Frame60 Ton Lattice Boom Harbour Portal Crane Cabin Control Compact Frame60 Ton Lattice Boom Harbour Portal Crane Cabin Control Compact Frame
