ISO Certification Harbour Portal Crane Gantry Luffing 20m- 26m / Min Traveling Speed
ISO Certification Harbour Portal Crane Gantry Luffing 20m- 26m / Min Traveling Speed
ISO Certification Harbour Portal Crane Gantry Luffing 20m- 26m / Min Traveling Speed
ISO Certification Harbour Portal Crane Gantry Luffing 20m- 26m / Min Traveling Speed
ISO Certification Harbour Portal Crane Gantry Luffing 20m- 26m / Min Traveling Speed
ISO Certification Harbour Portal Crane Gantry Luffing 20m- 26m / Min Traveling Speed
Specifications
Brand Name :
KORIG
Model Number :
Portal Crane
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1 set
Price :
USD10,000-USD800,000
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
5000 Set/Sets per Year
Delivery Time :
40-90days
Packaging Details :
1. Electrical parts are packed by strong plywood box, to prevent the rain soaked. 2. Main portal frame, jib frame and others are packed in plastic woven cloth, to prevent corrosion in seawater
Product name :
Harbour Portal Crane
keywords :
Gantry Luffing Crane
Feature :
Portal Crane
Condition :
New
Warranty :
24 Months
Application :
Port,Seaport,SHIP,shipyard,vessel
After-sales service provided :
Engineers available to service machinery overseas
Rated loading capacity :
5~80t
Span :
10.5~16m
Power source :
3-phase A.C. 50Hz 380V,hydraulic or electric
Working duty :
A7-A8
Life Span :
30-50years
Description

Portal or pedestal jib cranes portal supporting mobile harbour jetty portal dock crane

Harbour Portal Gantry Crane Introduction

Luffing gantry crane mainly used for the loading and unloading operations of outdoor cargo yard, stock yard cargo and bulk cargo.The metal structure is like a door-shaped frame. Two legs are installed under the load-bearing main beam, which can be directly walked on the ground track, and the two ends of the main beam can have overhanging cantilever beams. Nnew portal luffing crane used for lifting devides into two types : One is single-link portal crane, and the other is four-link portal crane:

Single-link portal luffing crane is a kind of hoisting machine especially used inport,harbour, dock, shipyard with small investment for loading and unloading front apron container, sundries and bulk cargo.It mainly includes the following units: crane strong steel frame, lifting mechanism,luffing mechanism, slewing mechanism, traveling mechanism .

Four-link portal luffing crane has been extensively applied to loading and unloading at port and materiel handing at dockyard and metallurgy industry, the mainstructures are composedof steel frame, lifting mechanism, luffing mechanism, slewing mechanism, traveling mechanism,spreader device (grab, container spreader, and hook and electric dist), electrical equipment and other accessory equipments for safety.
Harbour Portal Gantry Crane Parameter

Four-bar linkage Type

Load Capacity

16t

25t

40t

Working Range

30m, 33m, 35m, 37m

28m, 30m, 35m, 36m

30m, 35m, 39m, 40m, 43m

Wheel Dis.

10.5m, 12m, 16m

10.5m, 12m, 16m

10.5m, 12m, 16m

Lifting Speed

60m/min

55m/min

50m/min

Luffing speed

50m/min

50m/min

45m/min

Rotating Speed

1.0~1.5r/min

1.0~1.3r/min

1.0~1.2r/min

Traveling Speed

26m/min

26m/min

26m/min

Single Mast Type

Load Capacity

40t

45t

Working Range

11~30m, 12~35m

12~35m, 13~28m

Wheel Dis.

10.5m, 16m

10.5m, 16m

Lifting Speed

25m/min

25m/min

Luffing speed

25m/min

25m/min

Rotating Speed

0.8~1.0r/min

0.8~1.0r/min

Traveling Speed

26m/min

26m/min

Portal Luffing Gantry Crane Features

1, a variety of structural forms of grab rope device, rope stability effect is good, significantly inhibit the swing of the sling;

2. Dual-machine collaborative operation technology, high control precision, good synergy effect;

3. The hinge points of the boom move upward to realize the winding of the wire rope, prolong the service life of the wire rope, and facilitate maintenance;

4. Automatic turning and following technology of container spreader to improve working efficiency and safety;

5. Power feedback technology, energy saving and environmental protection;

6, wind alarm, security dynamic scanning and other safety measures are complete.

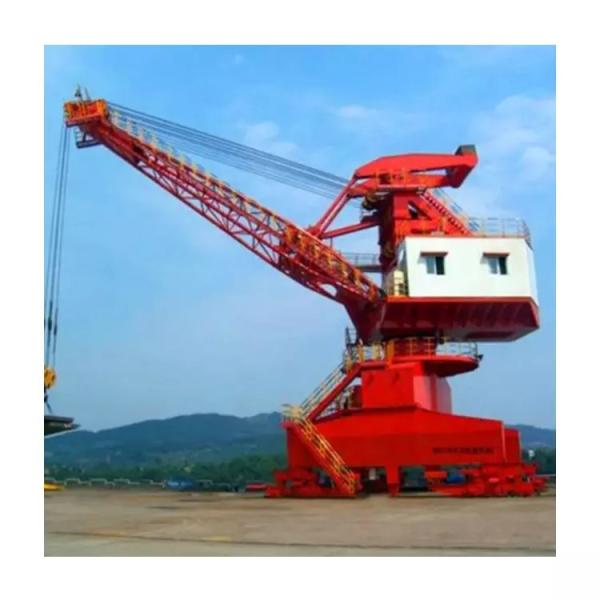

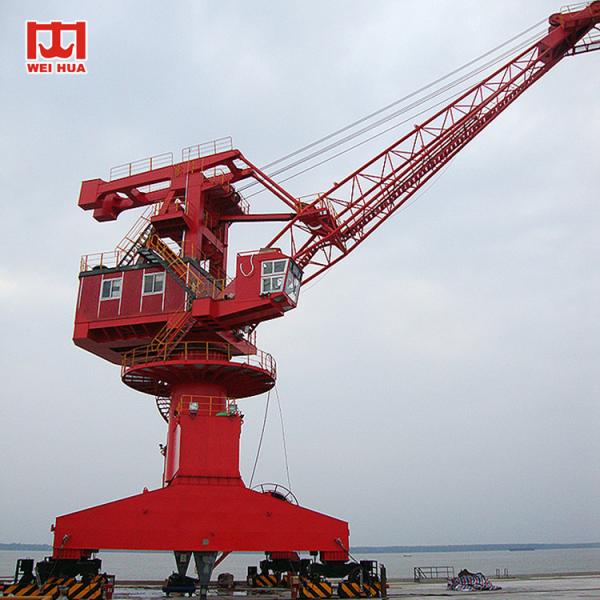

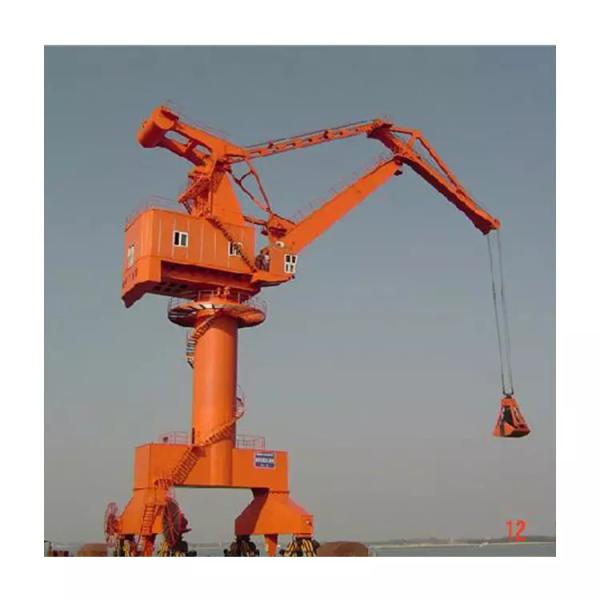

Harbour Portal Gantry Crane Images
ISO Certification Harbour Portal Crane Gantry Luffing 20m- 26m / Min Traveling Speed
ISO Certification Harbour Portal Crane Gantry Luffing 20m- 26m / Min Traveling Speed
ISO Certification Harbour Portal Crane Gantry Luffing 20m- 26m / Min Traveling Speed
