40 Ton - 60 Ton Lattice Boom Harbour Portal Jib Crane Cabin Control
40 Ton - 60 Ton Lattice Boom Harbour Portal Jib Crane Cabin Control
40 Ton - 60 Ton Lattice Boom Harbour Portal Jib Crane Cabin Control
40 Ton - 60 Ton Lattice Boom Harbour Portal Jib Crane Cabin Control
40 Ton - 60 Ton Lattice Boom Harbour Portal Jib Crane Cabin Control
40 Ton - 60 Ton Lattice Boom Harbour Portal Jib Crane Cabin Control
Specifications
Brand Name :
KORIGCRANES
Certification :
ISO/CE
Place of Origin :
Henan, China
MOQ :
1 set
Price :
USD 50,000~200,0000 /SET
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 set per month
Delivery Time :
60 working days
Packaging Details :
Main beams are packaged by plastic cloth; Electric parts are packaged by fumigation wooden box.
Feature :
Portal crane
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Warranty :
1 Year
Rated Load :
60t
Working radius :
40m
Control Method :
Cabin Control
Lifting speed :
1.8m/min ~56m/min
Slewing speed :
0.26m/min~26m/min
Application :
Port, Seaport, SHIP, shipyard, vessel
Description

60 Ton Lattice Boom Harbour Portal Crane Cabin Control Compact Frame

Lattice Boom Portal Crane Information

Portal crane design and manufacturing standards: port gantry crane code (GB/T17495-1998), lifting equipment safety code (GB/T14406-1993); ISO standard, fema standard, JIS standard;

Portal cranes have a variety of uses, such as port handling, shipyard material handling, shipbuilding and repair yards, metallurgy industry. The four-link shipyard gantry crane is composed of a frame, a lifting mechanism, a luffing mechanism, a slewing mechanism, a walking mechanism, a sling device (grab, container sling, hook), electrical equipment and other safety auxiliary devices.

Lattice Boom Portal Crane Parameter

Four-link Type Portal Crane

Type Cap(t) Max(m) Min(m) Up(m) Down(m) Span*Base Max wheel load
MQ0525 5 25 8 12 9 10.5*10.5 180
MQ1033 10 33 9.5 20 12 10.5*10.5 185
MQ1633 16 33 9.5 28 15 10.5*10.5 250
MQ2533 25 33 9.5 28 15 10.5*10.5 260
MQ3240 32 40 12 35 13 12*10.5 320
MQ4570 45 70 25 45 13 12*12 320
MQ5035 50 35 11.5 40 0 12*10.5 280

Single-jib Type Portal Crane

Type Cap(t) Max(m) Min(m) Up(m) Down(m) Span*Base Max wheel load
MQC0209 2 9 4 6 6 4.5*4.5 40
MQC0315 3.2 15 5.6 12 8 6*6 80
MQC0322 3.2 22 7 14 8 6*6 90
MQC0515 5 15 6 12 9 6*6 120
MQC0518 5 18 6 15 9 6*6 200
MQC0520 5 20 7.5 16 18 6*6 200
MQC3056 30 56 18 45 5 10*10.5 300
MQC4580 45 80 24 50 14 12*14 340
MQC5070 50 22 70 50 13 10.5*14 300
MQC6345 63 45 17 40 10 10*10.5 250

Lattice Boom Portal Crane Features

1, a variety of structural forms of grab rope device, rope stability effect is good, significantly inhibit the swing of the sling;

2. Dual-machine collaborative operation technology, high control precision, good synergy effect;

3. The hinge points of the boom move upward to realize the winding of the wire rope, prolong the service life of the wire rope, and facilitate maintenance;

4. Automatic turning and following technology of container spreader to improve working efficiency and safety;

5. Power feedback technology, energy saving and environmental protection;

6, wind alarm, security dynamic scanning and other safety measures are complete.

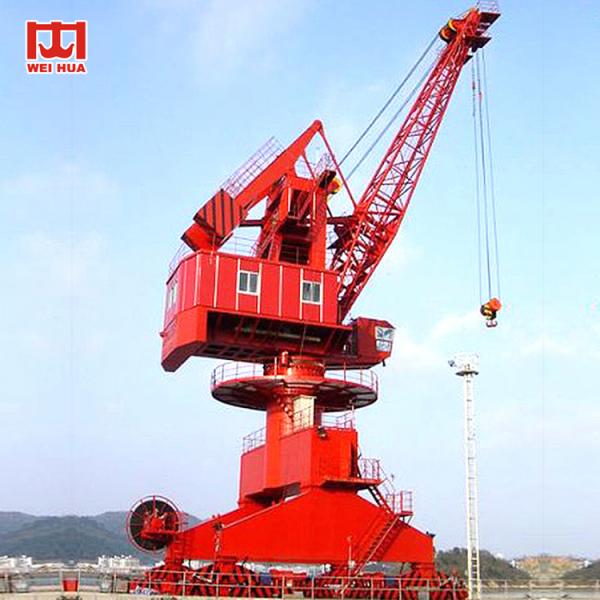

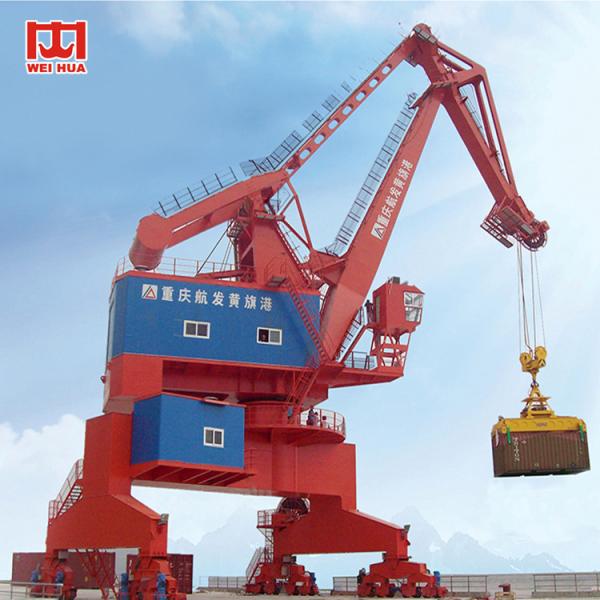

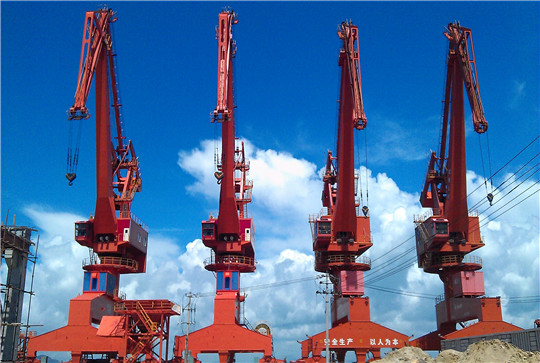

Lattice Boom Portal Crane Images

40 Ton - 60 Ton Lattice Boom Harbour Portal Jib Crane Cabin Control40 Ton - 60 Ton Lattice Boom Harbour Portal Jib Crane Cabin Control

40 Ton - 60 Ton Lattice Boom Harbour Portal Jib Crane Cabin Control
