Waterproof GYTY53 Armoured Fiber Optic Cable 2-144 Core Single Mode OEM Color
Waterproof GYTY53 Armoured Fiber Optic Cable 2-144 Core Single Mode OEM Color
Waterproof GYTY53 Armoured Fiber Optic Cable 2-144 Core Single Mode OEM Color
Waterproof GYTY53 Armoured Fiber Optic Cable 2-144 Core Single Mode OEM Color
Waterproof GYTY53 Armoured Fiber Optic Cable 2-144 Core Single Mode OEM Color
Waterproof GYTY53 Armoured Fiber Optic Cable 2-144 Core Single Mode OEM Color
Waterproof GYTY53 Armoured Fiber Optic Cable 2-144 Core Single Mode OEM Color
Waterproof GYTY53 Armoured Fiber Optic Cable 2-144 Core Single Mode OEM Color
Specifications
Brand Name :
MingTong
Model Number :
GYTY53
Certification :
ISO
Place of Origin :
Dong Guan China
Price :
500-3000RNB/KM
Payment Terms :
L/C,T/T
Supply Ability :
200km/Day
Delivery Time :
It depends on the actual situation.
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Fiber Count :
2-144 Core
Fiber Type :
G652D, Single Mode, OM3
Inner Sheath :
PE
Outer Jacket :
PE+Steel Tape
Structure :
Loose Tube
Strength Member :
Phosphating Steel Wire
Water Blocking Material :
Filling Compound
Sheath Material: :
LSZH, HDPE/MDPE, PE
Name :
Outdoor Optical Cable
Description
GYTY53 Armoured Fiber Optic Cable 2-144 Core Single Mode

GYTY53 Communication Large Core Structure Fiber Optic Armoured Cable designed for robust telecommunications infrastructure with comprehensive protection and reliable performance.

Product Specifications
Attribute Value
Fiber Count 2-144 Core
Fiber Type G652D, Single Mode, OM3
Inner Sheath PE
Outer Jacket PE+Steel Tape
Structure Loose Tube
Strength Member Phosphating Steel Wire
Water Blocking Material Filling Compound
Sheath Material LSZH, HDPE/MDPE, PE
Product Gallery
Waterproof GYTY53 Armoured Fiber Optic Cable 2-144 Core Single Mode OEM Color
Waterproof GYTY53 Armoured Fiber Optic Cable 2-144 Core Single Mode OEM Color
Waterproof GYTY53 Armoured Fiber Optic Cable 2-144 Core Single Mode OEM Color
Cable Structure

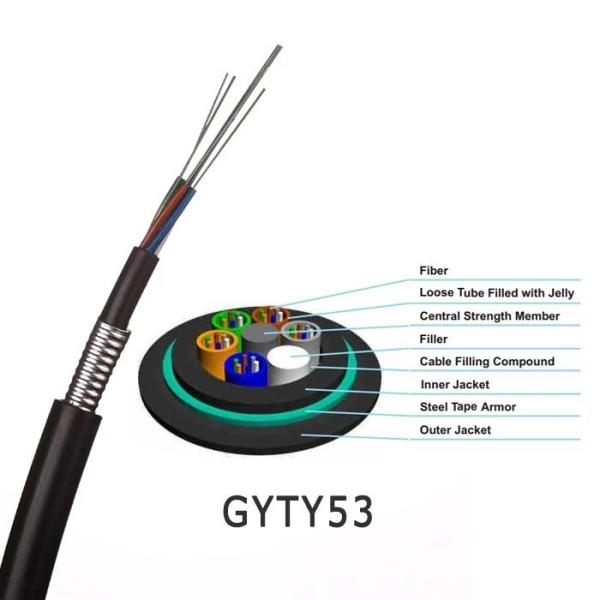

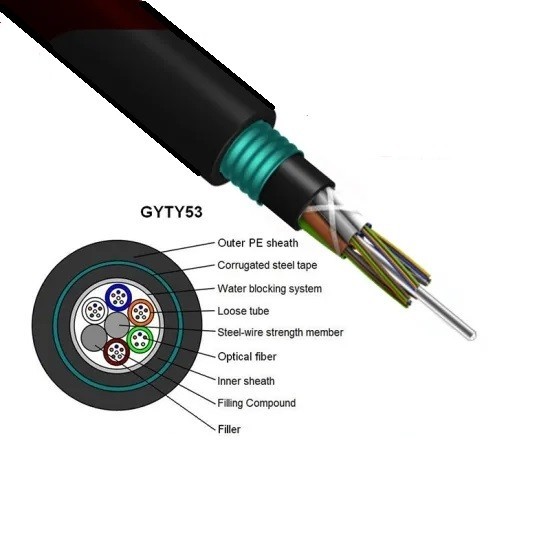

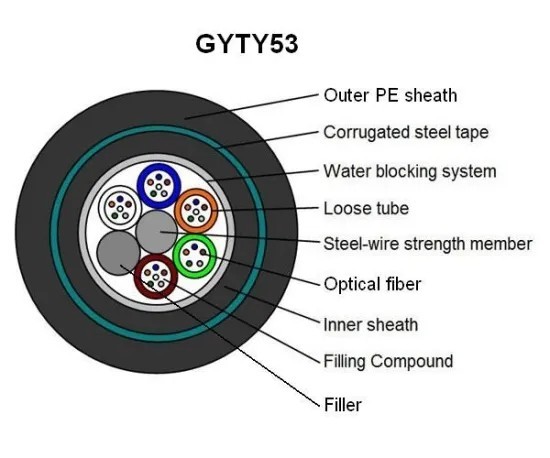

The GYTY53 optical cable features 250μm optical fiber sheathed in a loose tube made of high modulus material, filled with waterproof compound. The cable core centers around a metal reinforced core, with some cables requiring an additional polyethylene (PE) layer extruded outside this core. Loose tubes (and filler ropes) are twisted around the central reinforcing core to form a compact, round cable core, with gaps filled by water blocking materials. The structure includes a polyethylene inner sheath and double-sided plastic coated steel tape (PSP) longitudinally wrapped with a polyethylene outer sheath.

Key Features
  • Utilizes "SZ" bidirectional layer twisting technology
  • Comprehensive water-blocking with step-by-step ointment filling
  • Steel/aluminum tape with reliable edge bonding and high twist resistance
  • Precise fiber excess length control
  • Minimal additional fiber attenuation and stable dispersion values
  • Excellent environmental performance (-10℃ to +70℃ operating range)
Waterproof GYTY53 Armoured Fiber Optic Cable 2-144 Core Single Mode OEM Color
Technical Details
Cable Core

The loose tubes are stranded around the central strength member using SZ stranding technology, which alternates wrapping direction for optimal performance.

Central Strength Member

Steel-reinforced core provides both tensile strength and anti-buckling properties.

Loose Tube

Optical fibers are housed in jelly-filled tubes made of industry-standard PBT material, color-coded for easy identification.

Water Blocking Material

Filling compound between loose tubes and inner sheath provides comprehensive water protection.

Armour

Corrugated steel tape offers compression strength, crush resistance, rodent protection, and bullet resistance.

Outer Jacket

Black high-density polyethylene jacket extruded over the cable core and armor.

Cable Sheath Marking

Each cable clearly displays manufacturer name, production year, cable/fiber type, length markings, and optional customer requirements.

Waterproof GYTY53 Armoured Fiber Optic Cable 2-144 Core Single Mode OEM Color
Special Notes
  • Flame retardant versions (GYTZS) available with LSZH outer sheath material.
  • Custom color-striped outer sheaths available upon request (see GYTA series).
  • Special cable structures can be designed and manufactured to customer specifications.
