Stranded Loose Tube Outdoor Fiber Cable GYFTY53 Water Blocking Armored Fiber Cable
Stranded Loose Tube Outdoor Fiber Cable GYFTY53 Water Blocking Armored Fiber Cable
Stranded Loose Tube Outdoor Fiber Cable GYFTY53 Water Blocking Armored Fiber Cable
Stranded Loose Tube Outdoor Fiber Cable GYFTY53 Water Blocking Armored Fiber Cable
Stranded Loose Tube Outdoor Fiber Cable GYFTY53 Water Blocking Armored Fiber Cable
Stranded Loose Tube Outdoor Fiber Cable GYFTY53 Water Blocking Armored Fiber Cable
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
500-3000RNB/KM
Payment Terms :
L/C,T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :

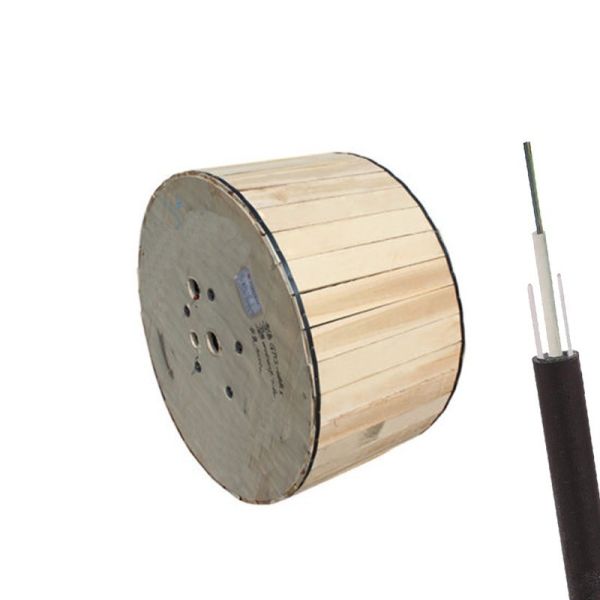

Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Application :
Aerial, Duct,Multi-cores Wiring System In Data Center
Fiber :
G652D, G657A1, G657A2
Fiber Count :
2-288 Fibers
Central Strength Member :
FRP
Armor :
Corrugated Steel Tape
Outer Jacket :
Black UV-and Moisture-resistant Polyethylene(PE)
Highlight :
GYFTY53 Single Mode Armored Fiber Optic Cable, G652D Single Mode Armored Fiber Optic Cable, GYFTY53 single mode armored fiber cable
Name :
Outdoor Optical Cable
Description
Stranded Loose Tube GYFTY53 Single Mode Water-Blocking Armored Fiber Cable
GYFTY53 Aerial/Duct Stranded Loose Tube Armored Outdoor Fiber Optic Cable

GYFTY53 optic fibers, 250µm, are positioned in a loose tube made of high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of the core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. The cable core is covered with a thin polyethylene (PE) inner sheath filled with jelly to protect against water ingress. A layer of water-blocking material is applied around the cable core, and after a corrugated steel tape armor is applied, the cable is completed with a PE outer sheath.

Features
  • Good mechanical and temperature performance
  • High strength loose tube that is hydrolysis resistant
  • Special tube filling compound ensures critical protection of fiber
  • Crush resistance and flexibility
  • Multiple watertight protection measures:
    • FRP used as the central strength member
    • Loose tube filling compound
    • 100% cable core filling
    • PSP enhancing moisture-proof
    • Water-blocking material
Applications
  • Aerial / Duct installation
  • Connecting communication equipment
  • Multi-cores wiring system in data centers
Specifications
Cable Type GYTY53
Fiber Type SM (Single Mode)
Application Long-distance communication, LAN
Recommended installation methods Direct buried
Environment Outdoor
Temperature Range -40℃ to 70℃
Fiber Count Nominal Diameter (mm) Nominal Weight (kg/km) Max Fibers per Tube Max No. of (Tubes+fillers) Allowable Tensile Load (N) Allowable Crush Resistance (N/100mm)
Short Term Long Term Short Term Long Term
2~30 12.2 142 6 5 3000 1000 3000 1000
32~48 12.8 155 8 6 3000 1000 3000 1000
50~72 13.6 170 12 6 3000 1000 3000 1000
74~96 15.0 192 12 8 3000 1000 3000 1000
98~144 16.6 220 12 12 3000 1000 3000 1000
>144 Available upon customer's request
Note: This datasheet can only be a reference, but not a supplement to the contract. Please contact sales for details.

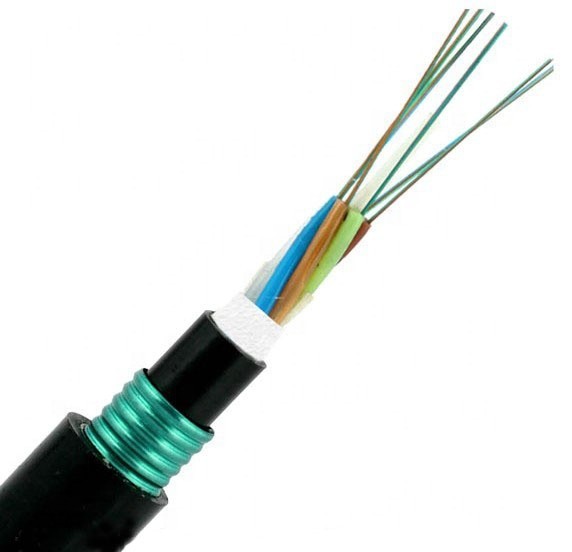

Structure and Product Pictures
Stranded Loose Tube Outdoor Fiber Cable GYFTY53 Water Blocking Armored Fiber Cable Stranded Loose Tube Outdoor Fiber Cable GYFTY53 Water Blocking Armored Fiber Cable
