Loose Tube Fiber Optic Outdoor Cable Single Mode GYFXTY 2 FRP 6 Core 8.2mm Diameter
Loose Tube Fiber Optic Outdoor Cable Single Mode GYFXTY 2 FRP 6 Core 8.2mm Diameter
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
500-3000RNB/KM
Payment Terms :
L/C,T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Name :
Outdoor Optical Cable
Model No :
GYFXTY
Outer Sheath Material :
PE
Strength Member :
PBT With Jerry
Fiber Count :
2-288 Cores
Waterblocking Material :
Water Blocking Tape Or Filling Compound
Loose Tube Material :
Loose Tube
Highlight :
8 Core Single Mode Fiber Optic Cable, 4 Core Single Mode Fiber Optic Cable, 2 FRP 2 core fiber optic cable
Description
2 FRP 6 Core Single Mode Fiber Optic Cable GYFXTY
Loose Tube Fiber Optic Outdoor Cable Single Mode GYFXTY 2 FRP 6 Core 8.2mm Diameter
Loose Tube Fiber Optic Outdoor Cable Single Mode GYFXTY 2 FRP 6 Core 8.2mm Diameter
Product Overview
Brand TW-SCIE OR OEM
Optical Fiber Type Single Mode G652D
Jacket Material PE
Fiber Count 6
Jacket Color Black
Strength Member 2 Parallel FRP
Cable Diameter 8.2mm
Length 2000m per roll or customized
Gross Weight 35 kgs
Construction Features

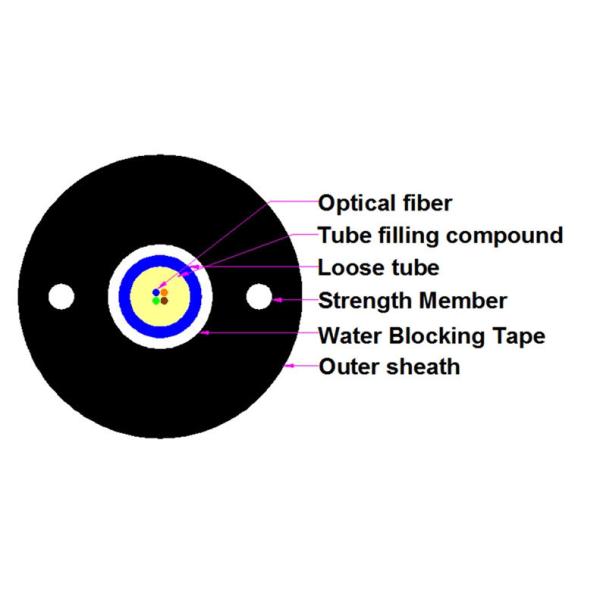

The GYFXTY central beam tube optical cable structure inserts 250μm optical fiber into a loose tube made of high modulus material, with the loose tube filled with waterproof compound. The loose tube is wrapped with a layer of aramid yarn (Made In China) longitudinally, and water blocking material is added between the aramid yarn and the loose tube to ensure optical cable compactness and longitudinal water blocking. Two parallel steel FRP are placed on both sides and the polyethylene sheath is extruded into a cable.
Technical Specifications
Parameter Details Value
NO. of cable 6
Fiber model G.652D
Strength Member Material FRP
Diameter (±0.05)mm 1.8
Loose Tube Material PBT
Diameter (±0.06)mm 1.8
Thickness (±0.03)mm 0.35
Loose Tube The max core No./tube 12
Outer Sheath Material PE
Cable Diameter (±0.2)mm 6.7
Cable Weight (±5) kg/km 38
Min. Bending Radius Without tension 10.0× Cable-φ
Under Maximum Tension 20.0× Cable-φ
Temperature range (°C) Installation -20 to +60
Transport & Storage -40 to +70
Operation -40 to +70
Loose Tube Fiber Optic Outdoor Cable Single Mode GYFXTY 2 FRP 6 Core 8.2mm Diameter
