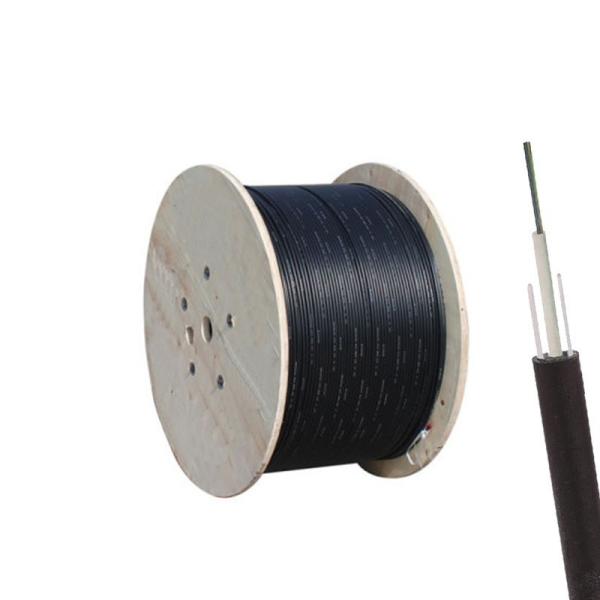

GYFXTY 12 Core Outdoor Rated Fiber Optic Cable Central Loose Tube Non Metallic
GYFXTY 12 Core Outdoor Rated Fiber Optic Cable Central Loose Tube Non Metallic
Specifications
Brand Name :
MingTong
Model Number :
GYTC8S
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
500-3000RNB/KM
Payment Terms :
L/C,T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Application :
Telecommunication, Aerial, Duct, Telecom, Network
Fiber Type :
G652D,single Mode Or Multi Mode
Fiber Count :
12 Fibers
Outer Jacket :
Black UV-and Moisture-resistant Polyethylene(PE)
Highlight :
12 Core Outdoor Fiber Optic Cable, GYFXTY Outdoor Fiber Optic Cable, GYFXTY 12 core fiber optic cable
Product Name :
Outdoor Optic Fiber Cable
Central Strength Member :
FRP
Name :
Outdoor Optical Cable
Description
GYFXTY 12 Core Outdoor Fiber Optic Cable Central Loose Tube Non-Metallic & Non-Armored
Product Overview

GYFXTY all-dielectric outdoor cables use central loose tube structure, which are filled with water-resistant filling compound to provide crucial protection for the fiber. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel fiber reinforced plastics (FRP) are placed at the two sides, which has an excellent anti-electromagnet ability and lightning resistance performance. The cable is completed with a single polyethylene (PE) sheath. It is especially suitable for installation in aerial for long-distance and bureau communication and wiring in multiple minefields and electromagnetic interfering places.

Applications
  • Aerial installation
  • Trunk power transmission system
  • Access network and local network
  • Electromagnetic interfering places
  • Outdoor distribution, lightning protection
  • Long-distance communication and bureau communication
Key Features
  • Good mechanical and temperature performance
  • High strength loose tube that is hydrolysis resistant
  • Special tube filling compound ensure a critical protection of fiber
  • Two parallel FRPs ensure tensile strength
  • PE sheath protects cable from ultraviolet radiation
  • Small diameter, light weight and easy installation
Technical Specifications
Optical Performance
Parameter G.652 50/125 µm 62.5/125 µm
Attenuation @ 850 nm <3.0 dB/km <3.3 dB/km
Attenuation @ 1300 nm <1.0 dB/km <1.0 dB/km
Attenuation @ 1310 nm <0.36 dB/km
Attenuation @ 1550 nm <0.22 dB/km
Bandwidth @ 850 nm >500 MHz·km >200 MHz·km
Bandwidth @ 1300 nm >500 MHz·km >500 MHz·km
Numerical Aperture 0.200±0.015 NA 0.275±0.015 NA
Cable Cut-off Wavelength λcc <1260 nm
Mechanical Specifications
Fiber Count Nominal Diameter (mm) Nominal Weight (kg/km) Allowable Tensile Load (N) Allowable Crush Resistance (N/100mm) Bending Radius
Long Term Short Term Static / Dynamic
2-12 8.2 65 600 1500 / 300 10D / 20D
Note: This datasheet can only be a reference, but not a supplement to the contract. Please contact sales for details.

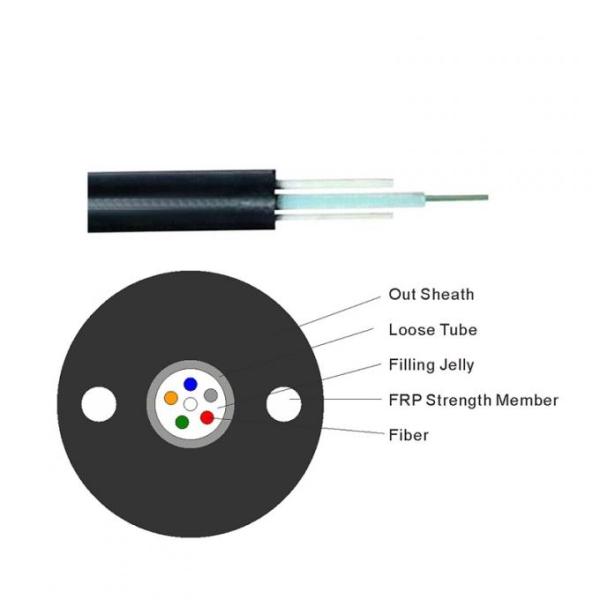

Cable Structure & Product Images
GYFXTY 12 Core Outdoor Rated Fiber Optic Cable Central Loose Tube Non Metallic
GYFXTY 12 Core Outdoor Rated Fiber Optic Cable Central Loose Tube Non Metallic
Packing & Shipping

Cable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate iron-wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.

The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.

GYFXTY 12 Core Outdoor Rated Fiber Optic Cable Central Loose Tube Non Metallic
