GYXTC8S Fiber Optic Outdoor Cable Central Tube Self Support Armored Aerial cable
GYXTC8S Fiber Optic Outdoor Cable Central Tube Self Support Armored Aerial cable
GYXTC8S Fiber Optic Outdoor Cable Central Tube Self Support Armored Aerial cable
GYXTC8S Fiber Optic Outdoor Cable Central Tube Self Support Armored Aerial cable
GYXTC8S Fiber Optic Outdoor Cable Central Tube Self Support Armored Aerial cable
GYXTC8S Fiber Optic Outdoor Cable Central Tube Self Support Armored Aerial cable
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
500-3000RNB/KM
Payment Terms :
L/C,T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Application :
Telecommunication, Aerial, Duct, Telecom, Network
Fiber :
G652D, G657A1, G657A2
Fiber Count :
2-24 Fibers
Armor :
Corrugated Steel Tape
Outer Jacket :
Black UV-and Moisture-resistant Polyethylene(PE)
Messenger Wire :
Stranded Steel Wire
Highlight :
8 Core Single Mode Fiber Optic Cable, 4 Core Single Mode Fiber Optic Cable, 2 FRP 2 core fiber optic cable
Name :
Outdoor Optical Cable
Description
GYXTC8S Outdoor Fiber Optic Cable Central Tube Self Support Armored Aerial Cable
Product Overview

GYXTC8S fiber optic cable is a figure 8 structure cable designed for aerial installation in long-haul communications. Available in 2-core to 144-core configurations, this optical cable features excellent mechanical and environmental performance.

Key Features
  • Central loose tube design with proper excess length
  • Minimizes lateral crush influence
  • Water-resistant tape for water-tight properties
  • Corrugated steel tape armor and PE outer sheath
  • Provides crush resistance and gun shot resistance

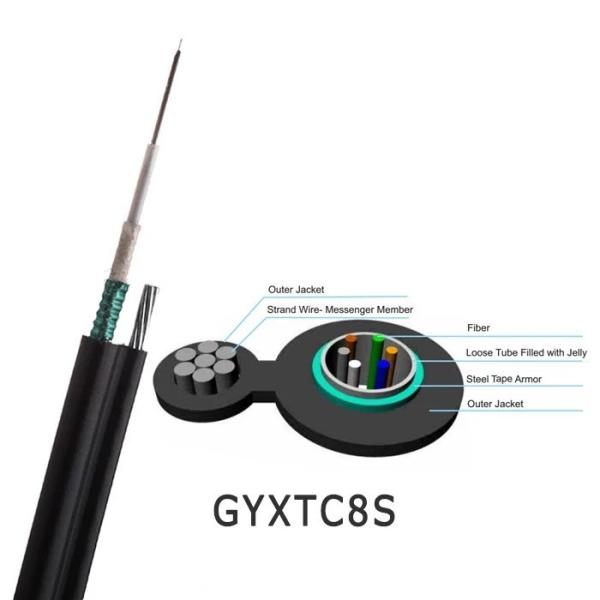

  • Figure 8 cross section with stranded self-supporting wires
  • Excellent strain performance and convenient installation
General Specifications
Cable Type GYXTC8S
Fiber Type SM
Application Long-distance communication, LAN
Recommended Installation Methods Aerial
Environment Outdoor
Temperature Range -40℃ to 70℃

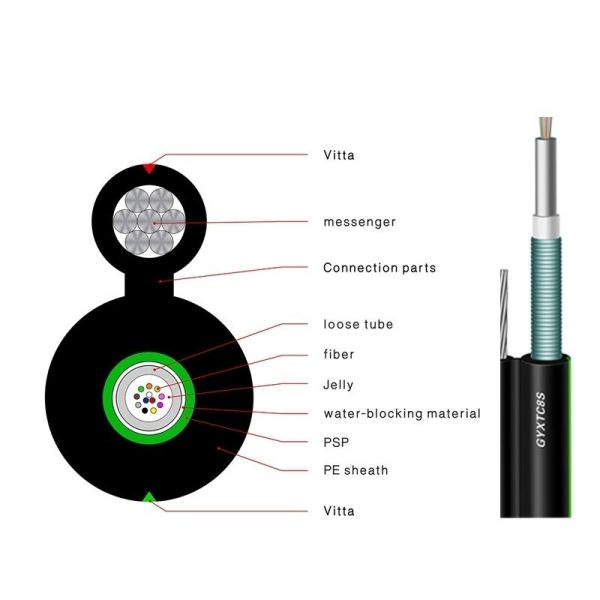

Structure and Technical Specifications
GYXTC8S Fiber Optic Outdoor Cable Central Tube Self Support Armored Aerial cable
Fiber Count Nominal Diameter (mm) Nominal Weight (kg/km) Allowable Tensile Load (N) Allowable Crush Resistance (N/100mm)
2~12 7.6*15.6 142 7000 (Short Term)
4000 (Long Term)		 1000 (Short Term)
300 (Long Term)
>12 Available upon customer's request

This datasheet can only be a reference, but not a supplement to the contract. Please contact sales for details.

Compliance Standards
Mechanical Performance
Test Standard
Max Tension Performance IEC 60794-1-2-E
Max. Operation Tension IEC 60794-1-2-E1
Crush Test IEC 60794-1-2-E3
Impact Test IEC 60794-1-2-E4
Repeated Bending IEC 60794-1-2-E6
Torsion Test IEC 60794-1-2-E7
Cable Bend IEC 60794-1-2-E11A
Attenuation Coefficient ITU-T G.652
Structural Test IEC-60793-1-20
Environmental Performance
Test Standard
Temperature Cycling IEC 60794-1-2-F1
Water Penetration IEC 60794-1-2-F5B
Filing Compound Flow IEC 60794-1-E14
Packing and Shipping

Cable is supplied in lengths as specified in PI or as required. Each length is shipped on a separate non-returnable wooden drum with a minimum barrel diameter not less than 30 times the cable diameter.

Each reel is completely covered with a reusable thermal wrap fastened by packaging straps, providing excellent thermal and UV protection. Cable ends are sealed with plastic protection caps to prevent water penetration and remain easily accessible for testing.

A final inspection test report with attenuation performance data for each fiber is attached inside the drum.
