GYTS 6 Core Fiber Optic Outdoor Cable Water Resistance For Telecommunication
GYTS 6 Core Fiber Optic Outdoor Cable Water Resistance For Telecommunication
GYTS 6 Core Fiber Optic Outdoor Cable Water Resistance For Telecommunication
GYTS 6 Core Fiber Optic Outdoor Cable Water Resistance For Telecommunication
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
500-3000RNB/KM
Payment Terms :
L/C,T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Application :
Telecommunication
Fiber Type :
GYTS
Type :
Singlemode & Multimode
Fiber Count :
6 Core
Jacket Material :
PE,LSZH
Oem :
Available
Structure :
Loose Tube
Operating Temperature :
-40~75
Highlight :
Loose Tube Optical Fiber Cable, GYTS Optical Fiber Cable, LSZH Jacket Optical Fiber Cord
Name :
Outdoor Optical Cable
Description

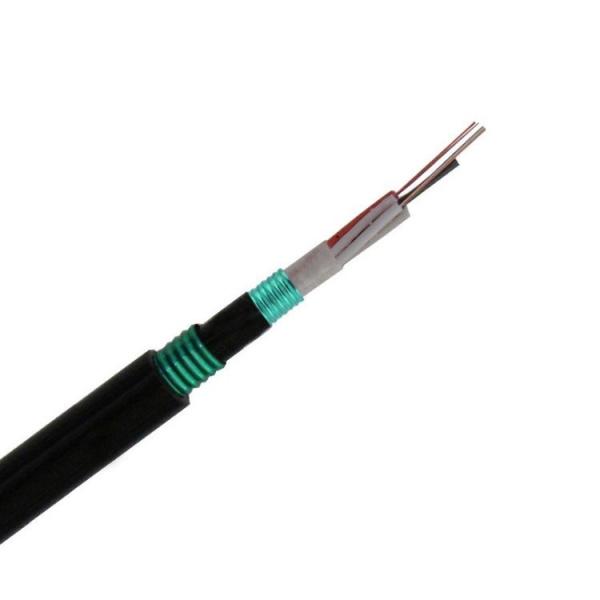

GYTS 6 Core Loose Tube Optical Fiber Cable
GYTS Armored Loose Tube Single Jacket/Single Armor fiber optic cables are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including duct and underground conduit.
6 Core Optical Fiber Cable Features
  • Choice of Fibre Type
  • Colour code of Fibre
  • High water resistance
  • High crush resistance
  • Choice Sheath Material
  • Low attenuation and dispersion
  • Good flexibility and bending performance
Application Fields
  • Aerial
  • Duct

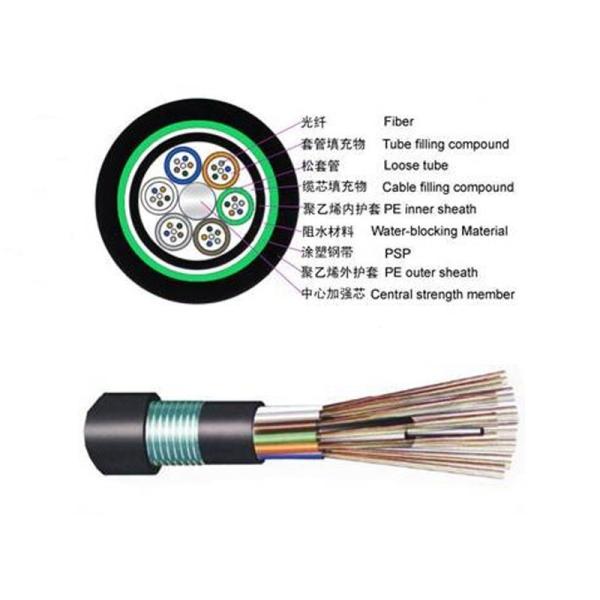

Structure Characteristics
Metallic strengthen member (phosphated steel wire)
Double coated PE Corrugated steel tape under PE sheath
Technical Characteristics
Fiber range Cable outer diameter (mm) Cable weight (kg/km) Min. bending radius Allowable tension (N) Max. crush loading force (N/100mm)
Static Dynamic Short Long Short Long
2-30 9.8 115 10× cable diameter 20× cable diameter 1500 600 1000 300
32-36 10.6 140 Same specifications as above
38-60 11 140 Same specifications as above
62-72 11.6 165 Same specifications as above
74-96 13.2 205 Same specifications as above
98-120 14.7 245 Same specifications as above
122-144 16.1 285 Same specifications as above
146-216 16.6 300 Same specifications as above
218-240 19.8 395 Same specifications as above
242-288 22 470 Same specifications as above
Packing and Shipping
Cable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate iron-wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.
The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.
