Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
500-3000RNB/KM
Payment Terms :
L/C, T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Outer Sheath Material :
MDPE / HDPE
Outer Sheath Color :
Black
Loose Tube Material :
PBT Or Jelly
Single Armour Material :
Corrugated Aluminium Tape
Operating Temperature :
-40 Degree ~ +60 Degree
Water Blocking Material :
Water Blocking Tape Or Filling Compound
Installation Methods :
Self-Support Aerial
Structure Section :
"8" Figure Cross Section
Highlight :
steel wire armoured cable, direct burial fiber optic cable
Name :
Outdoor Optical Cable
Description
36 Cores Self Support Armoured Network Cable GYTC8S Fiber Optic Cable for Outdoor Use
Outdoor Self-Support 36Core Fiber Optic Cable GYTC8S
36 Cores Self Support Armoured Network Cable GYTC8S Fiber Optic Cable Outdoor Use 36 Cores Self Support Armoured Network Cable GYTC8S Fiber Optic Cable Outdoor Use
Applications
  • Adopted for outdoor distribution
  • Suitable for aerial, duct, and buried installation methods
  • Long distance and local area network communication
Characteristics
  • Stainless steel or galvanized steel self-supporting structure
  • Excellent mechanical and environmental performance
  • Fiber count: 2-24 cores
Fiber Allocation Scheme
Fiber Number Tube Number Fiber Per Tube Fiber Type
2 1 2 F/Tube SM G652D MM 50/125 MM 62.5/125
4 1 4 F/Tube
6 1 6 F/Tube
8 1 8 F/Tube
12 1 12 F/Tube
24 1 24 F/Tube
Cable Sheath Marking

Each cable has the following information clearly marked on the outer jacket:

  • Name of manufacturer
  • Year of manufacture
  • Type of cable and fiber
  • Length mark (printed on each meter normally)
  • Or as per customer requirements

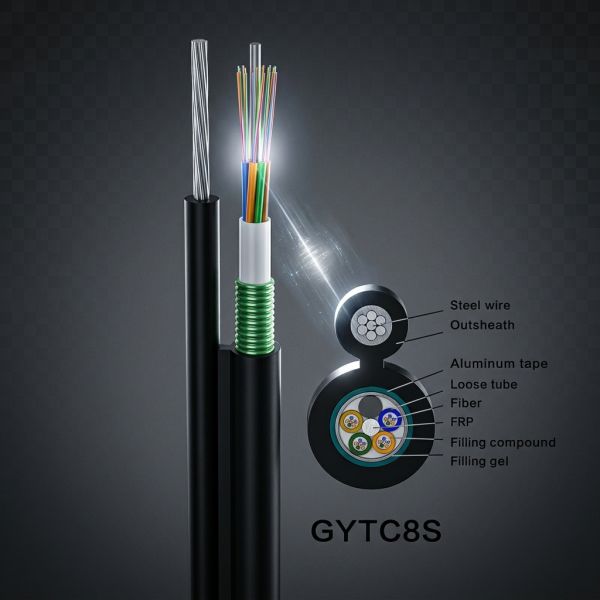

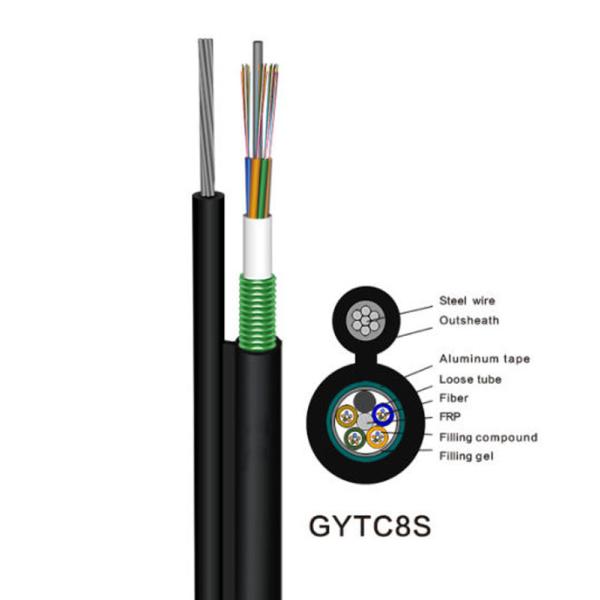

Cable Construction Details
Items Description
Number of fiber 2 cores to 24 cores
Connector strength member Material: Galvanized steel wire
Diameter: 1.2 mm
Loose tube Material: PBT
Diameter: Ф2.0-2.8
Cable filling Material: Cable filling compound
Outer sheath Material: HDPE
Diameter: 1.7±0.2mm
Cable Mechanical Characteristics
Items Cable Diameter Weight
2 cores to 24 cores 3.2*7.2 mm 70 kg/km
Parameter Value
Installation Temperature Range -15°C to +60°C
Operation and Transport Temperature -40°C to +70°C
Recommended Daily Max Working Tension 1500 N
Max Allowable Working Tension 600 N
Min Bending Radius (Operation) 10D mm
Min Bending Radius (Installation) 20D mm
Extra Load 0.5%-0.7%
Ice 5mm
Wind Speed 35m/s
Fiber Characteristics
Fiber Style Unit SM G652D MM 50/125 MM 62.5/125
Condition nm 1310/1550 850/1300 850/1300
Attenuation dB/km ≤0.36/0.23 ≤3.0/1.0 ≤3.0/1.0
Dispersion 1310nm Ps/(nm*km) ≥-3.4 ≤3.4 ..... .....
Dispersion 1550nm Ps/(nm*km) ≤18 ..... .....
Dispersion 1625nm Ps/(nm*km) ≤22
Bandwidth 850nm MHZ.KM ..... >=400 >=160
Bandwidth 1300nm MHZ.KM ..... >=800 >=500
Zero Dispersion Wavelength nm >=1302,≤1322 ..... .....
Zero Dispersion Slope Ps(nm²*km) ≤0.091 ..... .....
PMD Maximum Individual Fiber Ps√km ≤0.2 ..... .....
PMD Design Link Value Ps√km ≤0.08 ..... .....
Fibre Cutoff Wavelength λc nm >=1180,≤1330 ..... .....
Cable Cutoff Wavelength λcc nm ≤1260 ..... .....
MFD 1310nm um 9.2±0.4 ..... .....
MFD 1550nm um 10.4±0.8 ..... .....
Numerical Aperture (NA) ...... 0.200±0.015 0.275±0.015
Step (mean of bidirectional measurement) dB ≤0.05 ≤0.10 ≤0.10
Irregularities over fiber length and point discontinuity dB ≤0.05 ≤0.10 ≤0.10
Difference Backscatter Coefficient dB/km ≤0.03 ≤0.08 ≤0.10
Attenuation Uniformity dB/km ≤0.01 ....... .......
Core Diameter um ...... 50±1.0 62.5±2.5
Cladding Diameter um 125.0±0.1 125.0±0.1 125.0±0.1
Cladding Non-Circularity % ≤1.0 ≤1.0 ≤1.0
Coating Diameter um 242±7 242±7 242±7
Coating/Cladding Concentricity Error um ≤12.0 ≤12.0 ≤12.0
Coating Non-Circularity % ≤6.0 ≤6.0 ≤6.0
Core/Cladding Concentricity Error um ≤0.6 ≤1.5 ≤1.5
Curl (radius) um ≤4 ..... .....
self-supporting cable figure 8 24 core
