24 Cores Outdoor Fiber Optic Cable OFC Armoured Cable GYTA53
24 Cores Outdoor Fiber Optic Cable OFC Armoured Cable GYTA53
24 Cores Outdoor Fiber Optic Cable OFC Armoured Cable GYTA53
24 Cores Outdoor Fiber Optic Cable OFC Armoured Cable GYTA53
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
500-3000RNB/KM
Payment Terms :
L/C,T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Application :
Telecommunication, Aerial, Duct, Telecom, Network
Fiber :
G652D, G657A1, G657A2
Fiber Count :
36 Fibers
Central Strength Member :
FRP Or Steel Wire
Armor :
Corrugated Steel Tape
Outer Jacket :
Black UV-and Moisture-resistant Polyethylene(PE)
Highlight :
36 Cores Outdoor Fiber Optic Cable, LAN Ofc Armoured Cable, 36 Cores Ofc Armoured Cable
Name :
Outdoor Optical Cable
Description
24 Cores Outdoor Fiber Optic Cable OFC Armoured Cable GYTA53
Product Overview

24 Cores Armored Fiber Optic Cable GYTA 33 Direct Buried Stranded Loose Tube Armored Cable designed for robust outdoor applications.

Description
  • Available in single-mode G652, G655, G657 or multimode configurations with loose tube construction
  • High modulus plastic loose tubes filled with water-resistant filling compound
  • Steel wire central metallic strength member, sometimes sheathed with polyethylene
  • Tubes and fillers stranded around strength member into compact circular cable core
  • Double sides chromium PSP with PE outer sheath
  • Compatible with single or double wire lashing installation methods
Applications
  • Outdoor distribution fiber optic cable systems
  • Suitable for aerial, duct pipeline, and direct buried installation using lashing method
  • Long distance and local area network (LAN) communication systems
Key Features
  • Excellent mechanical and temperature performance
  • High strength loose tube with hydrolysis resistance
  • Special tube filling compound for critical fiber protection
  • Superior crush resistance and flexibility
  • PE/LSZH sheath protects against ultraviolet radiation
  • 100% cable core filling for maximum protection
Technical Specifications
Cable Type GYTA53
Fiber Type SM (Single Mode)
Application Long-distance communication, LAN
Recommended Installation Direct buried
Environment Outdoor
Temperature Range -40℃ to 70℃
Performance Data
Fiber Count Nominal Diameter (mm) Nominal Weight (kg/km) Max Fiber Per Tube Max No. of (Tubes+fillers) Allowable Tensile Load (N)
Short Term | Long Term		 Allowable Crush Resistance (N/100mm)
Short Term | Long Term
4 9.5 80 4 1 3000 | 1000 3000 | 1000
12 9.5 80 6 2 3000 | 1000 3000 | 1000
24 9.5 80 6 4 3000 | 1000 3000 | 1000
96 14.6 220 12 8 3000 | 1000 3000 | 1000
288 21.6 310 12 24 3000 | 1000 3000 | 1000
This datasheet can only be a reference, but not a supplement to the contract. Please contact sales for details.

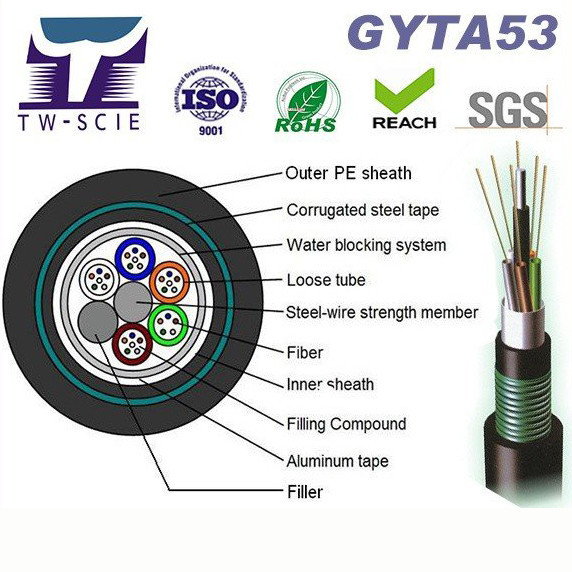

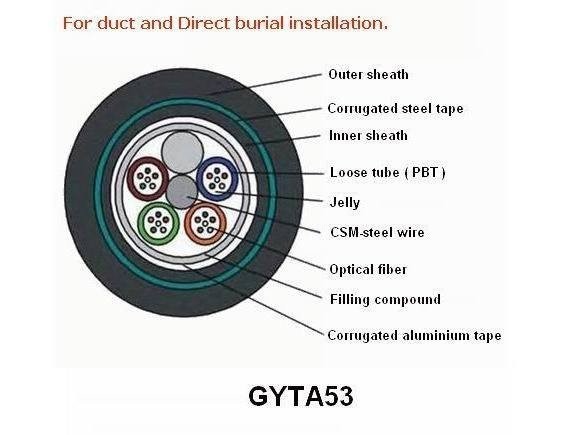

Product Structure and Images
24 Cores Outdoor Fiber Optic Cable OFC Armoured Cable GYTA53
Packing and Shipping

Cable is supplied in lengths as specified in PI or as required. Each length is shipped on a separate iron-wooden drum with minimum barrel diameter not less than 30 times the cable diameter.

Cable ends are sealed with plastic protection caps to prevent water penetration and remain easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.

24 Cores Outdoor Fiber Optic Cable OFC Armoured Cable GYTA53
