Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
500-3000RNB/KM
Payment Terms :
L/C,T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Application :
Telecommunication, Aerial, Duct, Telecom, Network
Fiber :
G652D, G657A1, G657A2
Fiber Count :
288 Fibers
Central Strength Member :
FRP Or Steel Wire
Armor :
Corrugated Steel Tape
Outer Jacket :
Black UV-and Moisture-resistant Polyethylene(PE)
Highlight :
GYTA53 Outdoor Armored Fiber Optic Cable, 288 Cores Outdoor Armored Fiber Optic Cable, Steel Tape Outdoor Armored Fiber Optic Cable
Name :
Outdoor Optical Cable
Description
288 Cores GYTA53 Outdoor Armored Fiber Optic Cable Corrugated steel tape Armor
Product Overview

Outdoor fiber optic cable GYTA53 direct buried stranded loose tube armored cable

Description

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

Features
  • Steel wire strength filler protect tube fiber. Steel tape armored
  • Good ultra violet radiation resistant property
  • Double sheath and Double armored
  • Good moisture resistance
Specifications
Cable Type GYTA53
Fiber Type SM
Application Long-distance communication, LAN
Recommended installation methods Direct buried
Environment Outdoor
Temperature Range -40℃ to 70℃
Fiber Count Nominal Diameter (mm) Nominal Weight (kg/km) Max Fiber Per Tube Max No. of (Tubes+fillers) Allowable Tensile Load (N) Short Term Allowable Tensile Load (N) Long Term Allowable Crush Resistance (N/100mm) Short Term Allowable Crush Resistance (N/100mm) Long Term
4 9.5 80 4 1 3000 1000 3000 1000
12 9.5 80 6 2 3000 1000 3000 1000
24 9.5 80 6 4 3000 1000 3000 1000
96 14.6 220 12 8 3000 1000 3000 1000
288 21.6 310 12 24 3000 1000 3000 1000

Note: This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.

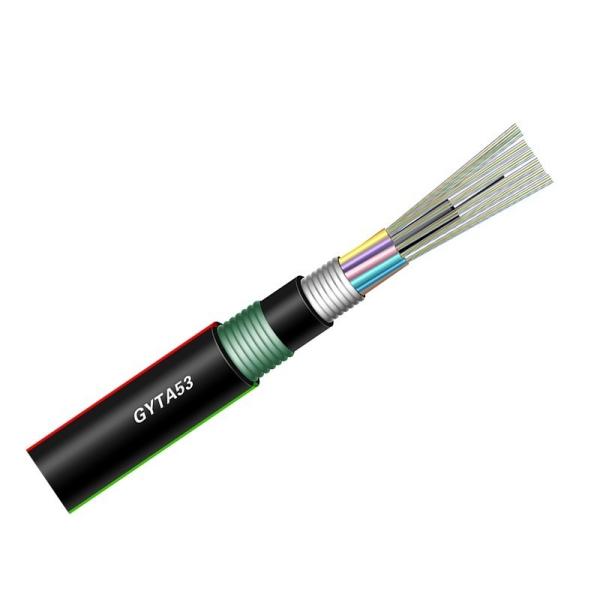

Structure and Product Pictures
288 Cores Fiber Optic Outdoor Cable GYTA53 Armored Fiber Cable Moisture Resistance
288 Cores Fiber Optic Outdoor Cable GYTA53 Armored Fiber Cable Moisture Resistance
Packing and Shipping

Cable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate iron-wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.

The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.

288 Cores Fiber Optic Outdoor Cable GYTA53 Armored Fiber Cable Moisture Resistance
