Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
MOQ :
20km
Price :
500-3000RNB/KM
Payment Terms :
L/C,T/T
Delivery Time :
It depends on the actual situation
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Application :
Telecommunication,Aerial,Duct,Telecom,Network
Fiber :
G652D, G657A1, G657A2
Fiber Count :
16 Fibers
Central Strength Member :
FRP
Armor :
Non-armored
Outer Jacket :
Black UV-and Moisture-resistant Polyethylene(PE)
Highlight :
GYFTY 16 Core Fiber Optic Cable, 16 Core Fiber Optic Cable Non - Armored, GYFTY 16 core ofc cable
Name :
Outdoor Optical Cable
Description
GYFTY 16 Core Loose Tube Non-Metallic & Non-Armored Outdoor Fiber Optic Cable
Product Description

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.

Key Features
  • Loose tube gel-filled construction for superior fiber protection
  • All Dielectric structure
  • UV and moisture-resistant design
Technical Specifications
Fiber Type G.652 G.655 50/125 µm 62.5/125 µm
Attenuation 850 nm <3.0 dB/km <3.3 dB/km
1300 nm <1.0 dB/km <1.0 dB/km
1310 nm <0.36 dB/km <0.40 dB/km
1550 nm <0.22 dB/km <0.23 dB/km
Bandwidth 850 nm >500 MHz-km >200 MHz-km
1300 nm >500 MHz-km >500 MHz-km
Numerical Aperture 0.200±0.015 NA 0.275±0.015 NA
Cable Cut-off Wavelength λcc <1260 nm <1450 nm
Fiber Count Nominal Diameter (mm) Nominal Weight (kg/km) Max Fiber Per Tube Max No. of (Tubes+fillers) Allowable Tensile Load (N) Allowable Crush Resistance (N/100mm)
Short Term Long Term Short Term Long Term
2~36 10.2 85 6 6 1500 600 1000 300
38~72 11.1 100 12 6 1500 600 1000 300
74~96 12.6 130 12 8 1500 600 1000 300
98~120 14.1 162 12 10 1500 600 1000 300
122~144 15.9 204 12 12 1800 600 1000 300

Note: This datasheet can only be a reference, but not a supplement to the contract. Please contact sales for details.

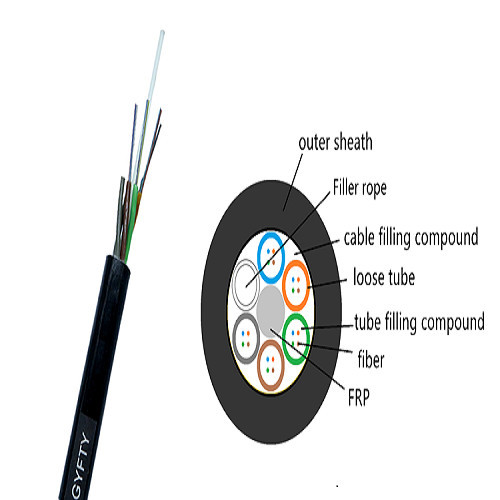

Structure and Product Images
GYFTY 16 Core Loose Tube Fiber Optic Cable Water Resistant Non Armored Fibre Cable
GYFTY 16 Core Loose Tube Fiber Optic Cable Water Resistant Non Armored Fibre Cable
Packing and Shipping

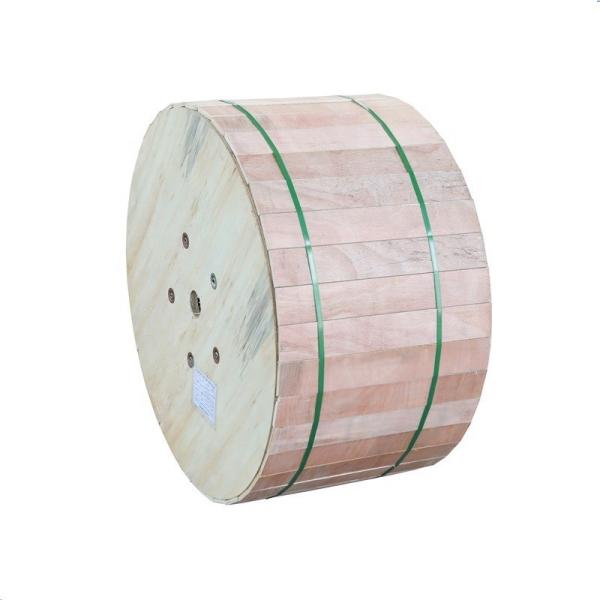

Cable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate iron-wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.

The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.

GYFTY 16 Core Loose Tube Fiber Optic Cable Water Resistant Non Armored Fibre Cable
