Custom Length 144 Cores Armored Fiber Optic Cable GYTS53 Direct Buried Fiber Cable
Custom Length 144 Cores Armored Fiber Optic Cable GYTS53 Direct Buried Fiber Cable
Custom Length 144 Cores Armored Fiber Optic Cable GYTS53 Direct Buried Fiber Cable
Custom Length 144 Cores Armored Fiber Optic Cable GYTS53 Direct Buried Fiber Cable
Custom Length 144 Cores Armored Fiber Optic Cable GYTS53 Direct Buried Fiber Cable
Custom Length 144 Cores Armored Fiber Optic Cable GYTS53 Direct Buried Fiber Cable
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
500-3000RNB/KM
Payment Terms :
L/C,T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Application :
Telecommunication, Aerial, Duct, Telecom, Network
Fiber :
G652D, G657A1, G657A2
Fiber Count :
144 Fibers
Central Strength Member :
FRP Or Steel Wire
Armor :
Corrugated Steel Tape
Outer Jacket :
Black UV-and Moisture-resistant Polyethylene(PE)
Highlight :
144 Cores Armored Fiber Optic Cable, GYTS53 Armored Fiber Optic Cables, GYTS53 armoured ofc cable
Name :
Outdoor Optical Cable
Description
144 Cores Armored Fiber Optic Cable GYTS53 Direct Buried Stranded Loose Tube Armored Cable
Product Overview

Outdoor fiber optic cable GYTS53 direct buried stranded loose tube armored cable designed for robust outdoor applications.

Construction Details
  • Available with single-mode G652, G655, G657 or multimode fibers in loose tubes made of high modulus plastic
  • Water-resistant filling compound for complete cable core protection
  • Steel wire central strength member, sometimes sheathed with polyethylene
  • Tubes and fillers stranded around strength member into compact circular cable core
  • Double sides chromium PSP with PE outer sheath
  • Compatible with single or double wire lashing installation methods
Applications
  • Outdoor distribution fiber optic cable systems
  • Suitable for aerial, duct pipeline, and direct buried installation using lashing method
  • Long distance and local area network (LAN) communication systems
Key Features
  • Excellent mechanical and temperature performance
  • High strength loose tube with hydrolysis resistance
  • Special tube filling compound for critical fiber protection
  • Superior crush resistance and flexibility
  • PE/LSZH sheath protects against ultraviolet radiation
  • 100% cable core filling for complete moisture protection
Technical Specifications
Cable Type GYTS53
Fiber Type SM
Application Long-distance communication, LAN
Recommended installation methods Direct buried
Environment Outdoor
Temperature Range -40℃ to 70℃
Fiber Count Nominal Diameter (mm) Nominal Weight (kg/km) Max Fiber Per Tube Max No. of (Tubes+fillers) Allowable Tensile Load (N)
Short Term | Long Term		 Allowable Crush Resistance (N/100mm)
Short Term | Long Term
4 9.5 80 4 1 3000 | 1000 3000 | 1000
12 9.5 80 6 2 3000 | 1000 3000 | 1000
24 9.5 80 6 4 3000 | 1000 3000 | 1000
96 14.6 220 12 8 3000 | 1000 3000 | 1000
288 21.6 310 12 24 3000 | 1000 3000 | 1000

This datasheet can only be a reference, but not a supplement to the contract. Please contact sales for details.

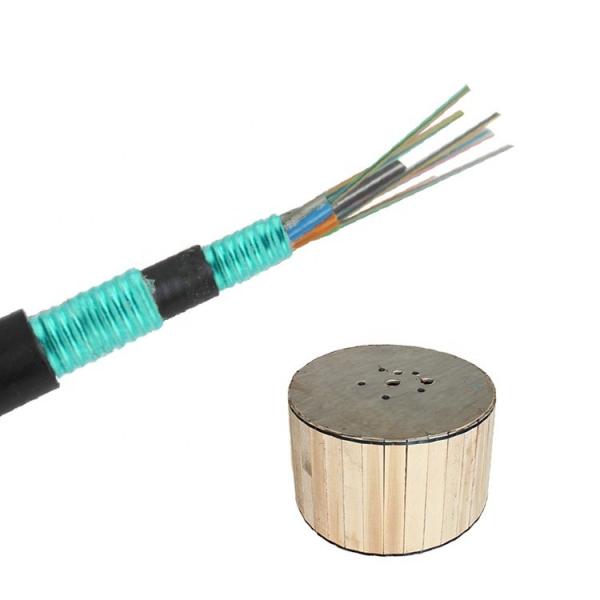

Cable Structure and Images
Custom Length 144 Cores Armored Fiber Optic Cable GYTS53 Direct Buried Fiber Cable Custom Length 144 Cores Armored Fiber Optic Cable GYTS53 Direct Buried Fiber Cable
Packing and Shipping

Cable is supplied in lengths as specified in PI or as required. Each length is shipped on a separate iron-wooden drum with minimum barrel diameter not less than 30 times the cable diameter.

Cable ends are sealed with plastic protection caps to prevent water penetration and remain easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.

Custom Length 144 Cores Armored Fiber Optic Cable GYTS53 Direct Buried Fiber Cable
