4 Fibers Armored Fiber Optic Cable GYTS53 Direct Buried Stranded Loose Tube Armored Cable
4 Fibers Armored Fiber Optic Cable GYTS53 Direct Buried Stranded Loose Tube Armored Cable
4 Fibers Armored Fiber Optic Cable GYTS53 Direct Buried Stranded Loose Tube Armored Cable
4 Fibers Armored Fiber Optic Cable GYTS53 Direct Buried Stranded Loose Tube Armored Cable
4 Fibers Armored Fiber Optic Cable GYTS53 Direct Buried Stranded Loose Tube Armored Cable
4 Fibers Armored Fiber Optic Cable GYTS53 Direct Buried Stranded Loose Tube Armored Cable
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
500-3000RNB/KM
Payment Terms :
L/C,T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Application :
Telecommunication, Aerial, Duct, Telecom, Network
Fiber :
G652D, G657A1, G657A2
Fiber Count :
4 Fibers
Central Strength Member :
FRP Or Steel Wire
Armor :
Corrugated Steel Tape
Outer Jacket :
Black UV-and Moisture-resistant Polyethylene(PE)
Highlight :
4 Fibers Armored Fiber Optic Cable, Armored Fiber Optic Cable GYTS53, GYTS53 4 fiber optic cable
Name :
Outdoor Optical Cable
Description
4 Fibers Armored Fiber Optic Cable GYTS53 Direct Buried Stranded Loose Tube Armored Cable
Product Overview

Outdoor fiber optic cable GYTS53 direct buried stranded loose tube armored cable designed for robust outdoor applications with superior protection and performance.

Construction Details
  • Available in single-mode G652, G655, G657 or multimode configurations with loose tube design
  • High modulus plastic loose tubes filled with water-resistant filling compound
  • Steel wire central metallic strength member, sometimes sheathed with polyethylene
  • Tubes and fillers stranded around strength member into compact circular cable core
  • Double sides chromium PSP with PE outer sheath
  • Compatible with single or double wire lashing installation methods
Applications
  • Outdoor distribution fiber optic cable systems
  • Suitable for aerial, duct pipeline, and direct buried installation using lashing method
  • Long distance and local area network (LAN) communication systems
Key Features
  • Excellent mechanical and temperature performance
  • High strength loose tube resistant to hydrolysis
  • Special tube filling compound for critical fiber protection
  • Superior crush resistance and flexibility
  • PE/LSZH sheath protects against ultraviolet radiation
  • 100% cable core filling for maximum protection
Technical Specifications
Parameter Specification
Cable Type GYTS53
Fiber Type SM (Single Mode)
Application Long-distance communication, LAN
Recommended Installation Direct buried
Environment Outdoor
Temperature Range -40℃ to 70℃
Performance Specifications
Fiber Count Nominal Diameter (mm) Nominal Weight (kg/km) Max Fiber Per Tube Max No. of (Tubes+fillers) Allowable Tensile Load (N)
Short/Long Term		 Allowable Crush Resistance (N/100mm)
Short/Long Term
4 9.5 80 4 1 3000 / 1000 3000 / 1000
12 9.5 80 6 2 3000 / 1000 3000 / 1000
24 9.5 80 6 4 3000 / 1000 3000 / 1000
96 14.6 220 12 8 3000 / 1000 3000 / 1000
288 21.6 310 12 24 3000 / 1000 3000 / 1000
This datasheet can only be a reference, but not a supplement to the contract. Please contact sales for detailed specifications.

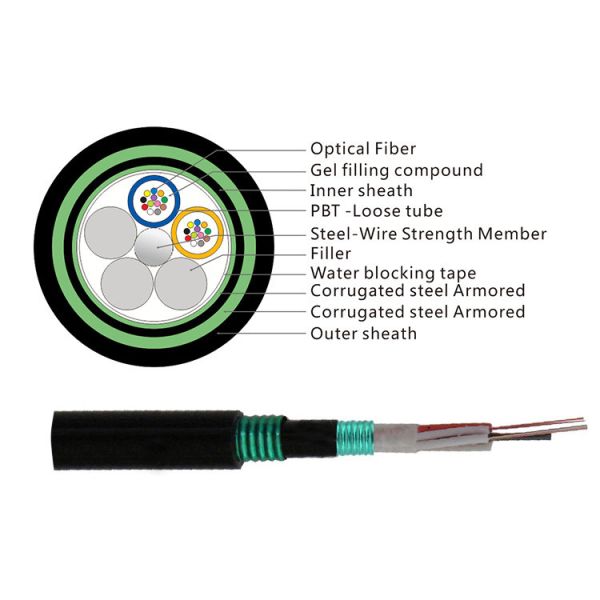

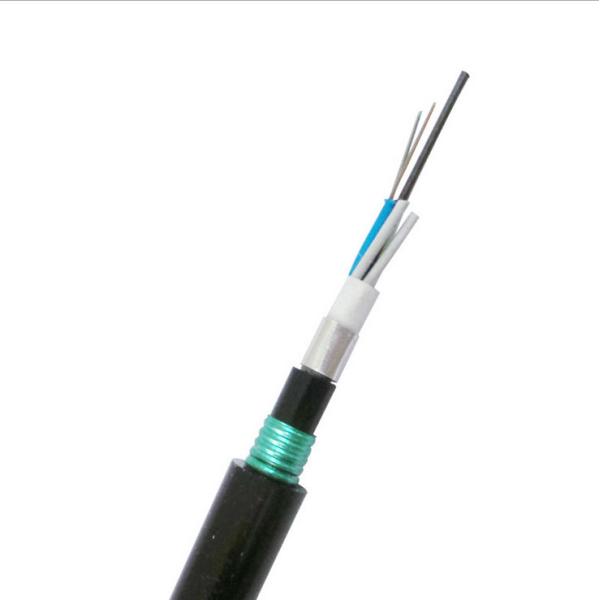

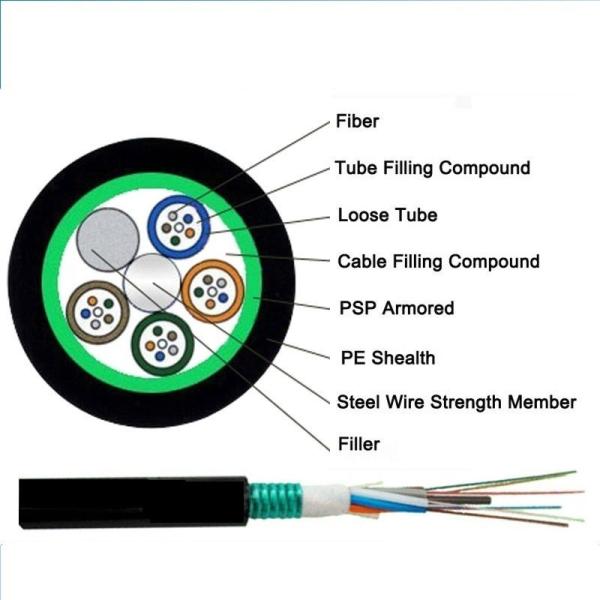

Cable Structure and Images
4 Fibers Armored Fiber Optic Cable GYTS53 Direct Buried Stranded Loose Tube Armored Cable 4 Fibers Armored Fiber Optic Cable GYTS53 Direct Buried Stranded Loose Tube Armored Cable
Packing and Shipping

Cable is supplied in lengths as specified in PI or as required. Each length is shipped on a separate iron-wooden drum with minimum barrel diameter not less than 30 times the cable diameter.

Cable ends are sealed with plastic protection caps to prevent water penetration and remain easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.

4 Fibers Armored Fiber Optic Cable GYTS53 Direct Buried Stranded Loose Tube Armored Cable
