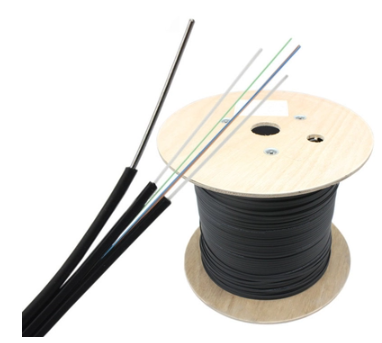

Figure 8 FTTH Drop Cable 1 Core 2 Core 4 Core G652D Fiber Wire
Figure 8 FTTH Drop Cable 1 Core 2 Core 4 Core G652D Fiber Wire
Figure 8 FTTH Drop Cable 1 Core 2 Core 4 Core G652D Fiber Wire
Figure 8 FTTH Drop Cable 1 Core 2 Core 4 Core G652D Fiber Wire
Specifications
Brand Name :
MingTong
Model Number :
GJYXCH
Certification :
ISO
Place of Origin :
Dong Guan China
Price :
300-2000RNB/KM
Payment Terms :
L/C,T/T
Supply Ability :
200km/Day
Delivery Time :
It depends on the actual situation.
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Product Name :
FTTH Drop Cable
Fiber Type :
Single-Mode G657A1/G652D
Number Of Fiber :
2
Construction :
Steel Messenger
Outer Jacket Materail :
LSZH
Tensile Strength :
100/200N
Highlight :
G657A1 FTTH Fiber Optic Cable, Outdoor FTTH Fiber Optic Cable, FTTX FTTH Drop Cable
Self-Supporting Strength Member :
3steel Wire
Color :
Black Or Grey
Description
Figure 8 FTTH Drop Cable 1 Core 2 Core 4 Core G652D Fiber Wire
Product Overview
Figure 8 FTTH Drop Cable 1 Core 2 Core 4 Core G652D Fiber Wire

Outdoor 1, 2, and 4 core fiber optic single core G657A1 FTTH fiber optic cable. The optical fiber unit is positioned in the center with two parallel FRP or steel wires placed at the sides. Steel wire or FRP serves as additional strength members, and the cable is completed with a black or color LSZH sheath.

Key Features
  • Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission properties
  • Two parallel steel wire or FRP strength members ensure superior crush resistance to protect the fiber
  • Single steel wire or messengers as additional strength members ensure excellent tensile strength performance
  • Simple structure, light weight, and high practicability
  • Novel flute design for easy stripping and splicing, simplifying installation and maintenance
  • Low smoke, zero halogen, and flame retardant sheath
Applications

FTTH FTTB FTTX Network

Structural Specifications
Parameter Unit Value
Fiber count Fibers 4
Diameter mm 5.0×2.0
Weight Kg/km Approx. 21
Sheath color Black
Sheath material LSZH
O.D of steel wire mm 1.0±0.05mm
Strength member mm 0.5mm FRP
Tensile strength N 1500
Crush Resistance N 2200
Bending Radius - Dynamic 30×Cable Diameter
Bending Radius - Static 15×Cable Diameter
Operating Temperature ℃ -40 to +70
Technical Specifications - G.657A1
Category Description Specifications
Optical Specifications Attenuation @1310-1625nm ≤0.36dB/km
Attenuation @1383±3nm ≤0.36dB/km
Attenuation @1550nm ≤0.22dB/km
Attenuation discontinuity ≤0.05 dB
Attenuation vs. Wavelength @1285~1330nm ≤0.05 dB/km
Attenuation vs. Wavelength @1525~1575nm ≤0.05 dB/km
Zero Dispersion Wavelength 1300~1324nm
Zero Dispersion Slope ≤0.092ps/(nm².km)
Dispersion @1310nm ≤3.5 ps/nm.km
Dispersion @1550nm ≤18 ps/nm.km
Polarization Mode Dispersion (PMD) ≤0.2ps/km¹/²
Cable Cutoff Wavelength (λcc) ≤1260nm
Effective Group Index of Refraction @1310nm 1.4675
Effective Group Index of Refraction @1550nm 1.4681
Macro bend loss (30mm radius, 100turns) 1625nm ≤0.1 dB
Geometric Specifications Mode Field Diameter @1310nm 9.2±0.6μm
Mode Field Diameter @1550nm 10.4±0.8μm
Cladding Diameter 125±1μm
Cladding Non-Circularity ≤1.0%
Coating Diameter 245±7μm
Coating/Cladding Concentricity Error ≤8μm
Core/Cladding Concentricity Error ≤0.8μm
Mechanical Specifications Proof Test level ≥1.0%
Fiber Curl Radius ≥4.0m
Peak Coating Strip Force 1.3~8.9N

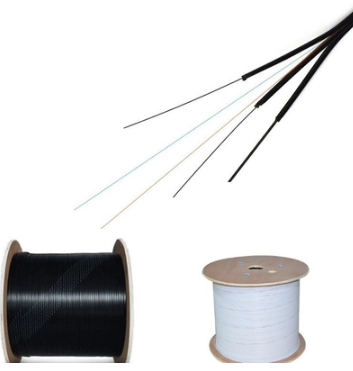

Product Images
Figure 8 FTTH Drop Cable 1 Core 2 Core 4 Core G652D Fiber Wire Figure 8 FTTH Drop Cable 1 Core 2 Core 4 Core G652D Fiber Wire Figure 8 FTTH Drop Cable 1 Core 2 Core 4 Core G652D Fiber Wire
