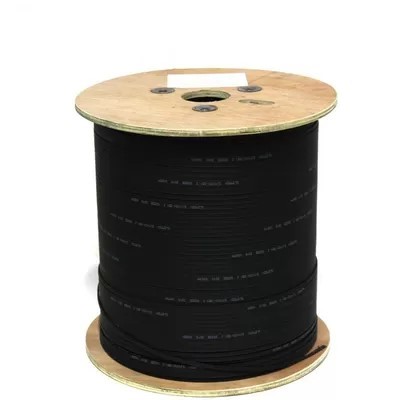

OEM 4 Core FTTH Drop Fiber Optic Cable G652D LSZH FRP Kfrp IEC 60794 Standard
OEM 4 Core FTTH Drop Fiber Optic Cable G652D LSZH FRP Kfrp IEC 60794 Standard
OEM 4 Core FTTH Drop Fiber Optic Cable G652D LSZH FRP Kfrp IEC 60794 Standard
OEM 4 Core FTTH Drop Fiber Optic Cable G652D LSZH FRP Kfrp IEC 60794 Standard
OEM 4 Core FTTH Drop Fiber Optic Cable G652D LSZH FRP Kfrp IEC 60794 Standard
OEM 4 Core FTTH Drop Fiber Optic Cable G652D LSZH FRP Kfrp IEC 60794 Standard
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
300-2000RNB/KM
Payment Terms :
L/C,T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Model NO. :
FTTH Drop Cable
Outer Sheath Color :
Black
Strengthen Member :
Steel Or FRP
Fiber Counts :
Fiber Counts
Certificate :
Anatel,ROHS,CE,FCC
Outer Jacket Materail :
LSZH
Weight :
26kg
Highlight :
Kfrp FTTH Drop Cable, 4 Core FTTH Drop Cable, LSZH G652D LSZH Cable
Description
4 Core G652D LSZH FRP Kfrp FTTH Drop Cable 1km Per Drum IEC 60794 Standard
OEM 4 Core FTTH Drop Fiber Optic Cable G652D LSZH FRP Kfrp IEC 60794 Standard

Outdoor Fiber Optic Cable 1 2 4 Core G652D LSZH FRP Kfrp FTTH Drop Cable 1km Per Drum

The FTTH drop cable features a central positioning design with two parallel fiber reinforced plastics (FRP) placed at the sides. A steel wire serves as an additional strength member. The cable is completed with a black or color PVC/LSZH sheath. The typical self-supporting bow-type drop fiber optic cable consists of GJXFH/GJXH cable and an additional strength member (steel wire or stranded steel wire).

Characteristics
  • Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission properties
  • Two parallel FRP/steel strength members ensure good performance of crush resistance to protect the fiber
  • Novel groove design for easy strip and splice, simplified installation and maintenance, higher tensile strength
  • Single steel wire as the additional strength member ensures good performance of tensile strength
  • Simple structure, lightweight and high practicability
  • Novel flute design for easy strip and splice, simplifying installation and maintenance
  • Low smoke, zero-halogen and flame retardant sheath, environment-friendly and safe
Applications
  • High-performance optical network operating
  • High-speed optical routes in buildings (FTTH)
  • Suitable as cable extending from outdoor (as aerial cable) to indoor
Standards
Comply with standard YD/T 1997-2009, ICEA-596, GR-409, IEC 60794
Structure Specifications
Structure Unit Parameter
Fiber count Fibers 2
Diameter mm 5.0*2.0
Weight Kg/km Approx. 21
Sheath color Black
Sheath material LSZH
O.D of steel wire mm 1.0±0.05mm
Strength member mm 0.5mm FRP
Tensile strength N 1500
Crush Resistance N 2200
Bending Radius - Dynamic 30×Cable Diameter
Bending Radius - Static 15×Cable Diameter
Operating Temperature ℃ -40 to +70
Test Datasheet - G.657A1
Category Description Specifications
Optical Specifications Attenuation @1310-1625nm ≤0.36dB/km
Attenuation @1383±3nm ≤0.36dB/km
Attenuation @1550nm ≤0.22dB/km
Attenuation discontinuity ≤0.05 dB
Geometric Specifications Mode Field Diameter @1310nm 9.2±0.6μm
Mechanical Specifications Proof Test level ≥1.0%
OEM 4 Core FTTH Drop Fiber Optic Cable G652D LSZH FRP Kfrp IEC 60794 Standard OEM 4 Core FTTH Drop Fiber Optic Cable G652D LSZH FRP Kfrp IEC 60794 Standard OEM 4 Core FTTH Drop Fiber Optic Cable G652D LSZH FRP Kfrp IEC 60794 Standard
